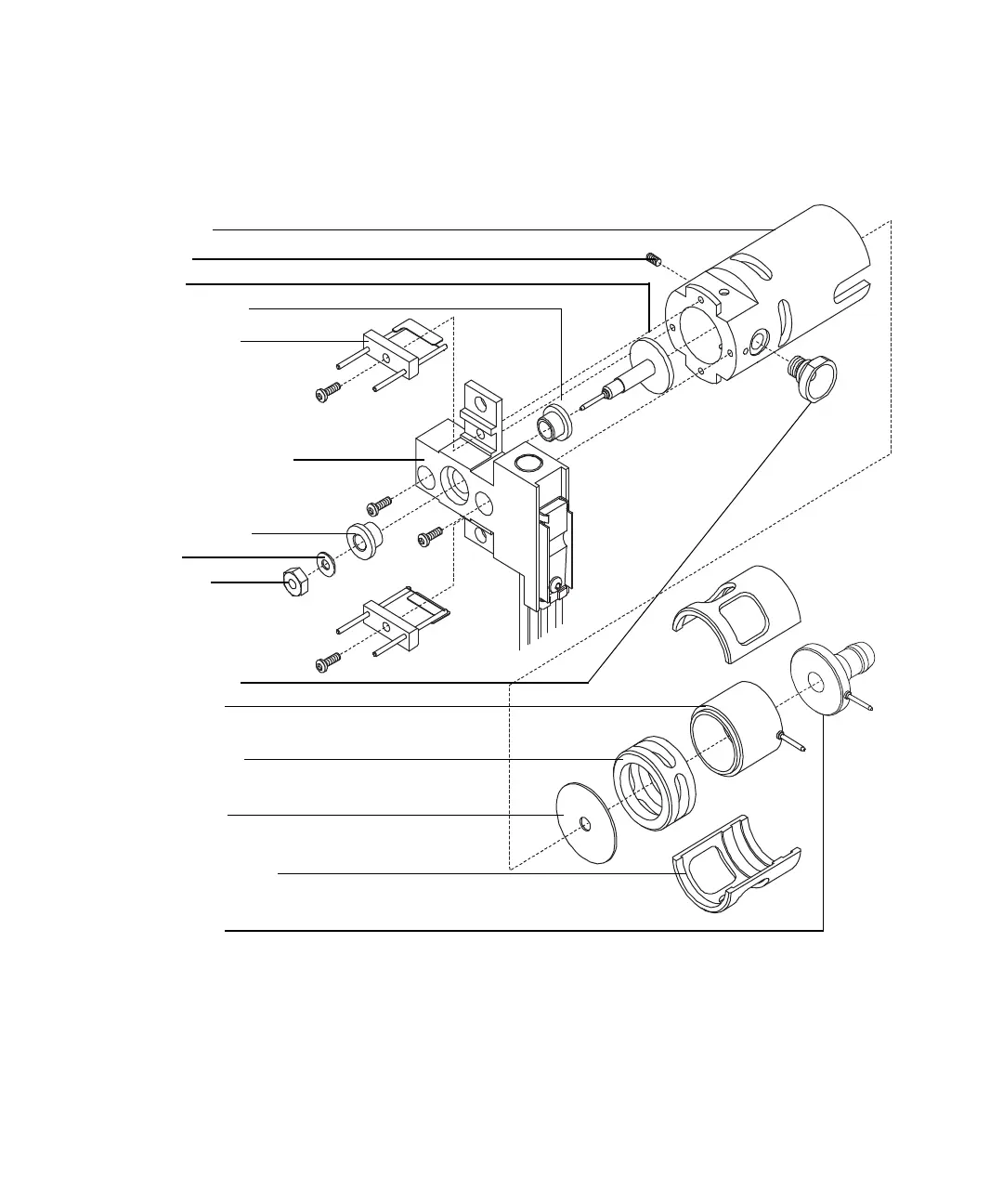

Figure 28 Assembling the ion source
Interface socket
Source body
Setscrew
Repeller
Repeller insulator
Filament (1 of 2)
Source heater assembly
Repeller insulator
Washer
Repeller nut
(do not over-tighten)
Ion focus lens
Drawout cylinder
Drawout plate
Lens insulator (1 of 2)
Entrance lens
