Operating in Electron Impact (EI) Mode 3
5975 Series MSD Operation Manual for MassHunter 61

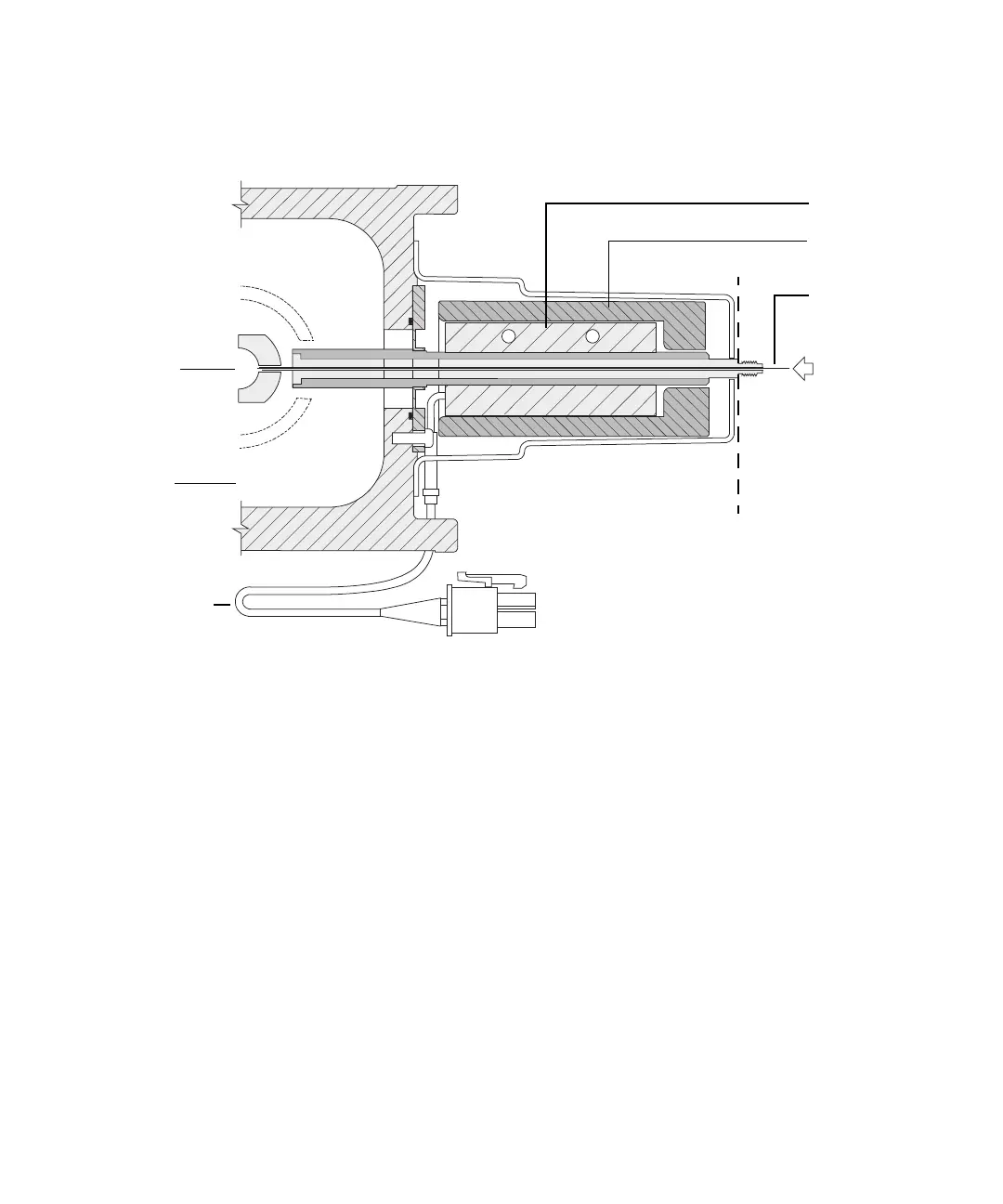

Figure 12 The EI GC/MSD interface
Ionization
chamber
Analyzer
chamber
Heater/Sensor
assembly
MSD GC oven
Heater sleeve
Insulation
Column
Column end protrudes 1 to 2 mm into the ionization chamber.
