6 General Maintenance 
156 5977B Series MSD Operating Manual
To Connect/Disconnect Wiring to the EI HES
Materials needed
• Gloves, clean, lint-free (Large 8650-0030) (Small 8650-0029)
• Pliers, long-nose (8710-1094)
• Tweezers (8710-2460)
Procedure
1 Use tweezers or needle nose pliers to connect/disconnect the ceramic board
wire leads (red, white, black, and gray) at the source connectors. (See
Figure 48.)



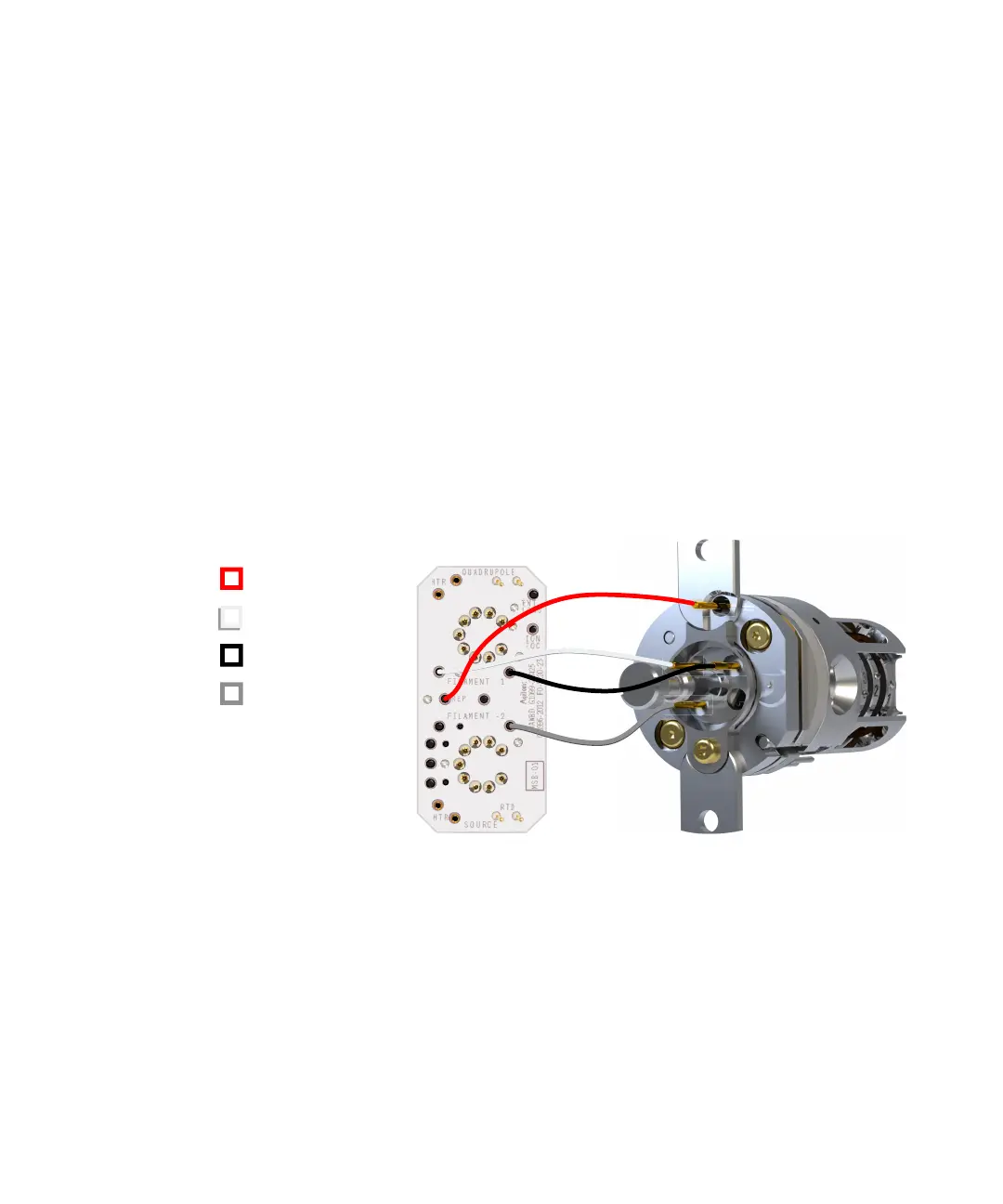

Figure 48 Wiring between the ceramic source board and the EI HES
Repeller
Filament common
Filament 1
Filament 2
Ceramic source board
