General Maintenance 6
5977B Series MSD Operating Manual 193
To Install the EI XTR, SS, or Inert Source
Materials needed
• Gloves, clean, lint-free
• Large (8650-0030)
• Small (8650-0029)
• Pliers, long-nose (8710-1094)
Procedure
1 Slide the ion source into the source radiator. (See Figure 62.)
2 Insert and hand tighten the source thumbscrews. Do not overtighten the
thumbscrews. (See Figure 62.)
3 Connect the ion source wires. (See “To Connect/Disconnect Wiring from the
EI XTR, SS, and Inert Sources” on page 173.)
4 Close the analyzer chamber. (See “To Close the Analyzer Chamber” on
page 196.)

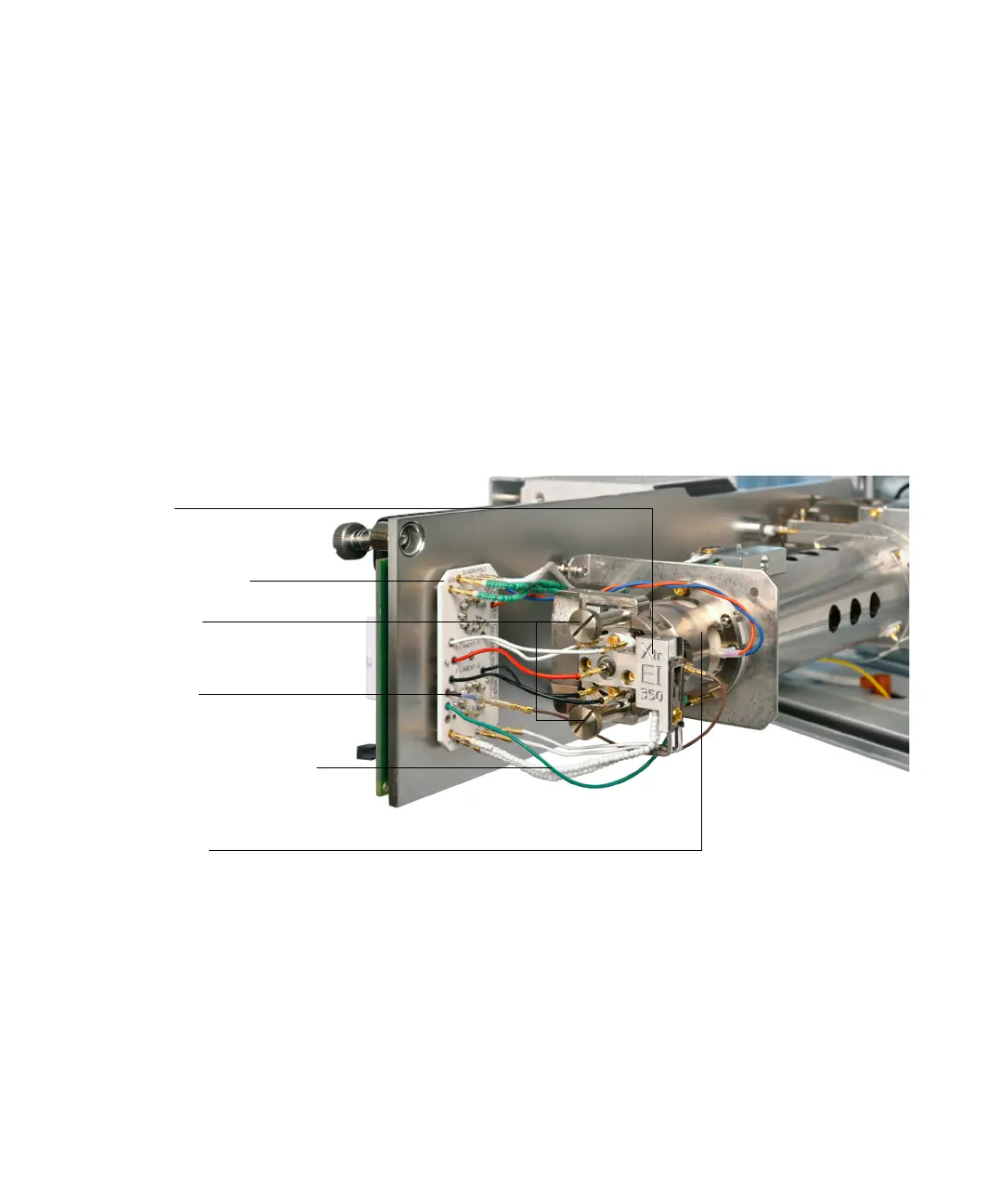

Figure 62 Installing the EI source
Ceramic source board
Ion source
Thumbscrews
Source heater and temperature
sensor wires
Source radiator
Extractor wire
