Instrument Installation 1
Step 2. Prepare to install the system
Agilent 6400 Series Triple Quad LC/MS System Installation Guide 11

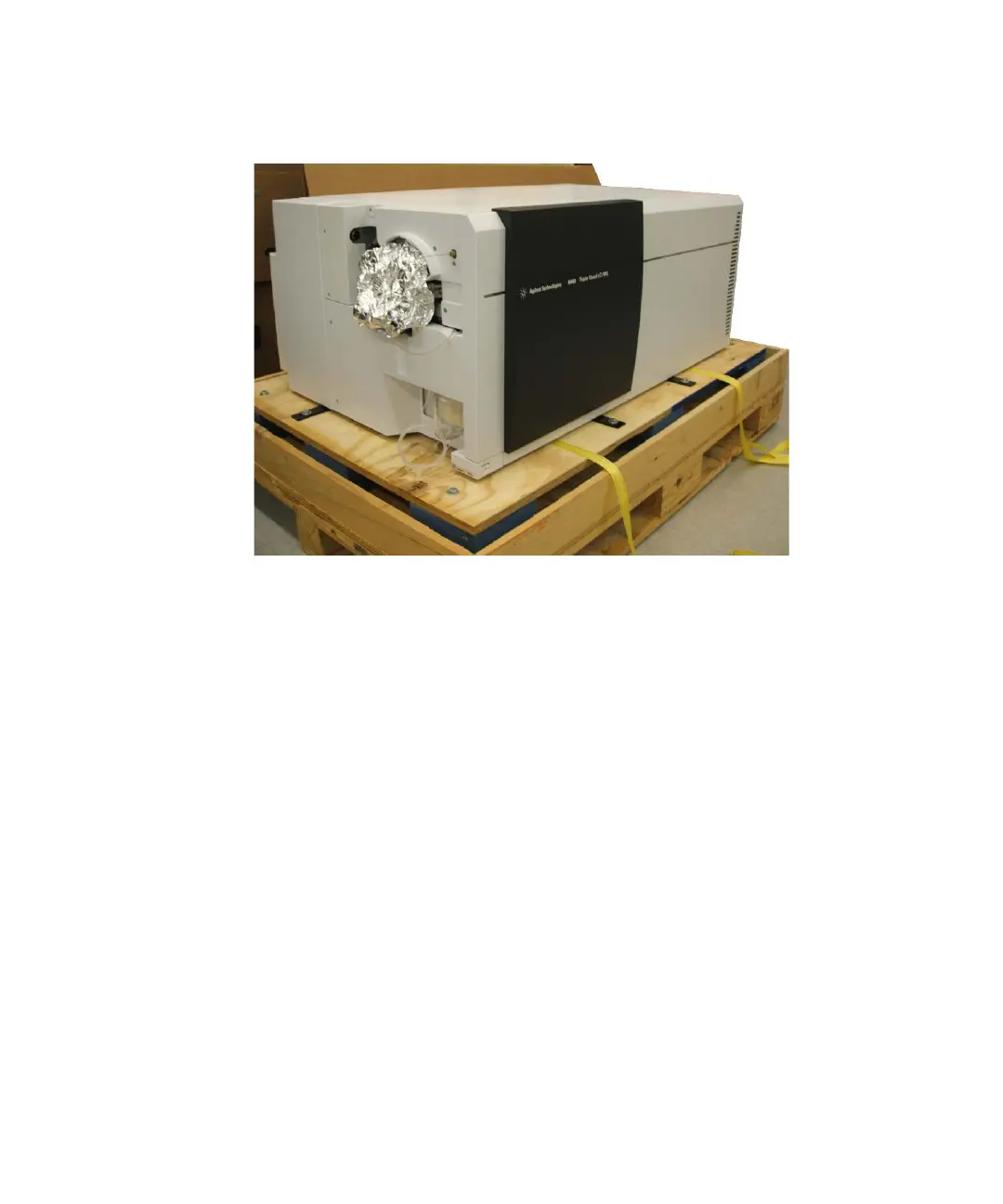

Figure 5 Instrument unpacked on shipping pallet (6460 pictured)
c Remove the front, top, right, back-left, and lower front-left cosmetic
covers so that you can remove the shipping brackets. You do not need to
remove the upper front-left cover.
To remove the top cover, remove the two screws at the back side of the
top cover that secure the back of the top cover to the instrument chassis
(see Figure 6). These screws are only needed when shipping the
instrument. You do not need to reinstall the screws when you reinstall
the top cover.
