Instrument Installation 1
Step 3. Set up the Agilent MS40+ pumps
Agilent 6400 Series Triple Quad LC/MS System Installation Guide 15
1 Unpack the Tygon 1/2-inch I.D. exhaust tubing (p/n G1946-80077) and
Pump oil pan (p/n G1946-00034) from the shipping kit.
2 Remove the Agilent MS40+ foreline pump from its shipping container.

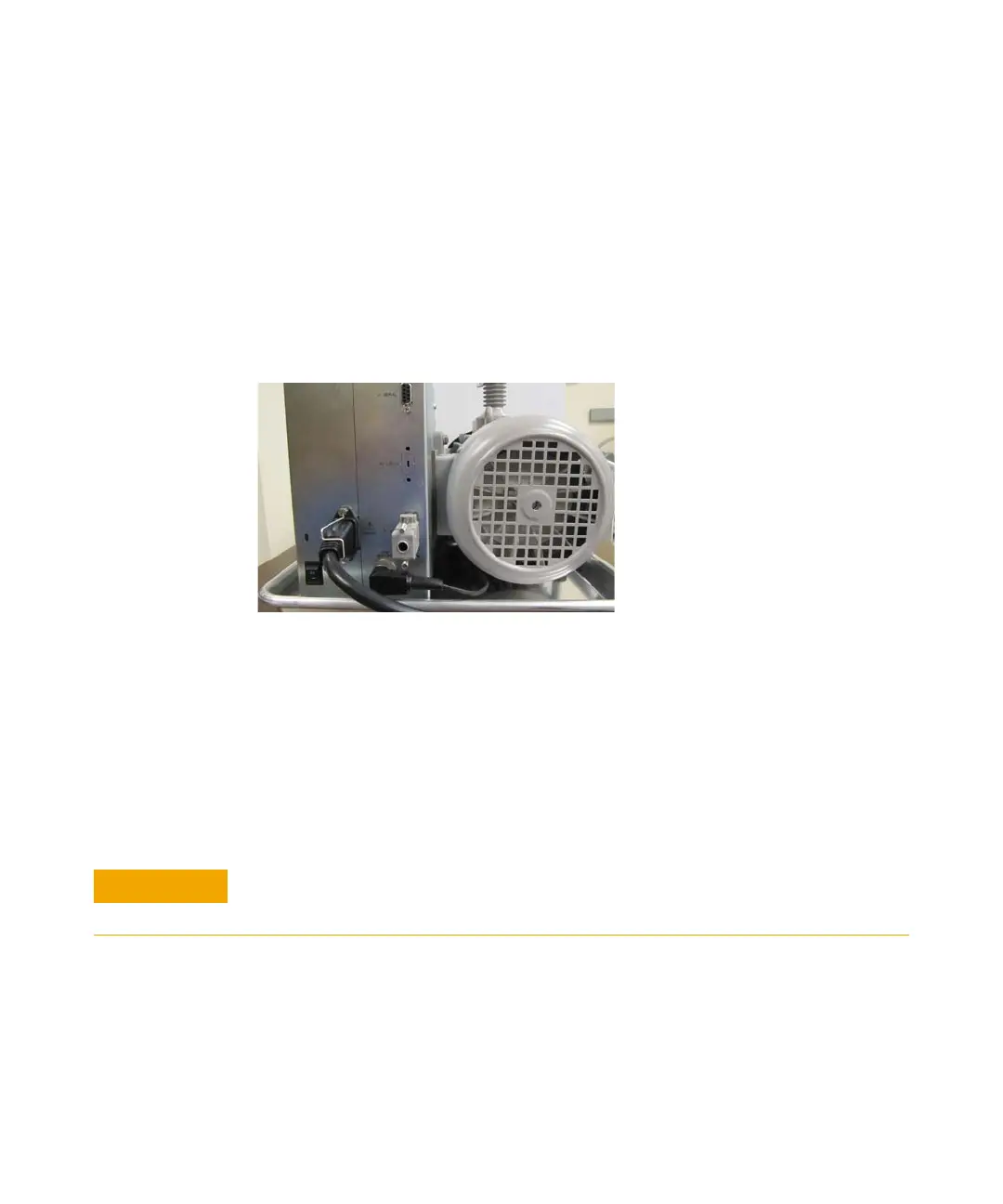

3 Set the Agilent MS40+ foreline pump into the Pump oil pan (p/n
G1946-00034).
The pan is used to catch any small amounts of oil that can seep out of the
pump. The pan can also hold all of the oil in the pump in case of a
catastrophic seal failure.
4 Cut an appropriate length of the Tygon 1/2-inch I.D. exhaust tubing (p/n
G1946-80077).
5 Find the NW25 to 5/8-inch tube elbow (p/n G1960-20003) and the O-ring
(p/n 0905-1592). Put the O-ring on the exhaust adaptor.
6 Locate one NW20/25 hinged clamp with wing nut (p/n 0100-1398), open the
swing clamp, and use it to clamp the exhaust adaptor onto the oil mist
filter. Connect the Tygon 1/2-inch I.D. exhaust tubing (p/n G1946-80077) to
the exhaust adaptor.
7 Add the entire 1-liter bottle of SW60 pump oil to the foreline pump.
8 For 6420: Plug the pump power cord (p/n 8121-1753) into the power inlet of
the foreline pump. Secure the pump power cord in place using the lock
mechanism. Plug the other end into the LC/MS AC board port labeled
Foreline Pump.
Foreline pumps are shipped dry. Oil must be used for proper operation. Failure to add
oil before a system is pumped down damages foreline pumps.
