1 Instrument Installation
Step 4. Connect the Triple Quadrupole LC/MS
24 Agilent 6400 Series Triple Quad LC/MS System Installation Guide

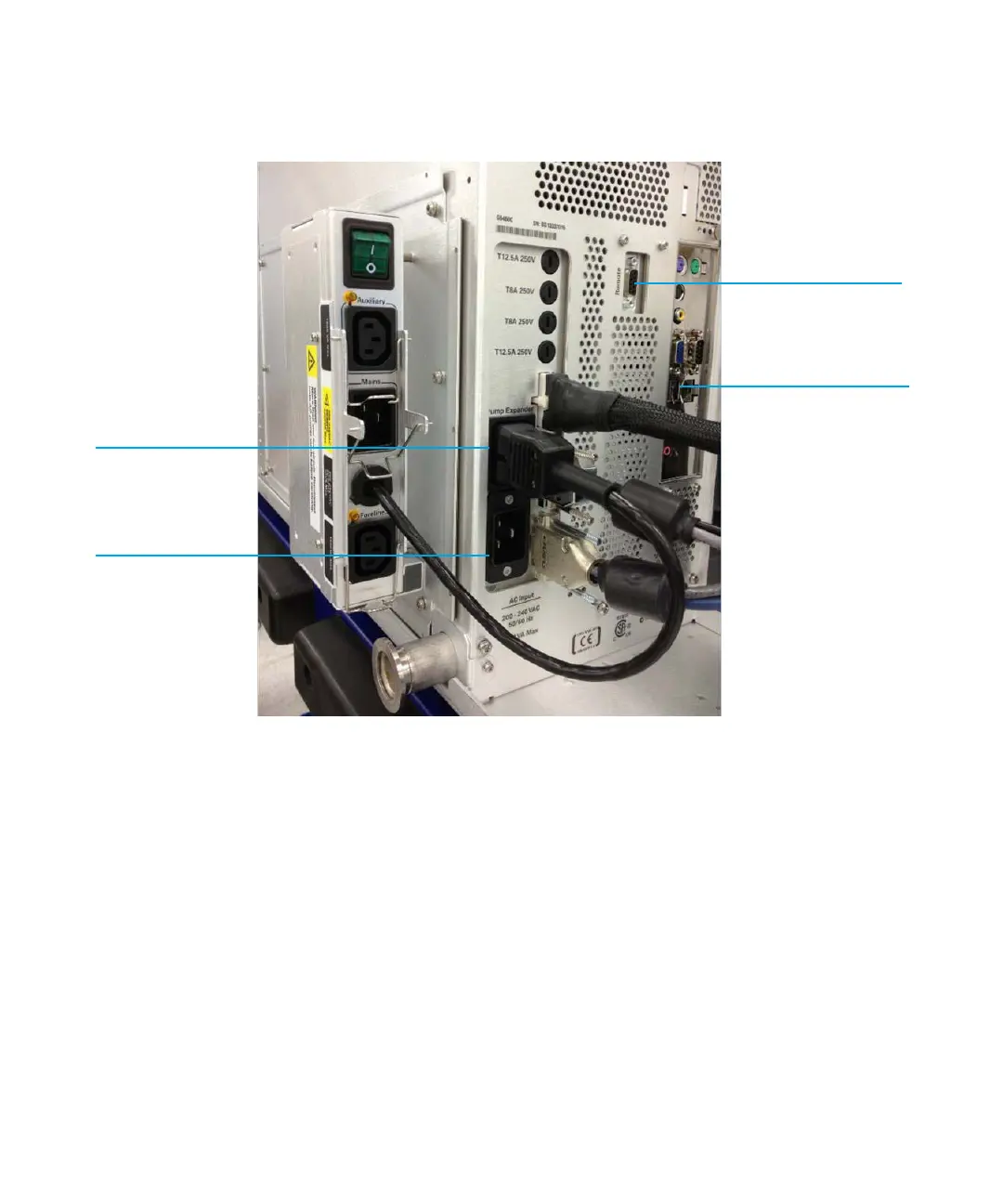

Figure 17 Power and electrical connection at back left side of Triple Quadrupole LC/MS
(6460C). If two LAN connections exist, make sure to use the upper connection. See
Figure 16.
Remote start connection
LAN connection from
HUB/switch
AC line power
connection
Foreline pump power
cord connection/
Pump Expander
Assembly control
connection
