1 Instrument Installation
Step 4. Connect the Triple Quadrupole LC/MS
26 Agilent 6400 Series Triple Quad LC/MS System Installation Guide
11 Connect the remote start cable to its connector on the back left side of the
Triple Quadrupole LC/MS. See Figure 13 through Figure 18.
12 Connect the foreline pump power cord into the foreline pump connector on
the back left side of the Triple Quadrupole LC/MS. See Figure 13 through
Figure 18.
13 Verify the front power switch is in the OFF position.
14 Plug the Triple Quadrupole LC/MS power cord into the Triple Quadrupole
LC/MS power connector on the Triple Quadrupole LC/MS and the other
end of the Triple Quadrupole LC/MS power cord into the wall outlet. See
Figure 13 through Figure 18.
15 For 6460C/6470/6490/6495: Plug the Pump Expander Assembly power cord
into the wall outlet.

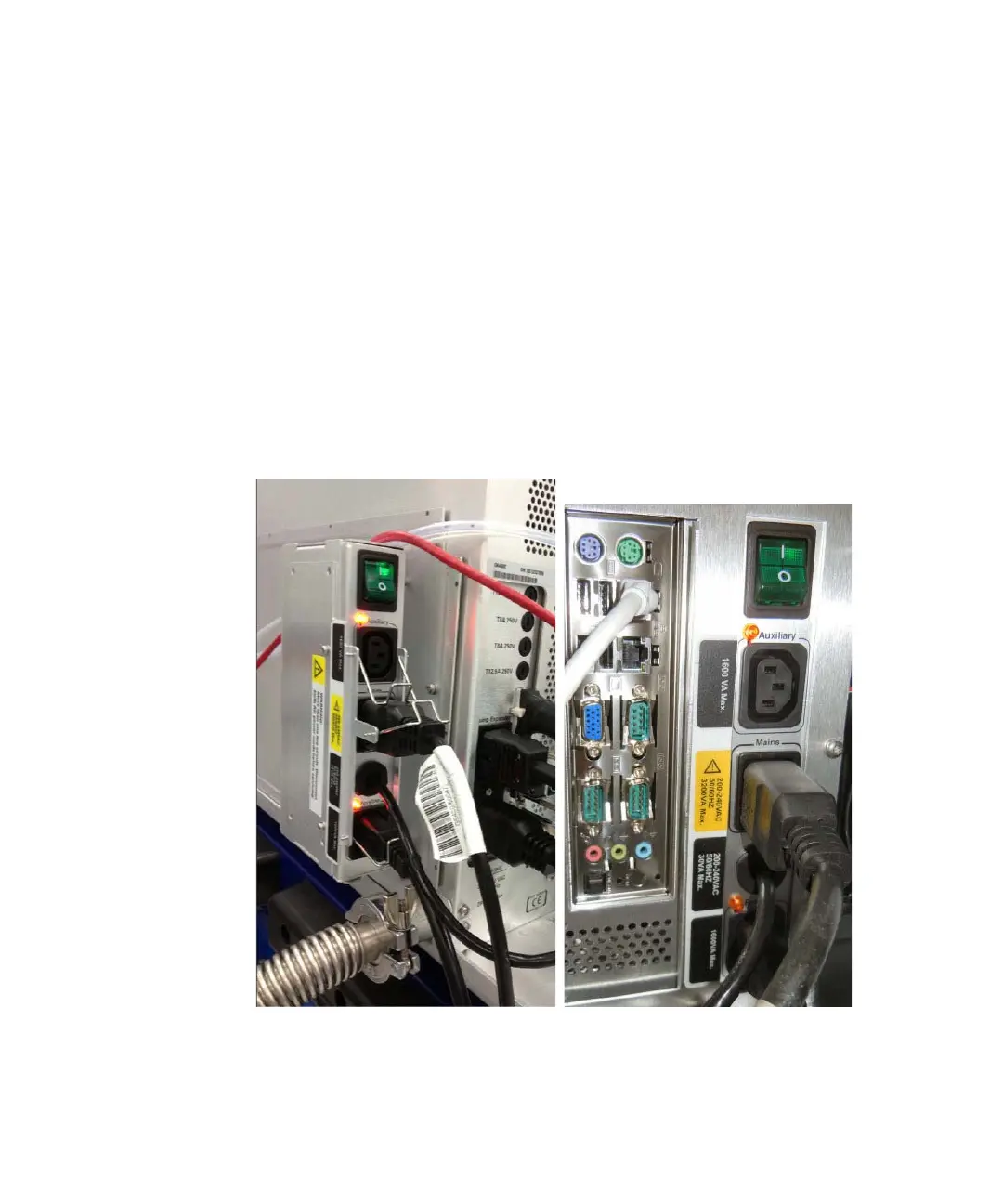

Figure 19 Pump Expander Assembly box for 6460C (left) and 6470/6490/6495.
