Software Installation and Configuration 2
Step 11. Configure the instrument
Agilent 6400 Series Triple Quad LC/MS System Installation Guide 43
4 In the Instrument Configuration dialog box:
a If you want to change the name of the instrument, type a new name for
Instrument name.
b Mark the Mass Spectrometer check box.
c Click the option for your LC/MS instrument.
d Mark the Agilent LC (1100/1120/1200/1220/1260/1290)/CE check box.
e Click Agilent LC System Access.
f If you need to set or change special options, click Device Config and
configure the LC system.
g Click OK.

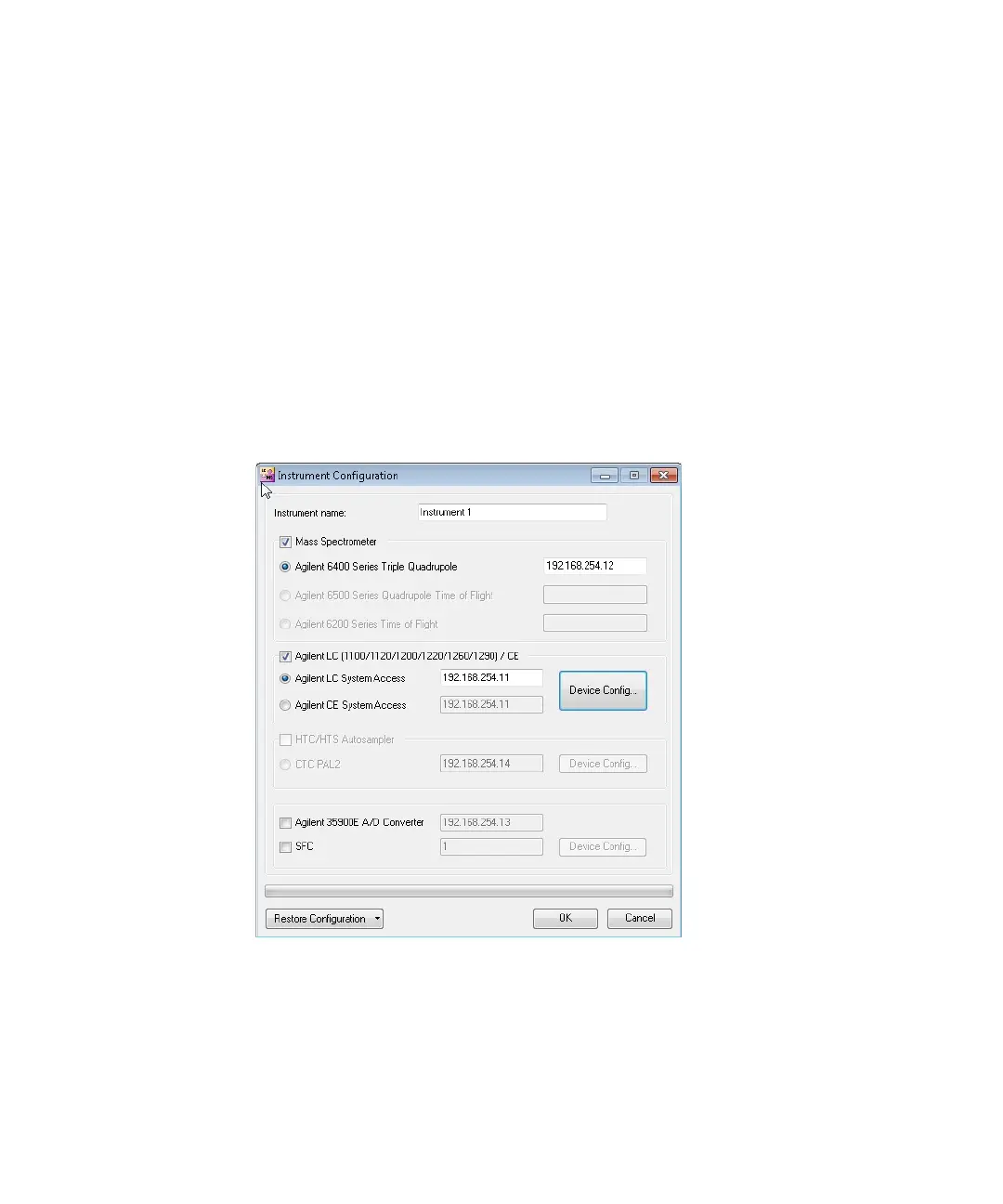

Figure 26 Instrument Configuration Dialog Box
5 When configuration is completed, click OK.
