Installation
Step 13. Connecting cables

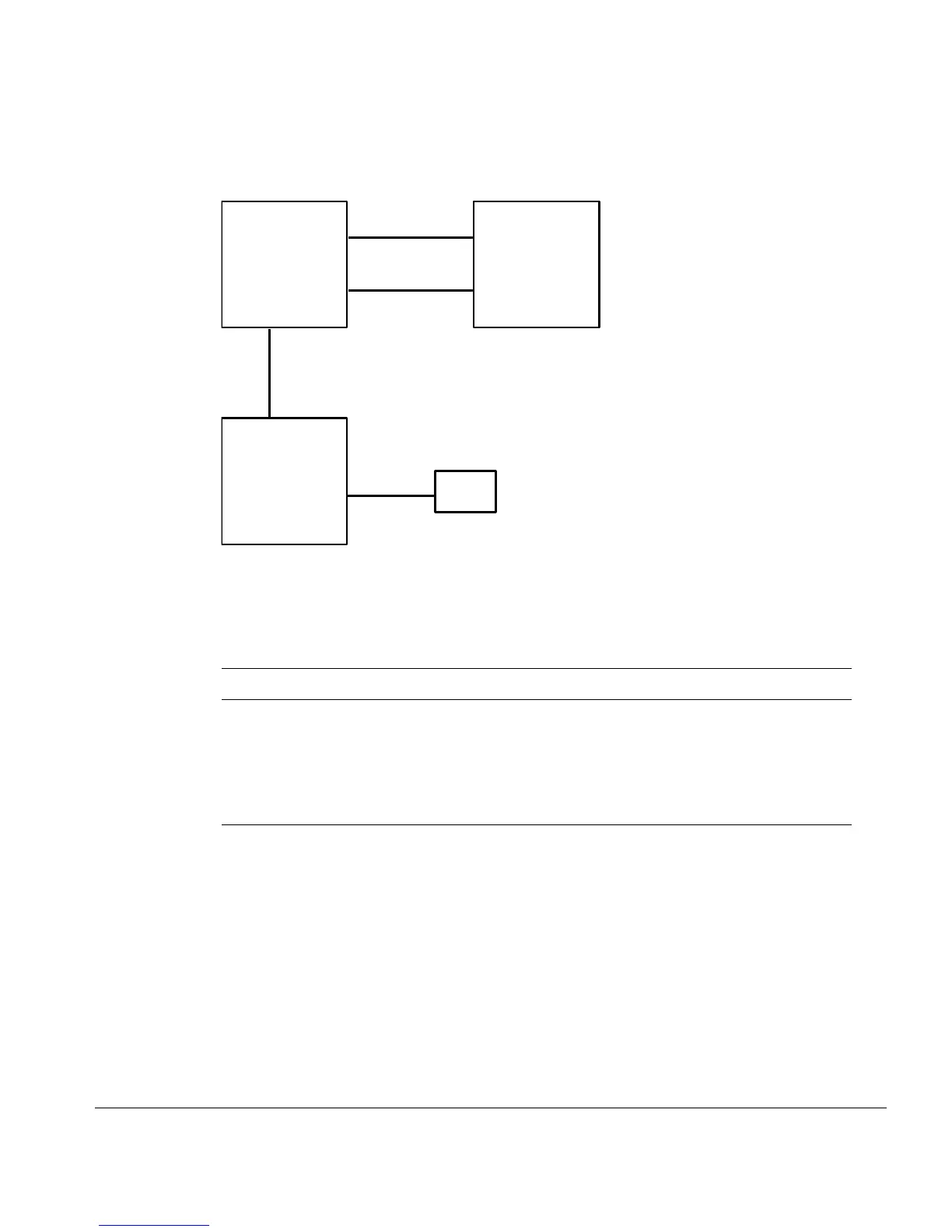

Figure 21. GC—GPIB GC ChemStation—GC Automatic Liquid Sampler
Number Part no. and description
1 G1530-60600, RS-232 cable, 9-pin female/9-pin female
2 G1530-60930, Remote start/stop cable, 2-m, 9-pin male/9-pin male
3 10833B, 2-m GPIB cable
4 G1530-61120, RS-232/modem cable or 24540-80012, RS-232/modem cable
GC
7673 ALS
GC ChemStation Modem
1 RS-232
2 APG remote
3 GPIB
4 RS-232
(with 7673 ALS,
if used)*
(if used)
* The 7683 controller is internal to the 6890 Plus GC. The G2613A Injector and the 2614
tray plug directly into the GC.
