Installation
Step 13. Connecting cables
48

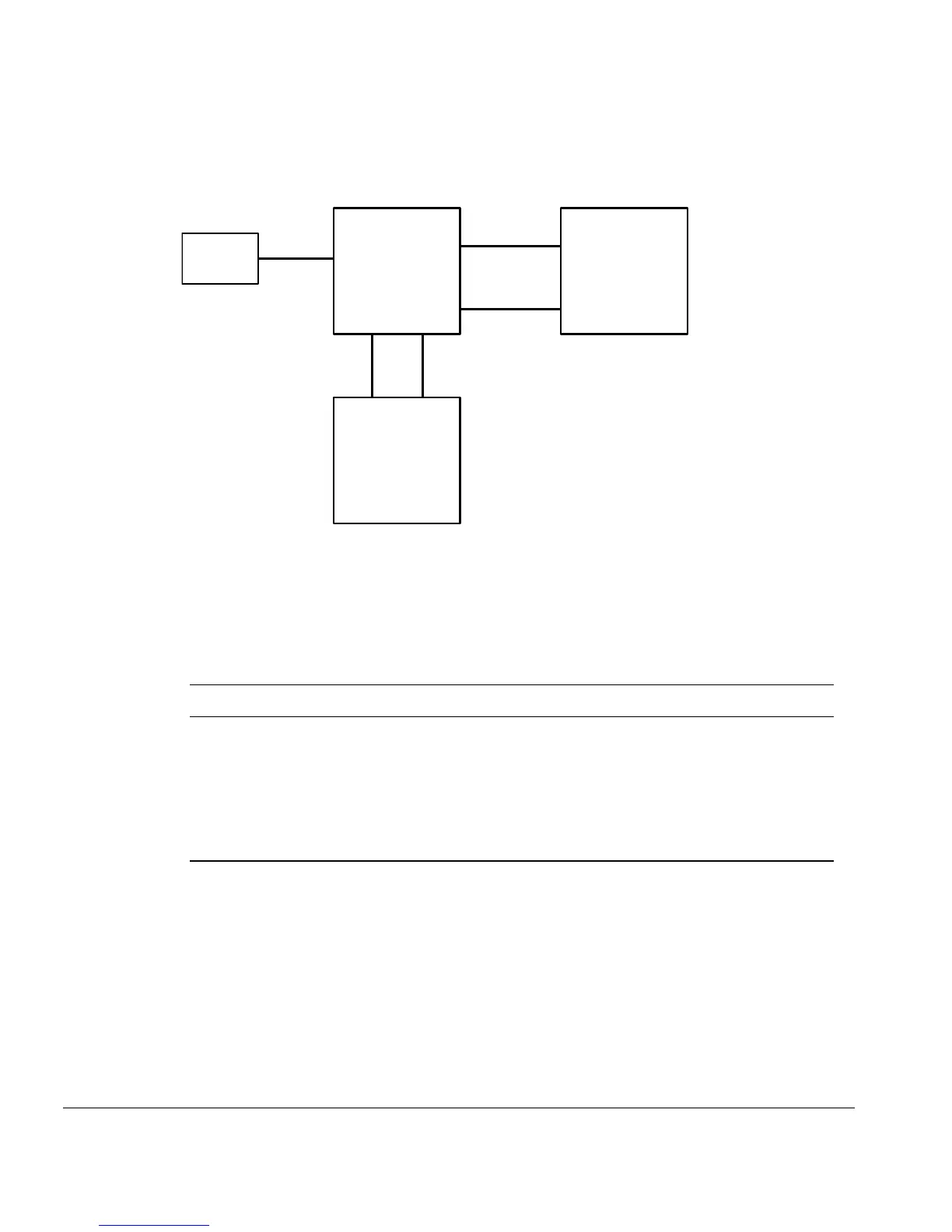

Figure 22. GC 3396B/C INET integrator—GC Automatic Liquid
Sampler—Modem
Number Part no. and description
1 G1530-60600, 2-m RS-232 cable, 9-pin female/9-pin female
2 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male, start-stop function
3 Two 82167-60003, 5-m INET cables
4 G1530-61120, RS-232/Modem cable, 9-pin female/9-pin male
OR 24540-80012, RS-232/Modem cable 9-pin female/25-pin male
7673 ALS
1 RS-232
2 APG remote
3 INET
4 Modem
Modem
GC
INET Integrator
(with 7683,
if used)*
(if used)
* The 7683 controller is internal to the 6890 Plus GC. The G2613A Injector and the 2614
tray plug directly into the GC.
