24 708-DS / 709-DS Operator’s Manual
3 Setting Up the 708-DS / 709-DS
Tubing / Cable Connections
Complete the following sections to connect the necessary tubing and
cables for the Agilent 708-DS / 709-DS.
Heater / Circulator Setup (708-DS)
1 Connect the six-pin cable to the rear of the heater / circulator and the
other end into the position marked BATH HEATER on the
dissolution apparatus rear panel.

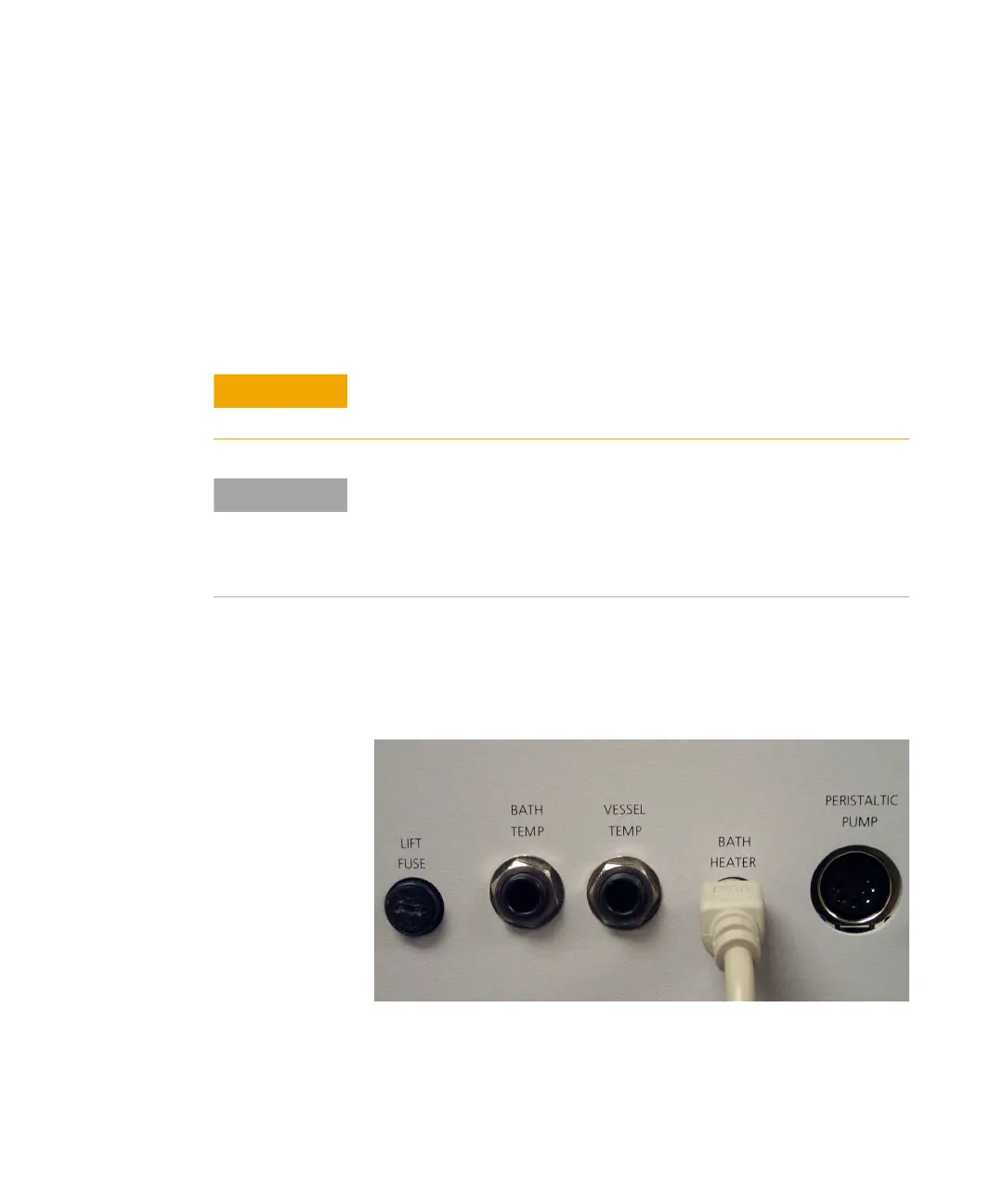

Figure 3 BATH HEATER Connector
Do not turn on the heater / circulator before filling the water bath to
avoid damaging the internal heating elements of the circulator.
The Agilent Wide Input Range Heater / Circulator is pre-installed on the
apparatus at the factory. If reinstallation or replacement is required,
please refer to the Agilent Wide Input Range Heater / Circulator
Operator’s Manual (located on the Technical Documentation CD) for
complete installation instructions.
