62 708-DS / 709-DS Operator’s Manual
4 Operating the 708-DS / 709-DS
The various ports of the standard evaporation cover of the Agilent
708-DS / 709-DS are described in the following figure:

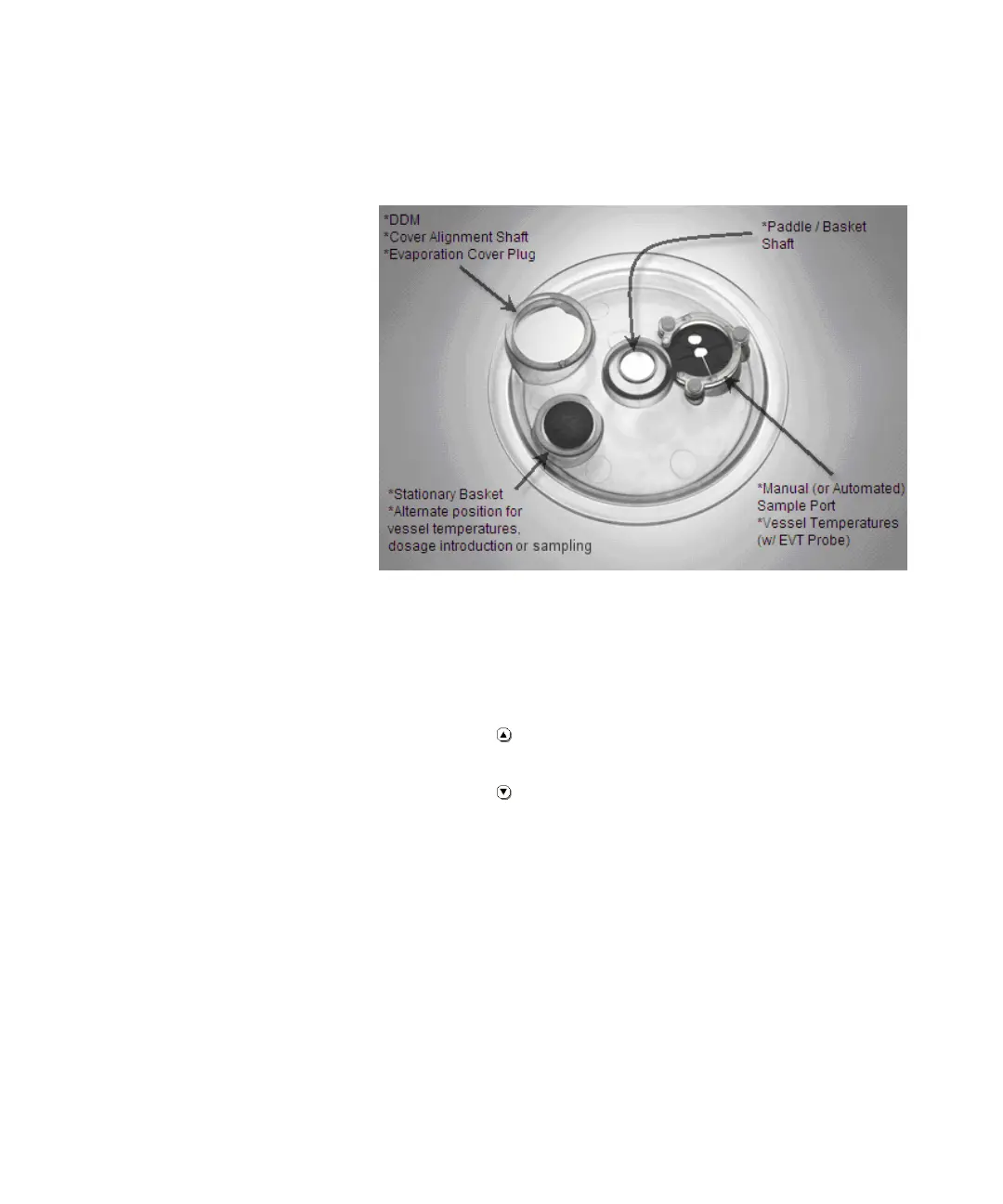

Figure 27 Agilent 708-DS / 709-DS Standard Evaporation Cover
Main Screen - Manifold Up / Down
Press Manifold to raise the manifold to its highest position. You do
not need to hold the button to fully raise the manifold.
Press Manifold to lower the manifold to the lowest position for the
currently specified apparatus type. Setting the proper manifold depth for
the appropriate volume and apparatus combinations is specified in
“Menu Screen - Calibration” on page 87.
