Installation Guide
Installing the G1926A Bar Code Reader
7
3. Connect the Bar Code Reader cable to the Bar Code Reader connection on
the tray.

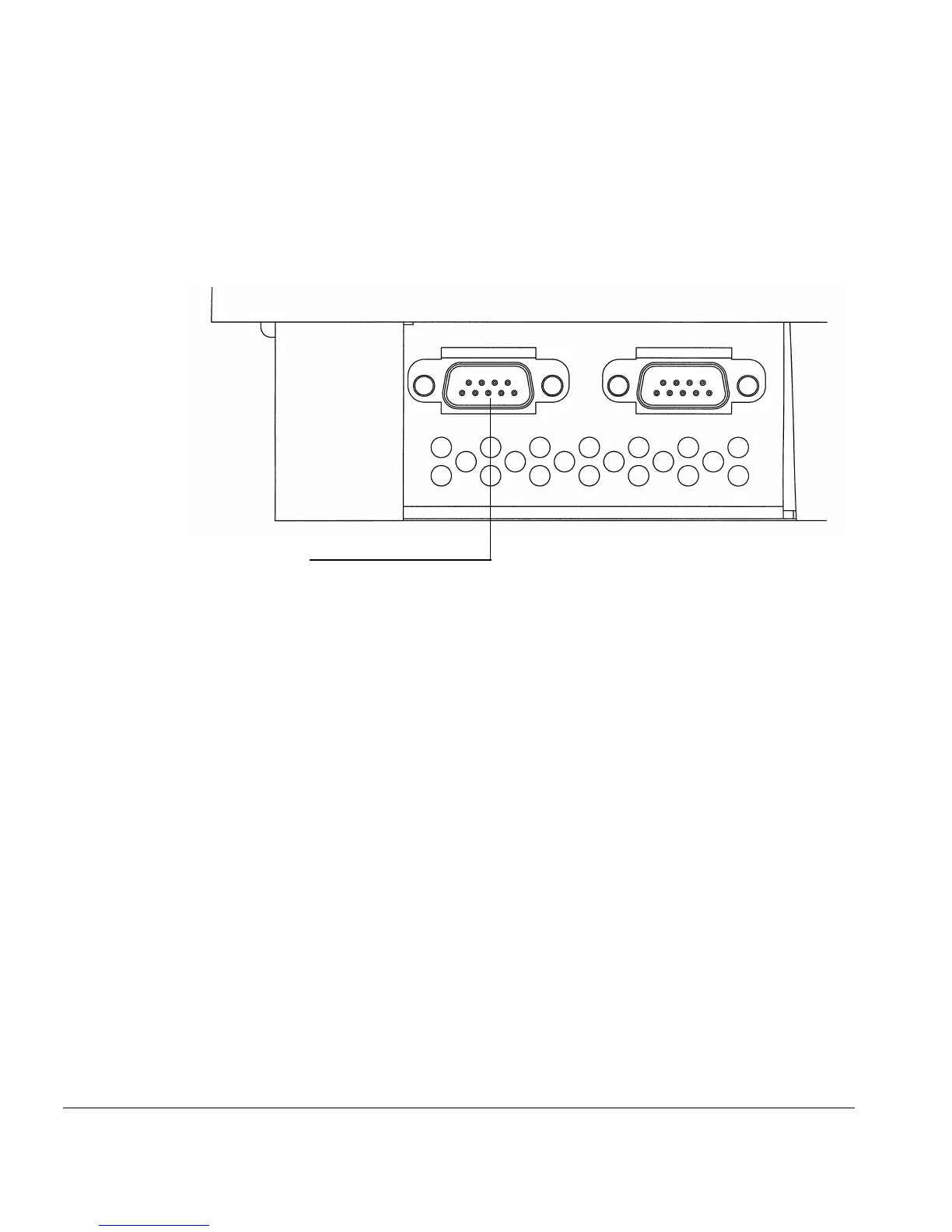

Figure 6 Connecting the Bar Code Reader
4. Slide the support bracket towards or away from the tray until the top of the
bar code reader is parallel with the tray surface. Tighten the mounting
screws.
5. Adjust the Bar Code Reader’s height. Slightly loosen the height adjustment
screw on the side of the support bracket and raise or lower the bracket until
there is a very small gap—about the thickness of a piece of paper—between
the mounting clips on the bar code reader and the tray. See Figure 4. Tighten
the height adjustment screw.
Connect Bar Code Reader
