Installation Guide
Installing the G1926A Bar Code Reader
6
Installing the G1926A Bar Code Reader
1. Install the G1926A Bar Code Reader support bracket under the front of the
tray as shown below. Leave the screws slightly loose. You will tighten them
later.

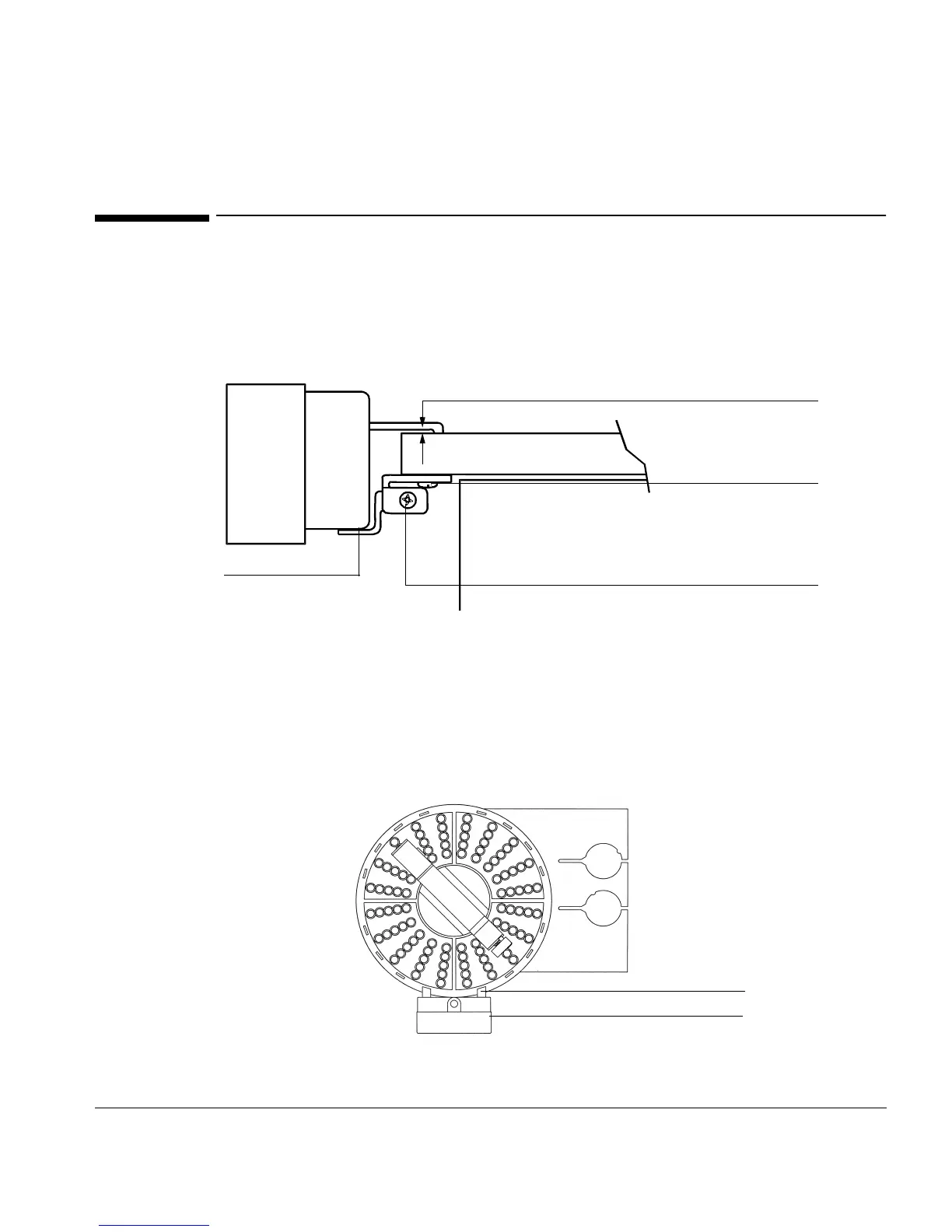

Figure 4 The Bar Code Reader support bracket
2. Mount the Bar Code Reader onto the front of the tray base by inserting the
two mounting clips on the Bar Code Reader into the mounting slots on the
edge of the tray base. See Figure 5.
Figure 5 Mounting location for the Bar Code Reader
Adjust this space
Mounting screws (2)
Height adjustment screws
Tray
Support Bracket
GC
Mounting clips
Bar code reader
To Next Page
