Installation Guide
Installing the G2613A Injector
4
Installing the G2613A Injector
Note Do not mount the G2613A Injector on a mounting post for a 7673 Injector.
Remove the old post and replace it with the new one.
1. Install the mounting post on the injection port cover in the front or rear
location, as desired.
2. Open the injector door. Slide the packing material and syringe carriage
down, then remove the packing.
3. Mount the injector. Line up the hole in the base of the injector that is nearest
the cable with the mounting post. Lower the injector about an inch (2.5 cm)
onto the post.

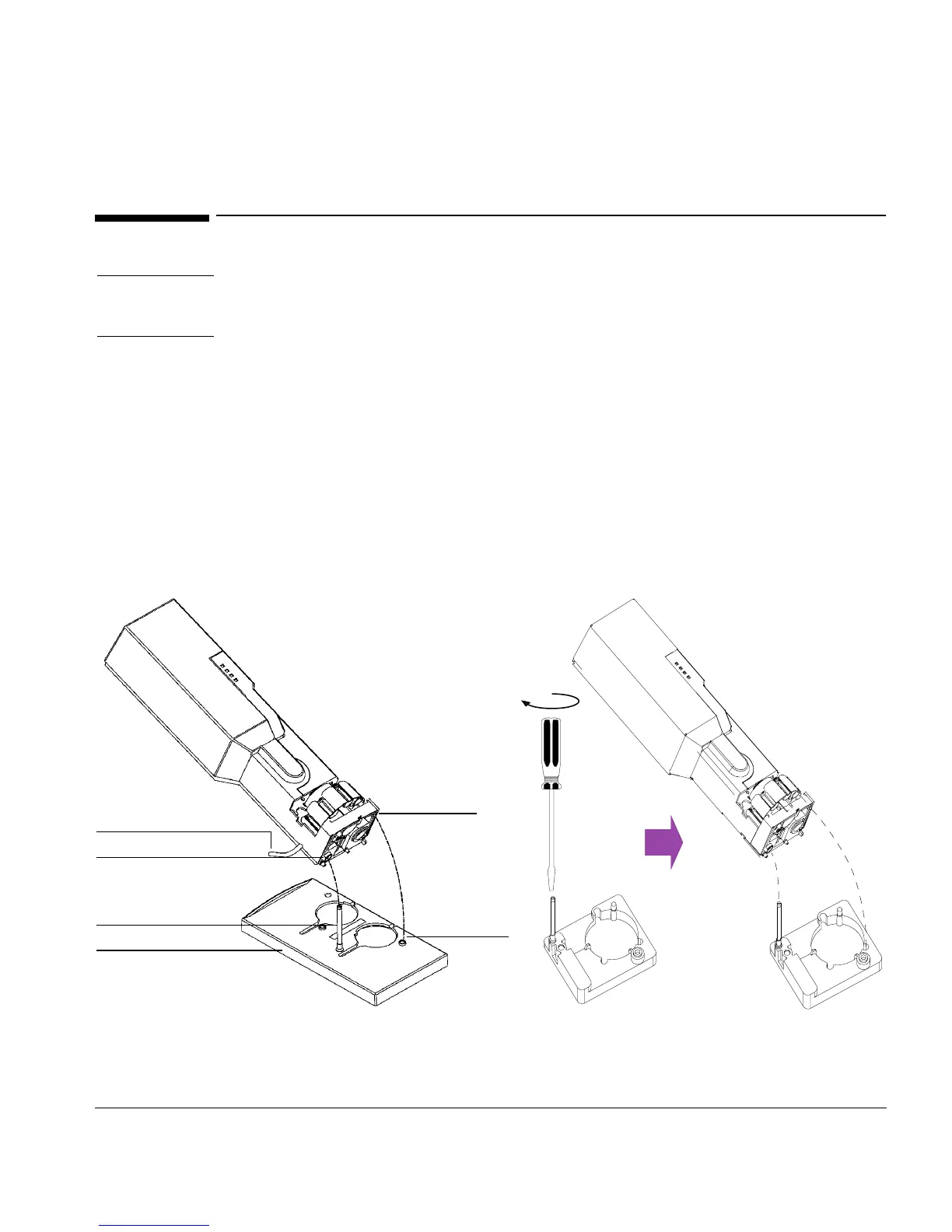

Figure 3 Mounting the injector
Alignment pin
Alignment
hole
Cable
Hole in injector base
Mounting post
Inlet cover
6890 6850
