Installation Guide
Turret Alignment
17
Note For increased accuracy of the needle sampling depth, perform the turret
alignment procedure each time the turret is changed. See Turret Alignment on
page 17.

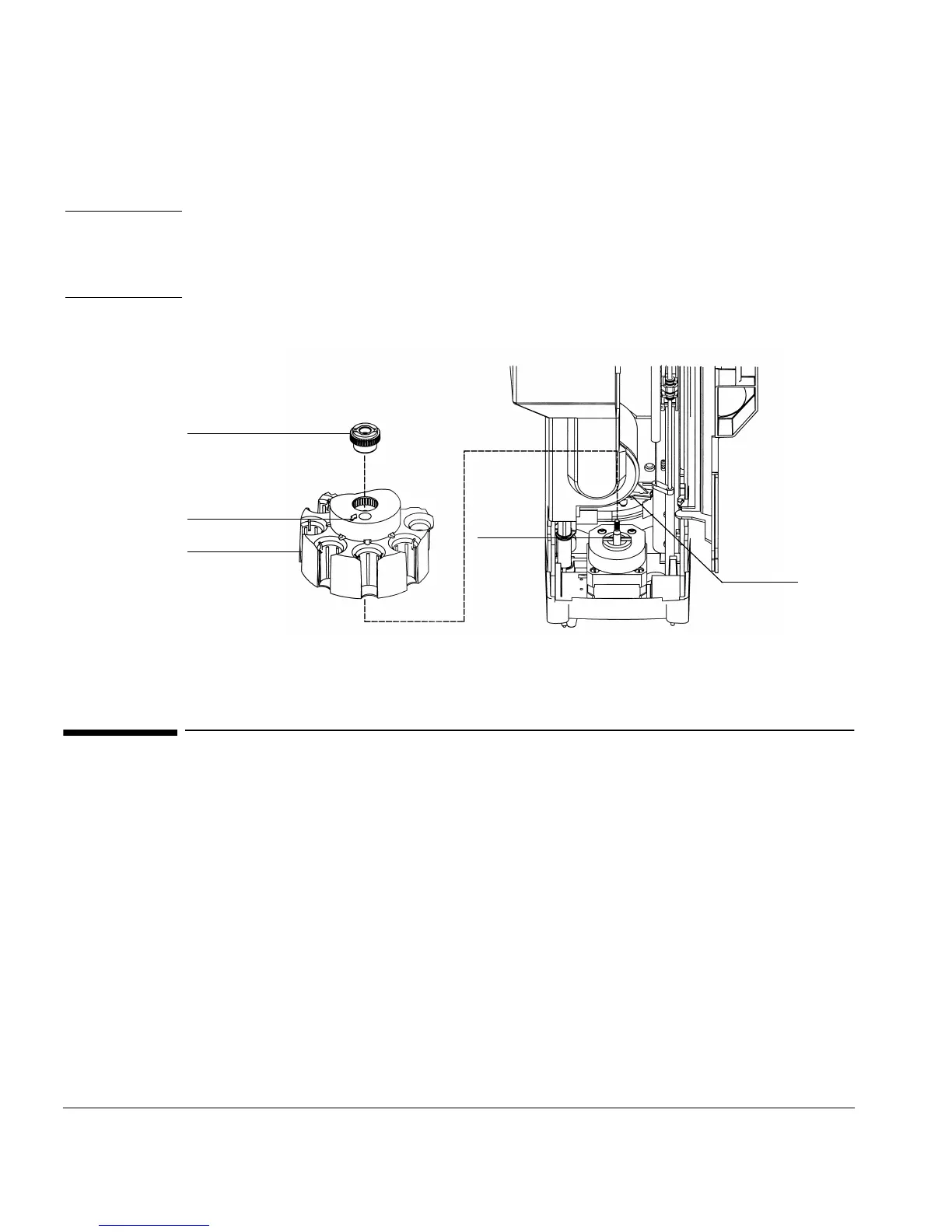

Figure 10 Turret removal
Turret Alignment
If you changed turrets in the injector and desire increased needle sampling depth
accuracy, or if the Align Mode light is on, perform this alignment procedure.
When the Align Mode light is on, the injector will not operate until this procedure
has been performed.
1. When the injector is not operating, open the injector tower door.
2. Slide the syringe carriage up until it stops.
3. Remove the syringe. See your Operation Guide for details.
4. Carefully remove the needle support assembly from the injector. See
Replacing The Needle Support Assembly on page 19 for details.
Knurled nut
Turret
Alignment arrow
Stripper arm
Motor hub
tab
