Replacing The Needle Support Assembly
21
6. To reinstall the needle support assembly, hold it in your right hand and insert
the upper end of the rod into the plastic guide to the right of the plunger
carrier loop.
7. Turn the needle support assembly so that the flat surface of the slide glides
up and down the syringe carriage tracks as shown in Figure 14.

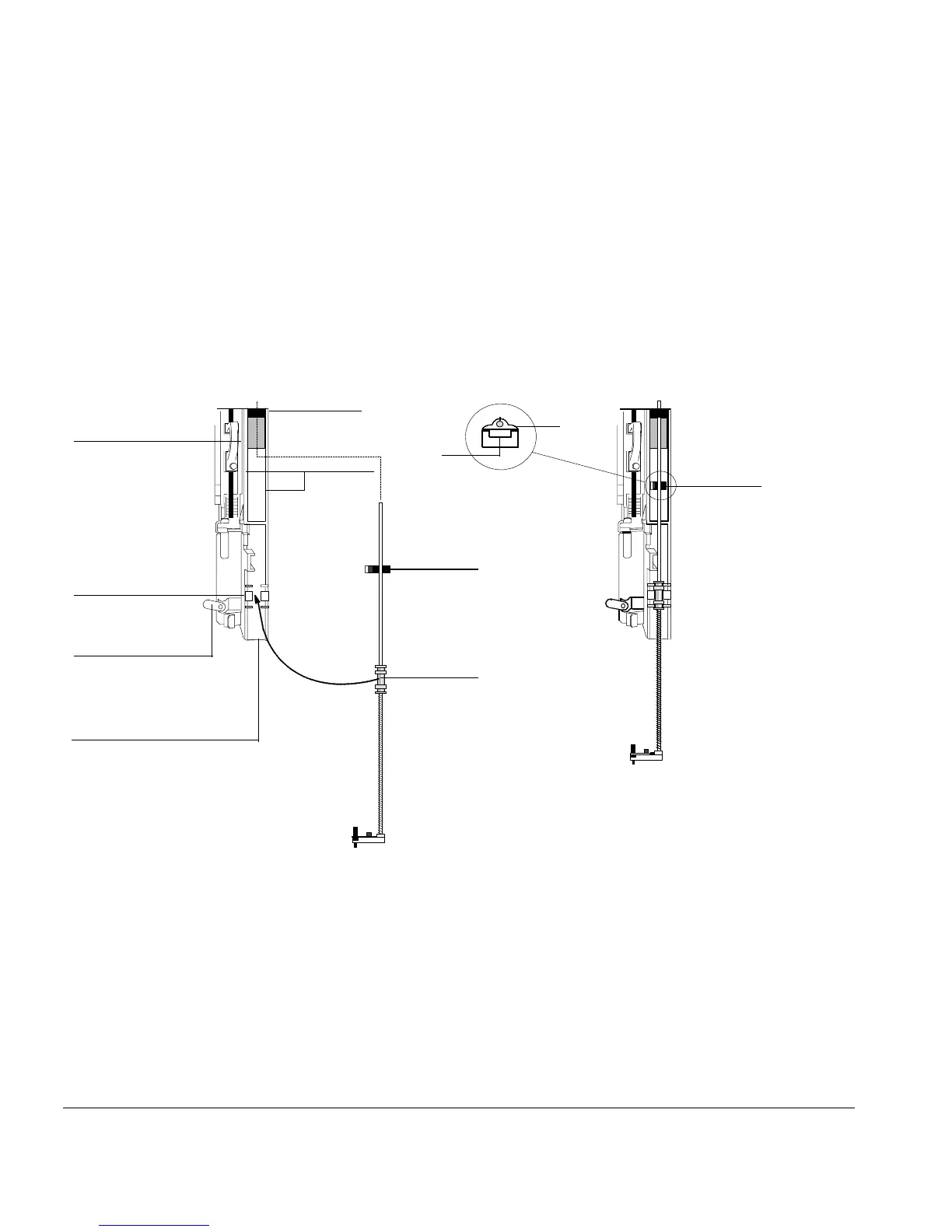

Figure 14 Installing the needle support assembly (250-/320-
µm shown)
8. Align the bearing on the needle support assembly with the plastic bearing
clip to the right of the syringe latch and push gently on the bearing until the
assembly snaps into place.
9. Place the G2613A Injector back on the GC or on a parking post.
Syringe latch
Guide
Syringe
Slide
Slide
Slide
Cross section
Bearing
Bearing clip
of slide alignment
Plunger carrier loop
Syringe carriage
carriage
tracks
Syringe
carriage
tracks
