41
Getting Started
Setting Up a Burst Signal

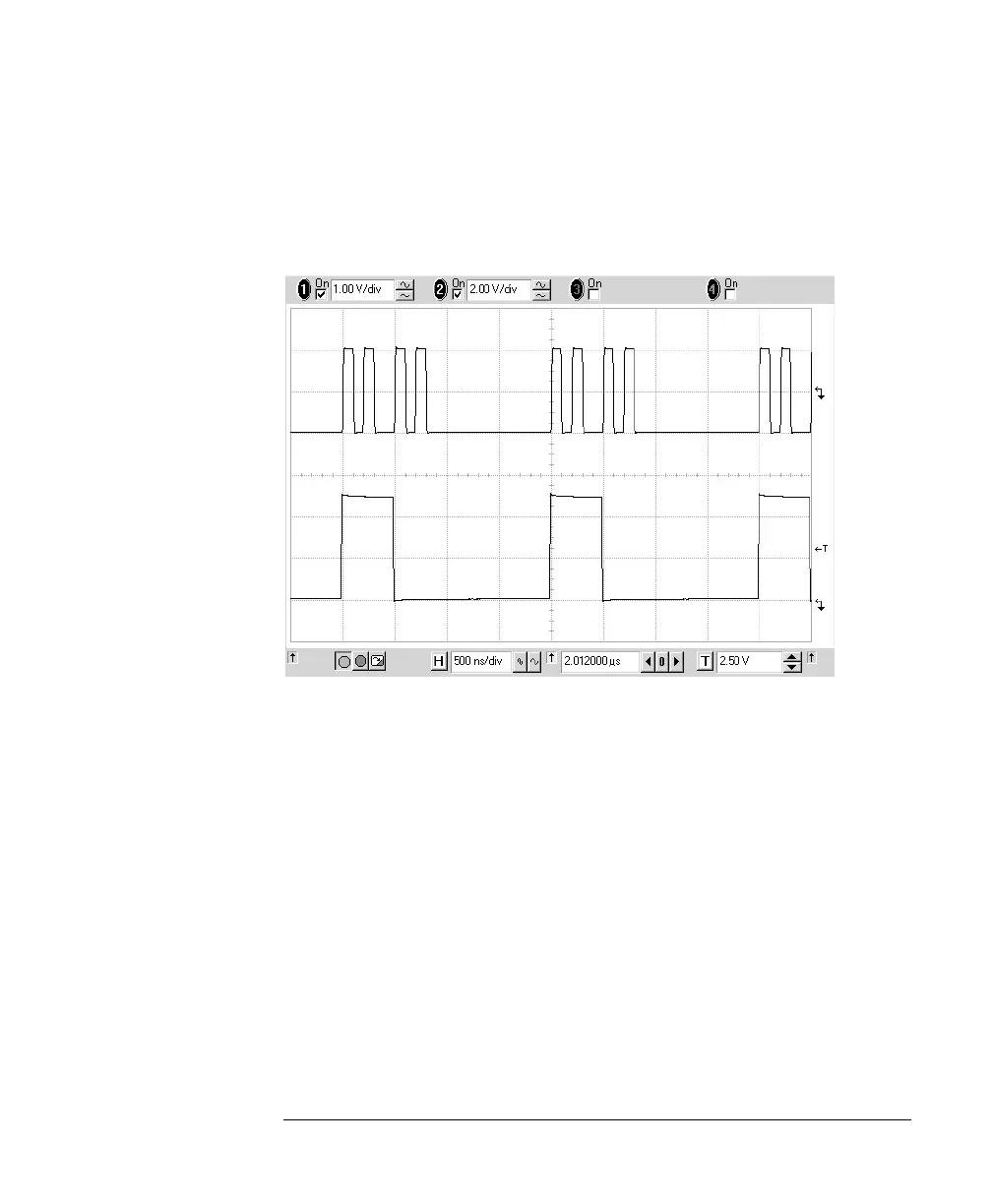

The following figure shows the signals as displayed on the
Agilent 54810A Infinium Oscilloscope if you connect OUTPUT to
channel 1, STROBE OUT to channel 2, and use the generator’s
TRIGGER OUT to trigger the scope.
