Agilent Technologies Cary 630 FTIR User Manual

Maintenance
Agilent Cary 630 FTIR Spectrometer User’s Guide 63

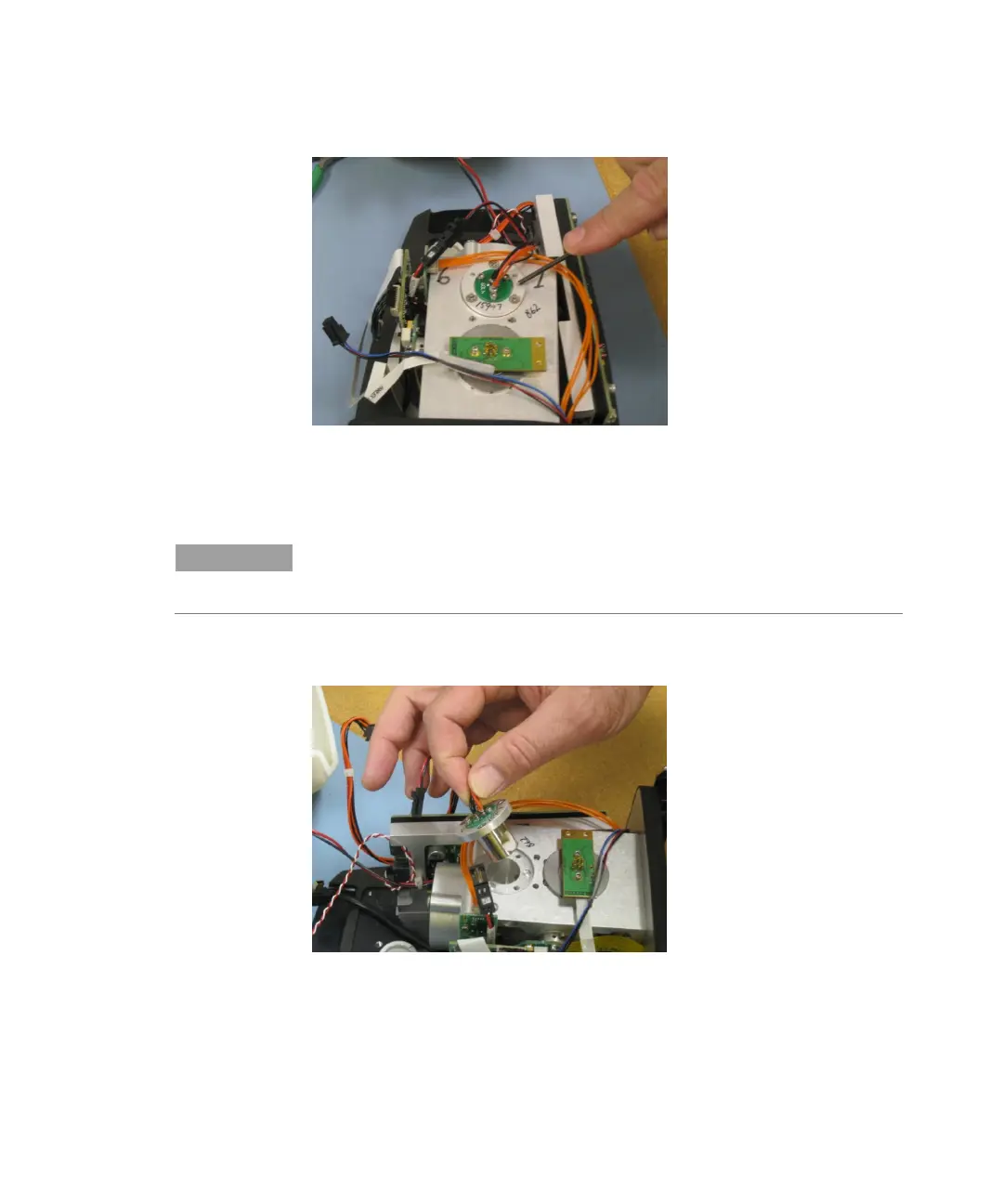

Figure 28. Source assembly in interferometer frame
7 Remove the source assembly from the frame (see Figure 29). Set
aside the source and replace it with the new source assembly.
NOTE
For alignment purposes, the opening on the source assembly goes towards the
front of the instrument (where the sampling accessory is normally located).
8 Attach with the three Philips head screws that were removed
previously.
Figure 29. Removing the source assembly
