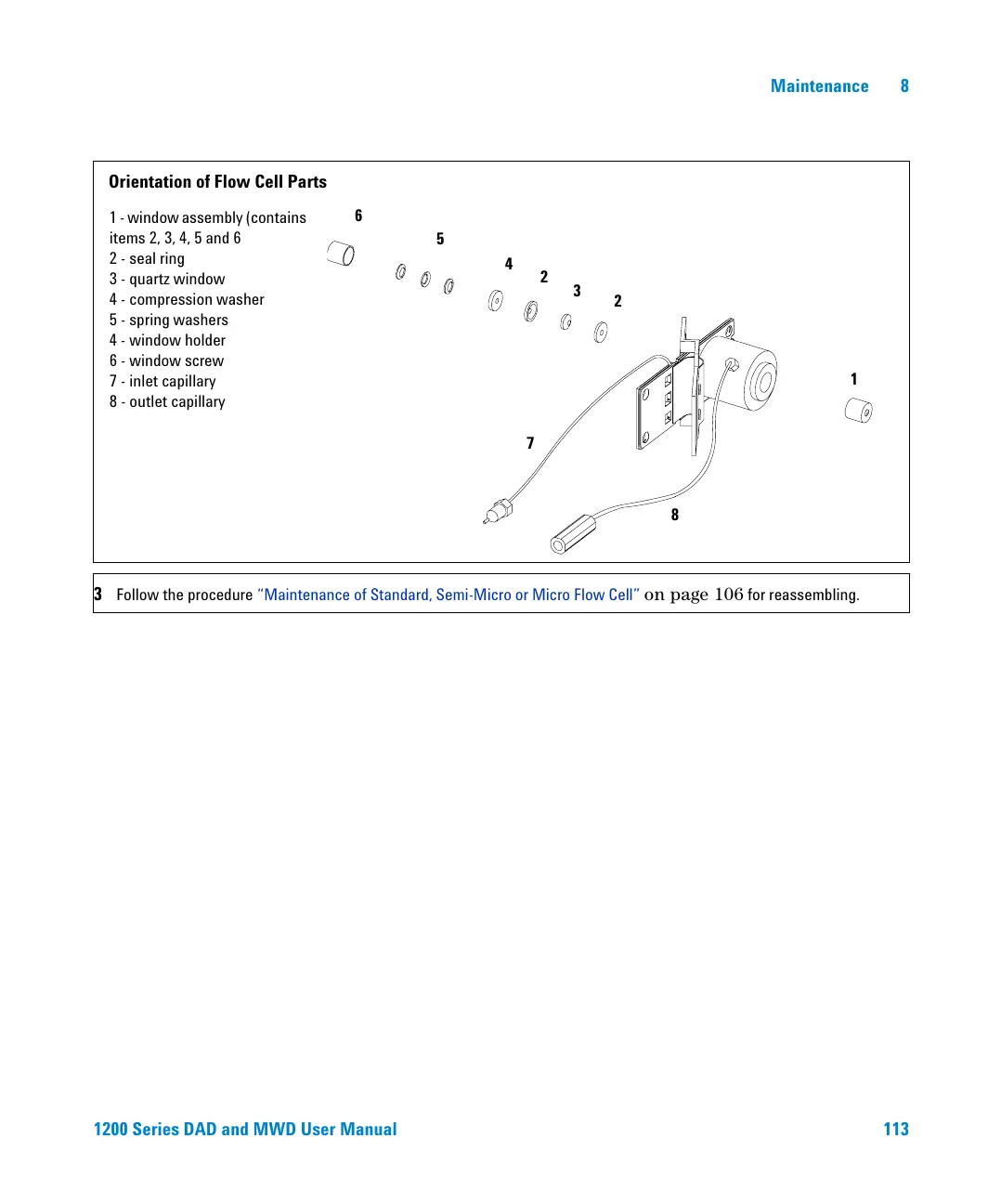

Orientation of Flow Cell Parts
3 Follow the procedure “Maintenance of Standard, Semi-Micro or Micro Flow Cell” on page 106 for reassembling.
1 - window assembly (contains
items 2, 3, 4, 5 and 6
2 - seal ring
3 - quartz window
4 - compression washer
5 - spring washers
4 - window holder
6 - window screw
7 - inlet capillary
8 - outlet capillary
1
2
3
2
4
5
6
7
8
