116 1200 Series DAD and MWD User Manual
8Maintenance

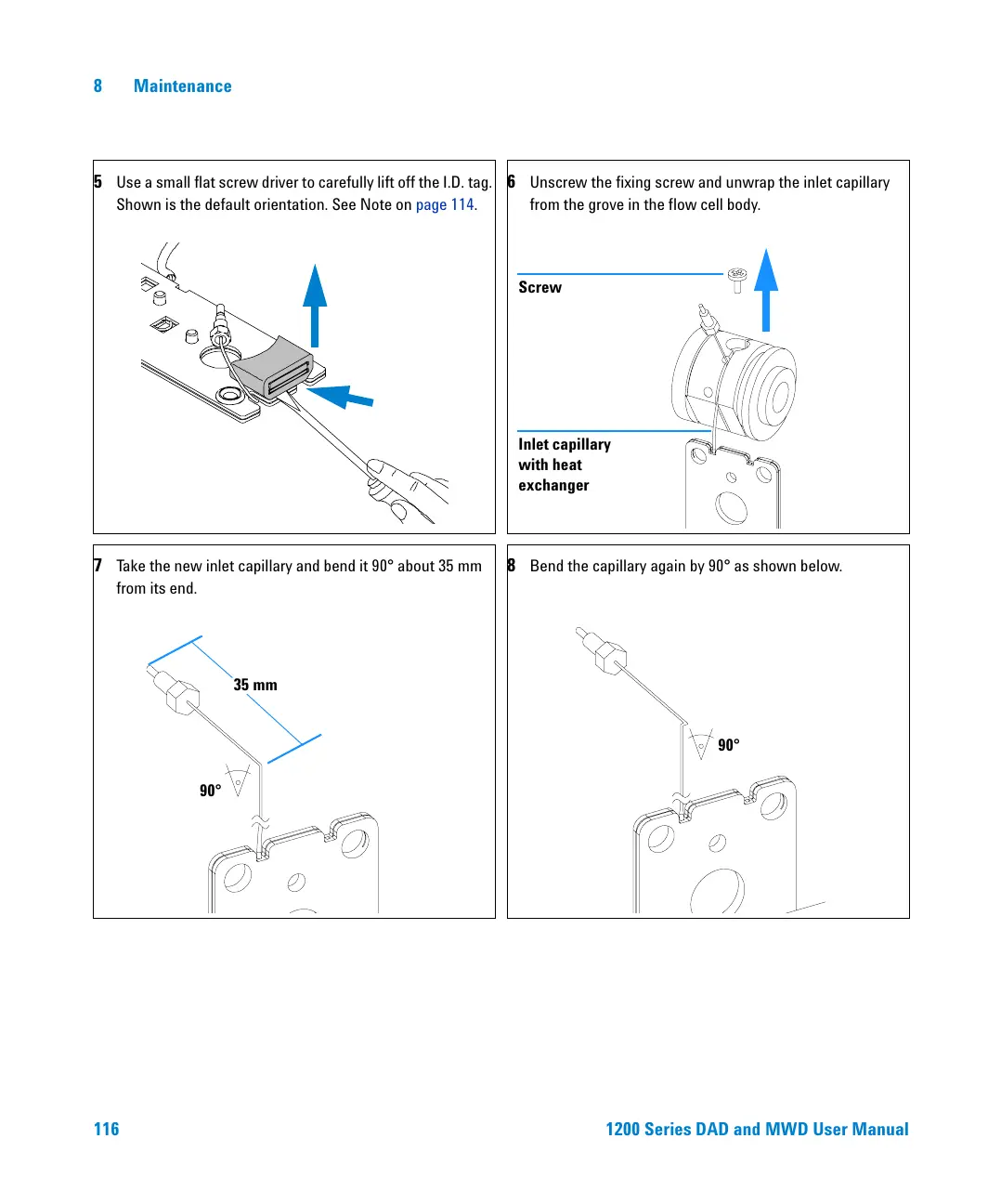

5 Use a small flat screw driver to carefully lift off the I.D. tag.
Shown is the default orientation. See Note on page 114.
6 Unscrew the fixing screw and unwrap the inlet capillary
from the grove in the flow cell body.
7 Take the new inlet capillary and bend it 90° about 35 mm
from its end.
8 Bend the capillary again by 90° as shown below.
Screw
Inlet capillary
with heat
exchanger
35 mm
90°
90°
