Using the Optional Integrated Column Compartment
• The Visualization section gives a visual representation of the configuration
of the columns in the column compartment; the columns are color coded.
• Place the mouse cursor over a column to display a tooltip of the
column information from the column ID tag.
• Click on a column to highlight the column information in the Column
Tag Information table.
• The Column Tag Information shows the information in the column ID tags
for all columns in the configuration, including their location in the column
compartment and their color codes.
The column compartment panel of the Dashboard in the ChemStation's
Method and Control view also allows you a quick view of the column ID tag
information.

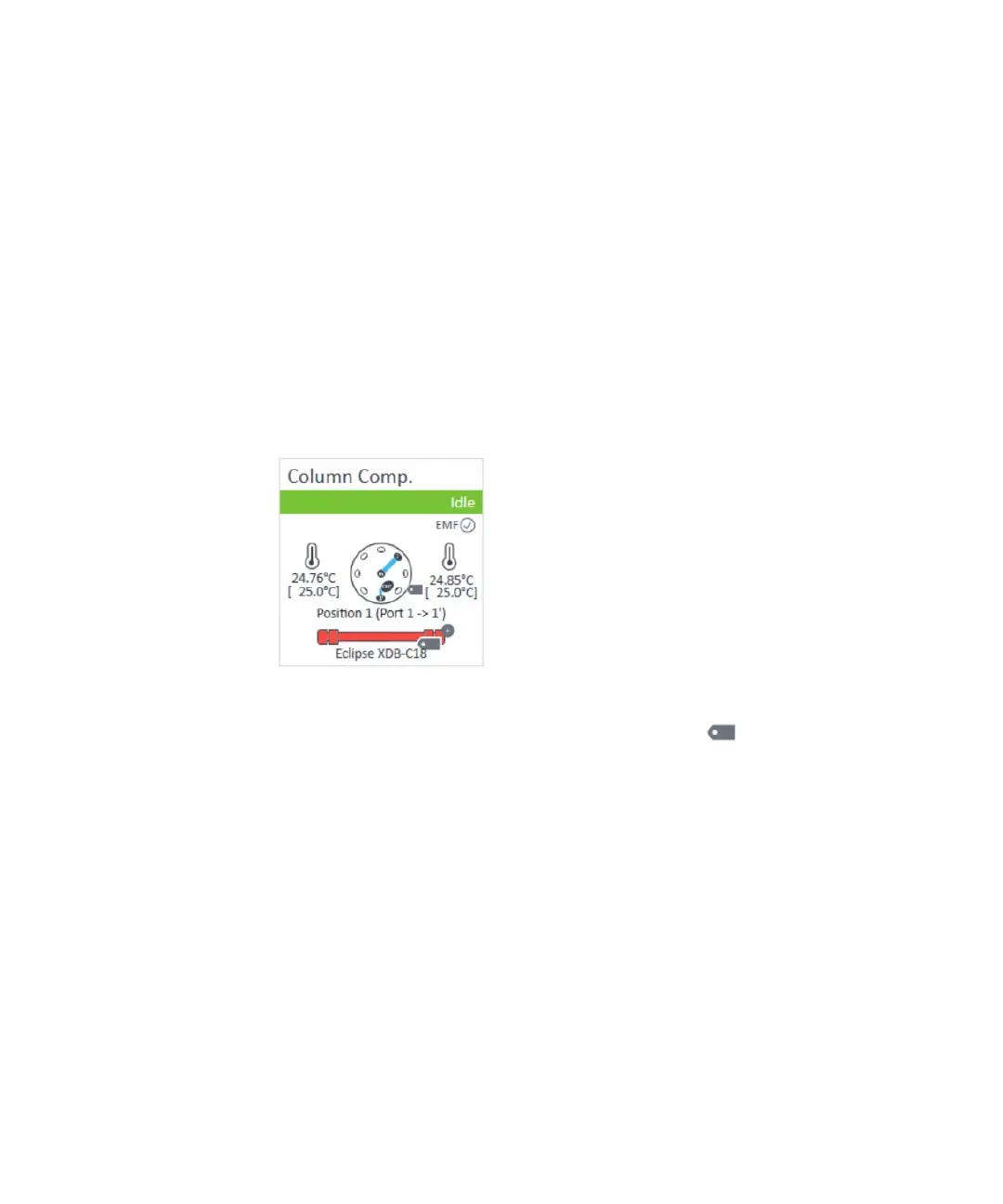

Figure 25 The dashboard panel of the column compartment
Place the mouse cursor over the column ID tag icon ( ); the tooltip shows
the information currently stored on the column ID tag.
Note that the column ID tag icon changes according to its state as described
in
“The Column Tag Information Table” on page 113.
