Install the Optional Integrated Column Compartment
Install the Column ID Upgrade Kit
Parts required # p/n Description
1 G4751A Column ID Upgrade Kit for the Integrated Column Compartment
(includes the tag reader, 2 column identification tags and a tech-
nical note)
OR 1 5067-6153 Column ID Tag Reader
1 5067-5917 InfinityLab Column Identification Tag
Preparations
• Power off the instrument.
• Install the Integrated Column Compartment (see “Install the Integrated Column
Compartment” on page 76).
To use the G4751A Column ID Upgrade Kit, the Agilent Integrated Column
Compartment must be installed in the Vialsampler.

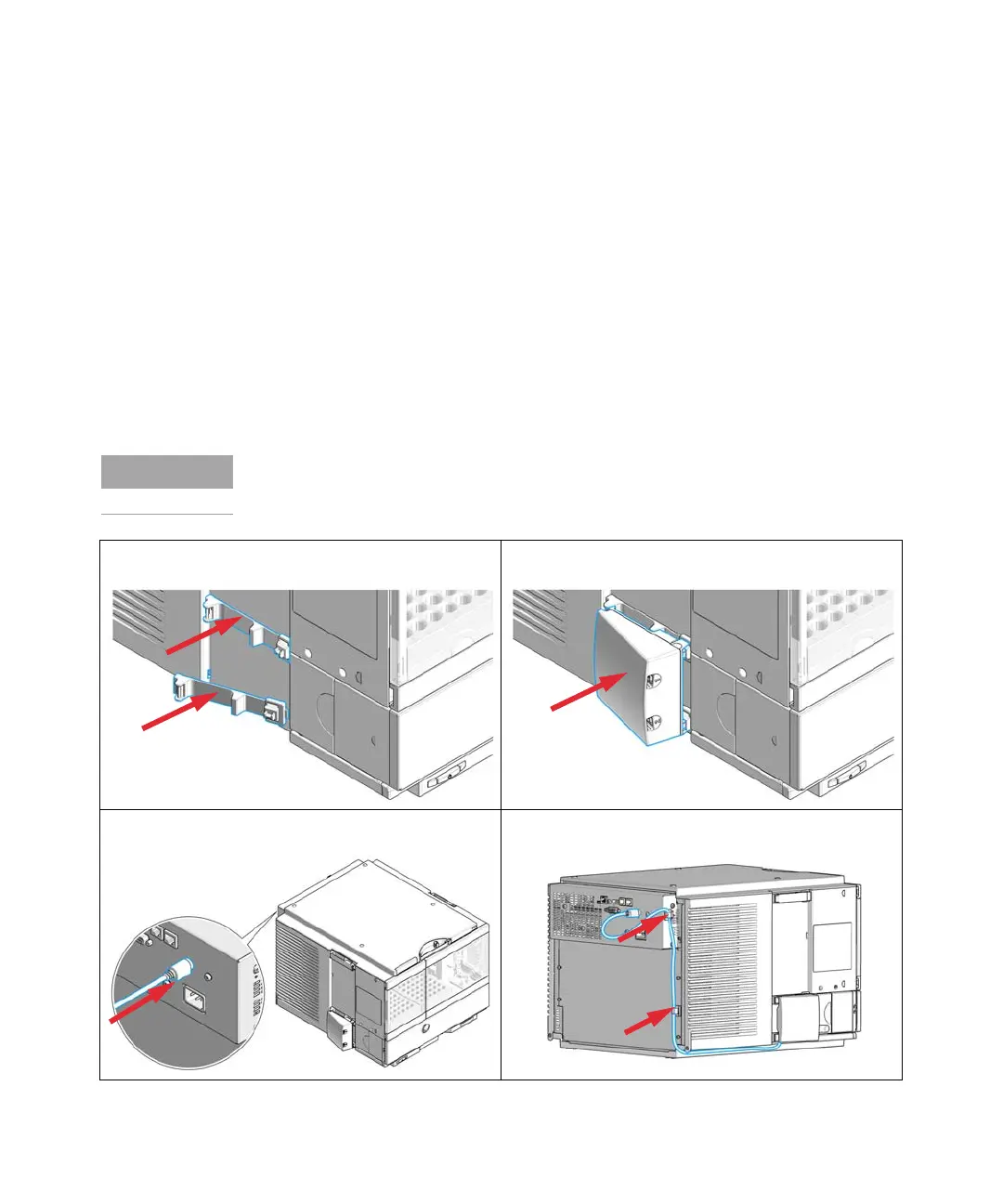

1 Place the two mounting clips onto the left side of the
Vialsampler. Make sure of the correct orientation.
2 Mount the tag reader to the mounting clips.
3 Connect the cable of the tag reader to the respective
socket on the back of the Vialsampler.
4 Fix the cable to the back of the sampler with the cable
clips provided with the tag reader.
