Agilent InfinityLab LC Series Vialsamplers User Manual 86
3Using the Module
Install the Optional Integrated Column Compartment
Remove a Column from the ICC
Tools required p/n Description
8710-0510 Open-end wrench 1/4 — 5/16 inch
Preparations
• Switch off the pump
• Switch off the sampler
• Open the doors of the sampler

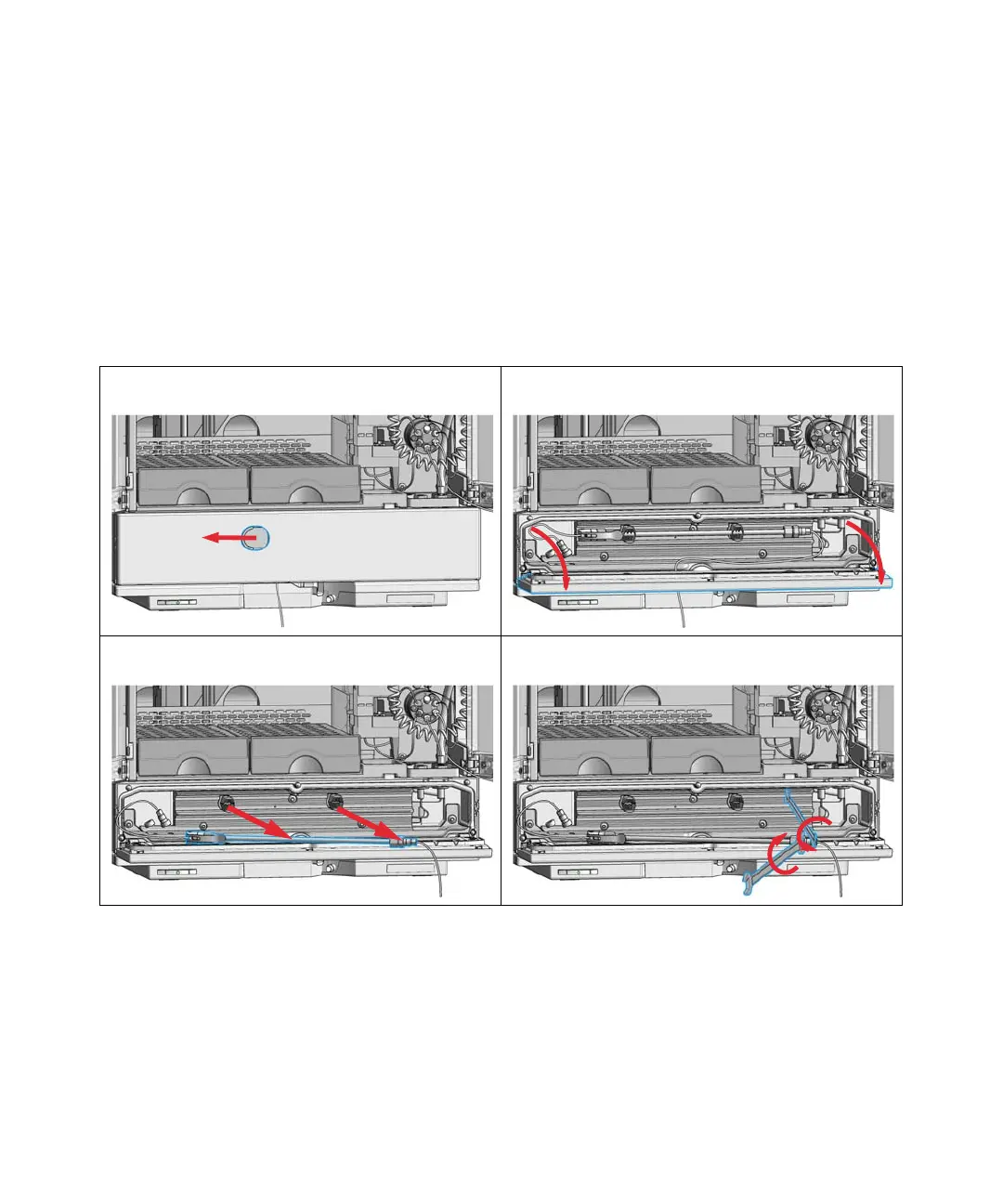

1 Push the latch of the Integrated Column Compartment
to the left.
2 Open the flap door.
3 Remove the column from the column holder clips. 4 Loosen the Quick Turn Fitting either with your fingers or
with the help of two wrenches.
