5 Operating in EI Mode
To View MSD Temperature and Vacuum in Manual Tune
5977B Series MSD Operating Manual 117
To View MSD Temperature and Vacuum in
Manual Tune
You can also use the GC Control Panel to perform this task. (See “Operating the
MSD from the 7890 GC Control Panel” on page 104.) For an 8890 GC, see the
8890 GC Operating Manual.
Procedure
1 In Instrument Control view, select Edit Tune Parameters from the Instrument
menu to display the Manual Tune dialog.
2 Click the Values tab to view the MSD Temperatures and Vacuum. (See
Figure 32 and Figure 33 on page 118.)

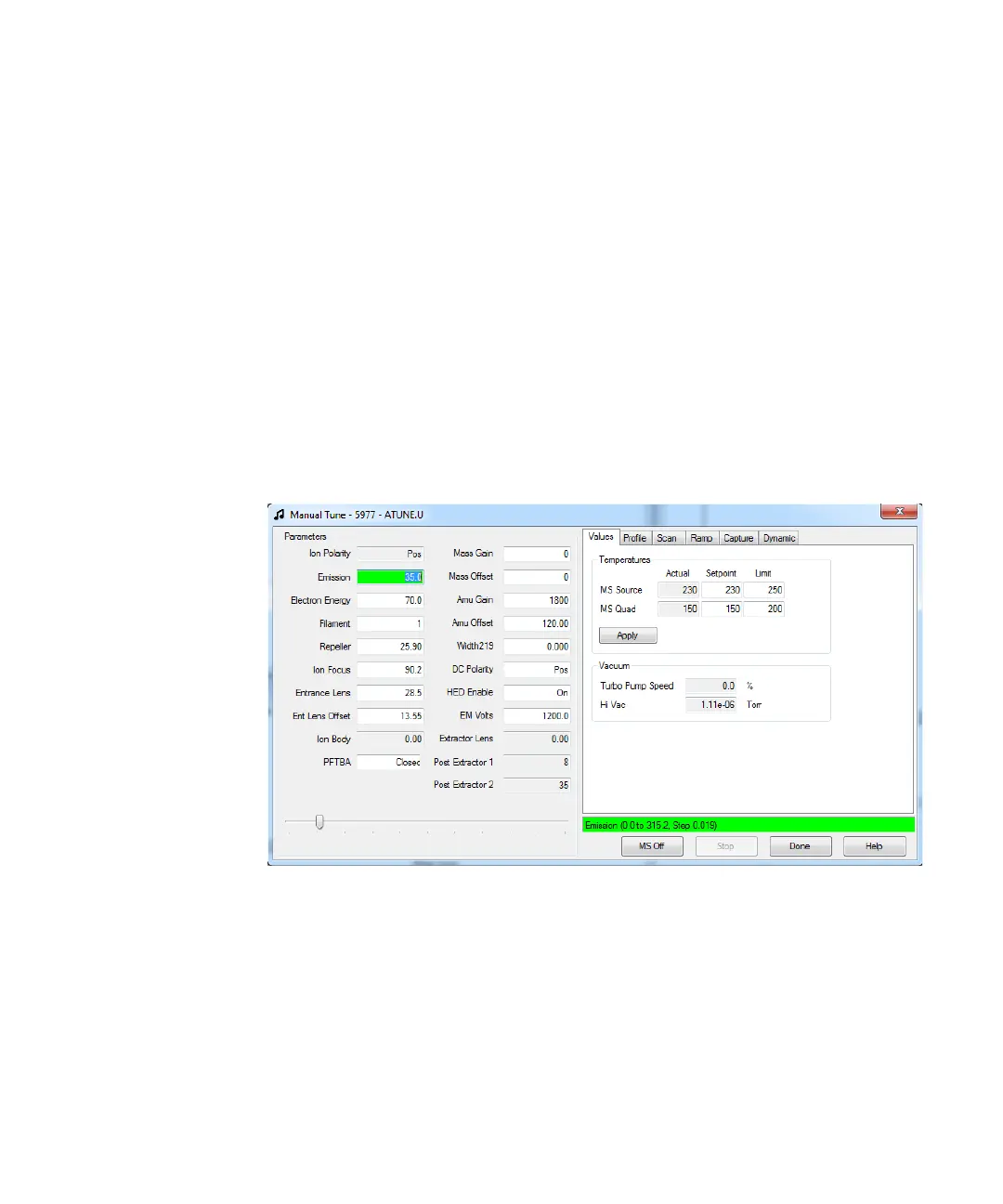

Figure 32. Manual tune values tab
