7 General Maintenance
To Connect/Disconnect Wiring from the EI XTR, SS, and Inert Sources
5977B Series MSD Operating Manual 197
To Connect/Disconnect Wiring from the EI
XTR, SS, and Inert Sources
Materials needed
• Gloves, clean, lint-free
• Large (8650-0030)
• Small (8650-0029)
• Pliers, long-nose (8710-1094)
• Tweezers (8710-2460)
Procedure
1 Use tweezers or needle nose pliers to connect/disconnect the ceramic
source board wire leads at the source connectors. (See Figure 63.)
2 Use tweezers or needle nose pliers to connect/disconnect the source heater
wire leads at the ceramic source board.

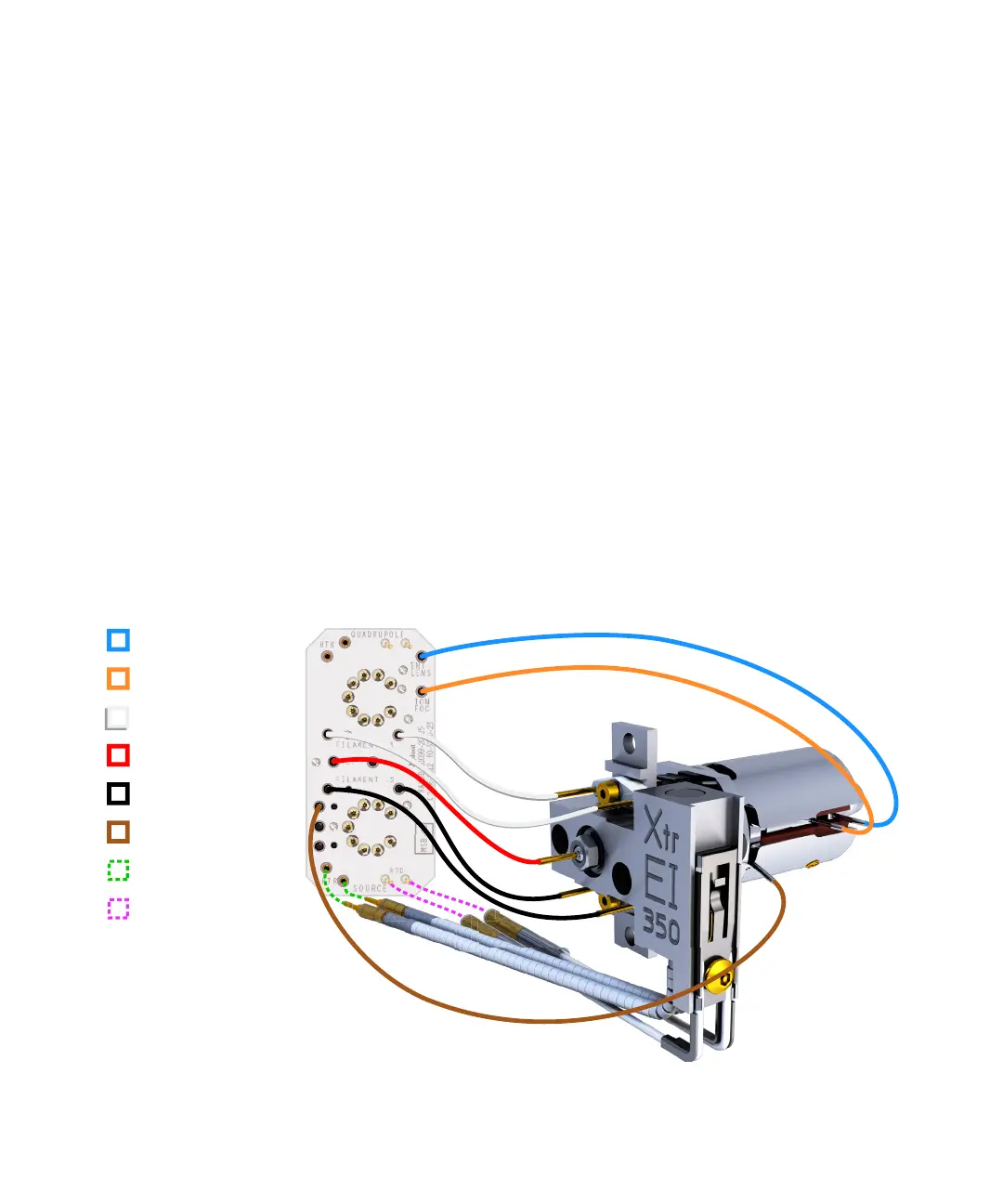

Figure 63 Wiring for the EI XTR Source
Extractor lens
Source heater
Repeller
Filament 1
Source RTD
Filament 2
Ceramic source board
Entrance lens
Ion focus lens
