Agilent Technologies MSD 5977B Series User Manual

7 General Maintenance
To Install the EI XTR, SS, or Inert Source
5977B Series MSD Operating Manual 217
To Install the EI XTR, SS, or Inert Source
Materials needed
• Gloves, clean, lint-free
• Large (8650-0030)
• Small (8650-0029)
• Pliers, long-nose (8710-1094)
Procedure
1 Slide the ion source into the source radiator. (See Figure 70.)
2 Insert and hand tighten the source thumbscrews. Do not overtighten the
thumbscrews. (See Figure 70.)
3 Connect the ion source wires. (See “To Connect/Disconnect Wiring from the
EI XTR, SS, and Inert Sources” on page 197.)
4 Close the analyzer chamber. (See “To Close the Analyzer Chamber” on
page 220.)


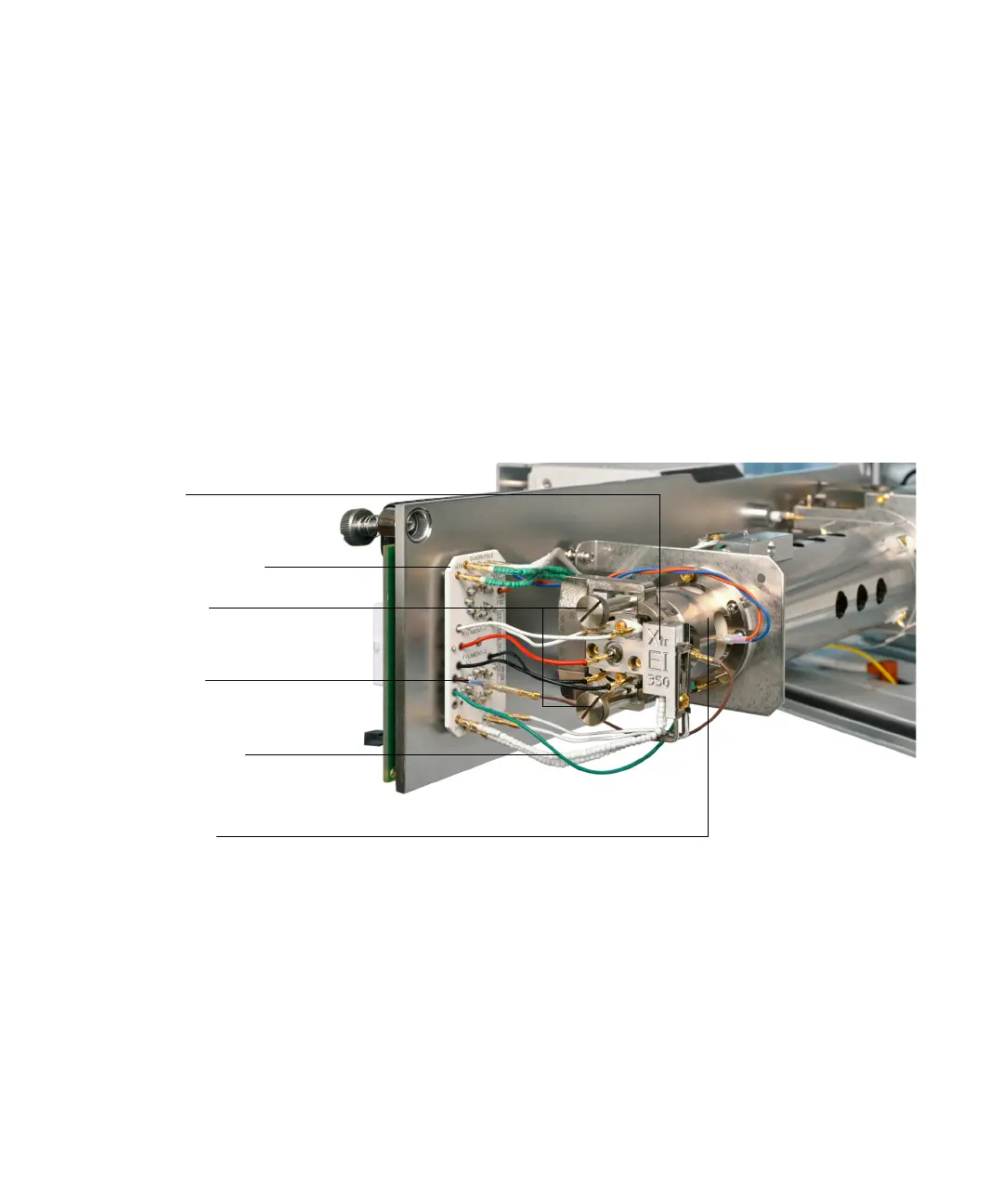

Figure 70. Installing the EI source
Ceramic source board
Ion source
Thumbscrews
Source heater and
temperature sensor wires
Source radiator
Extractor wire

