8CI Maintenance
To Connect/Disconnect non-HES Model Wiring from the CI Source
236 5977B Series MSD Operating Manual
To Connect/Disconnect non-HES Model
Wiring from the CI Source
Materials needed
• Gloves, clean, lint-free
• Large (8650-0030)
• Small (8650-0029)
• Pliers, long-nose (8710-1094)
• Tweezers (8710-2460)
Procedure
1 Use pliers to connect/disconnect the ceramic board wire leads at the source
connectors. (See Figure 76.)
2 Use pliers to connect/disconnect the source heater wire leads at the ceramic
source board. (See Figure 76.)

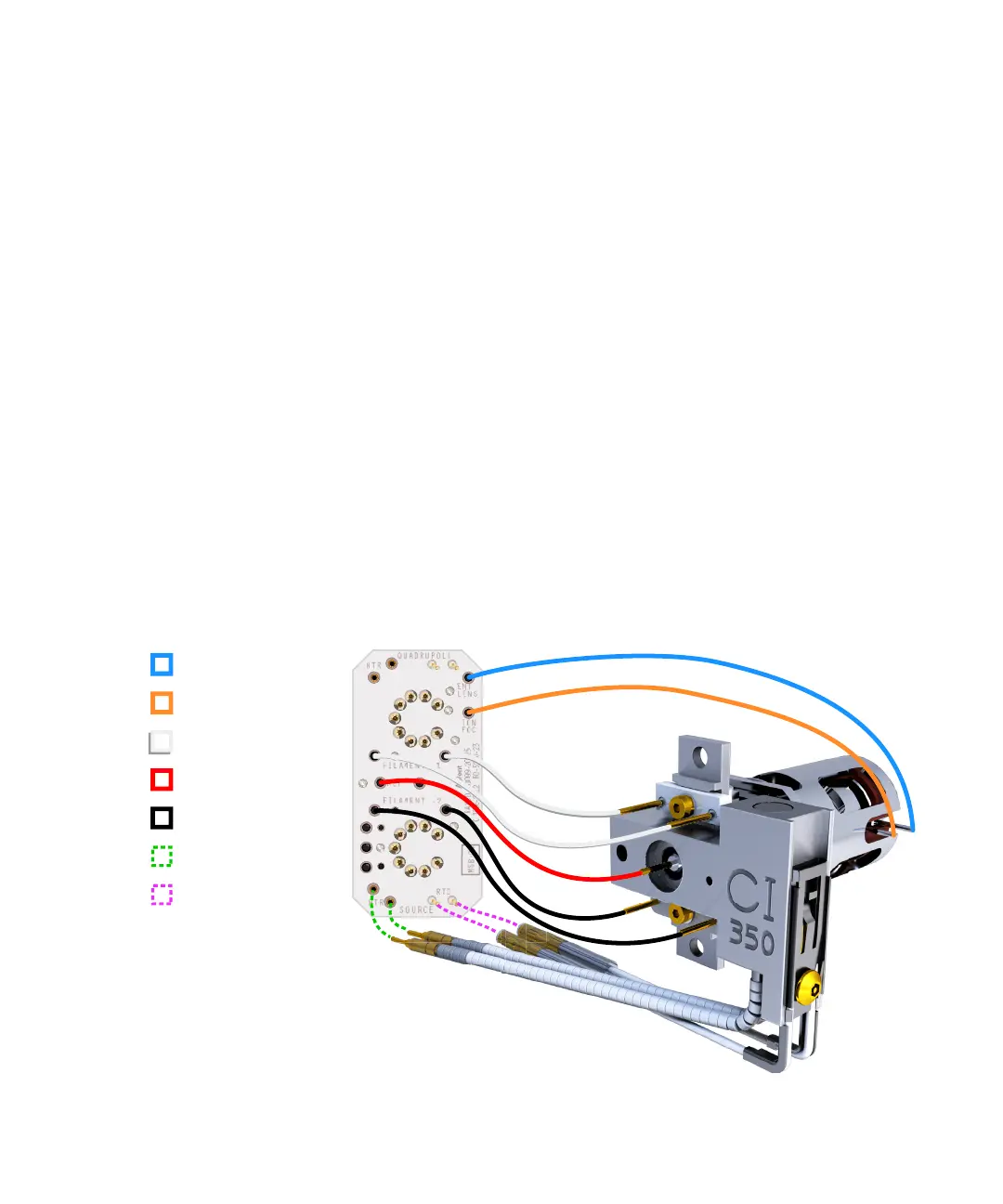

Figure 76 Wiring between the ceramic source board and the source
Filament 1
Repeller
Dummy filament
Entrance lens
Ion focus
Source heater
Source RTD
Ceramic source board
To Next Page
