PNA Series Microwave Network Analyzers Theory of Operation
N5230C Signal Separation Group Operation
Normal Configurable Test Set Configuration
The normal configurable test set configuration is shown in Figure 5-4. This configuration includes Option
014, configurable test set, and Option 1E1, source step attenuators. With this configuration and inclusion of
an external amplifier and accessories, you can calibrate the analyzer and test devices at power levels up to
+30 dBm. You can make measurements in the forward, reverse or both directions and still achieve these
high power levels. For more information on higher power measurements, search for “Option 014” in the
embedded help index in the analyzer.

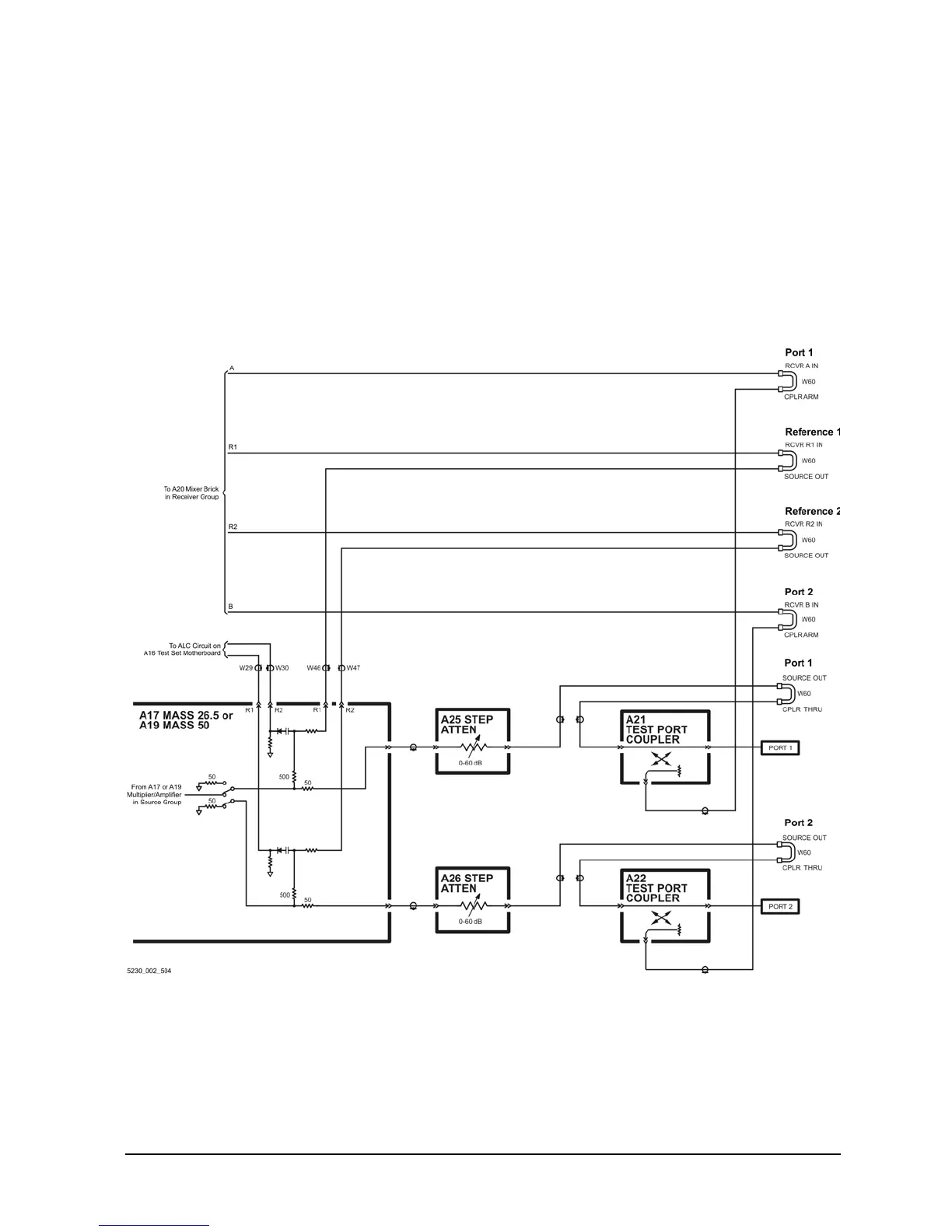

Figure 5-4 Normal Configurable Test Set Configuration
