PNA Series Microwave Network Analyzers Tests and Adjustments
N5230C Non-ANSI/NCSL Z540–1–1994 Verification
Non-ANSI/NCSL Z540–1–1994 Verification
For non-ANSI/NCSL Z540-1-1994, perform the preliminary checks and either the system verification or
performance tests while stopping to troubleshoot. Refer to Figure 3-2 for test flow. Troubleshoot and repair
the first problem encountered without continuing to other tests. After you troubleshoot, repair, and adjust,
repeat the last failed portion and generate a new set of data. Print out the system verification results or
complete the performance test record as the analyzer passes each test.

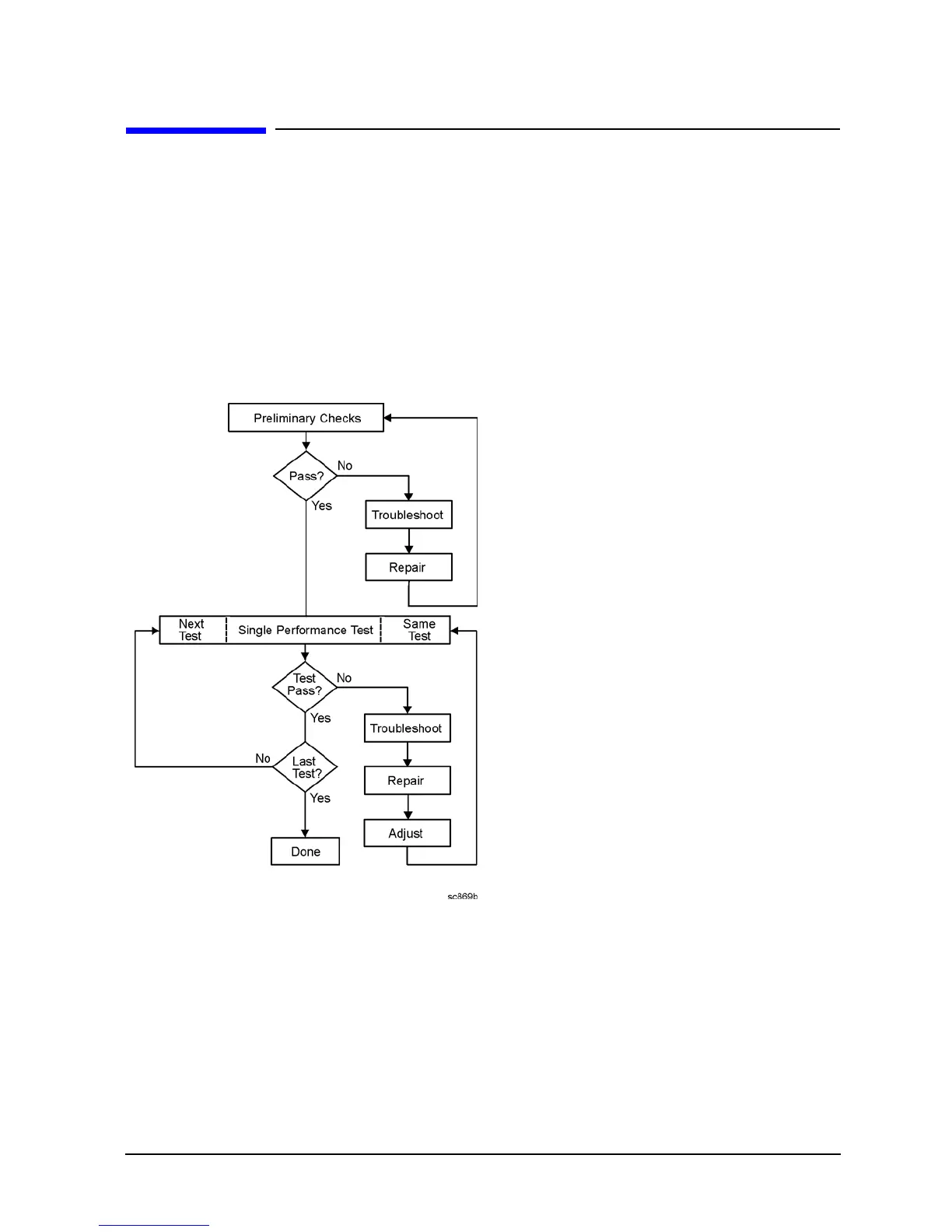

Figure 3-2 Non–ANSI/NCSL Z540–1–1994 Test Path Verification Flowchart
To Next Page
