Service Guide N5230-90024 7-17
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
N5230C Removing and Replacing the A5 through A10 Boards and the Plenum Bracket

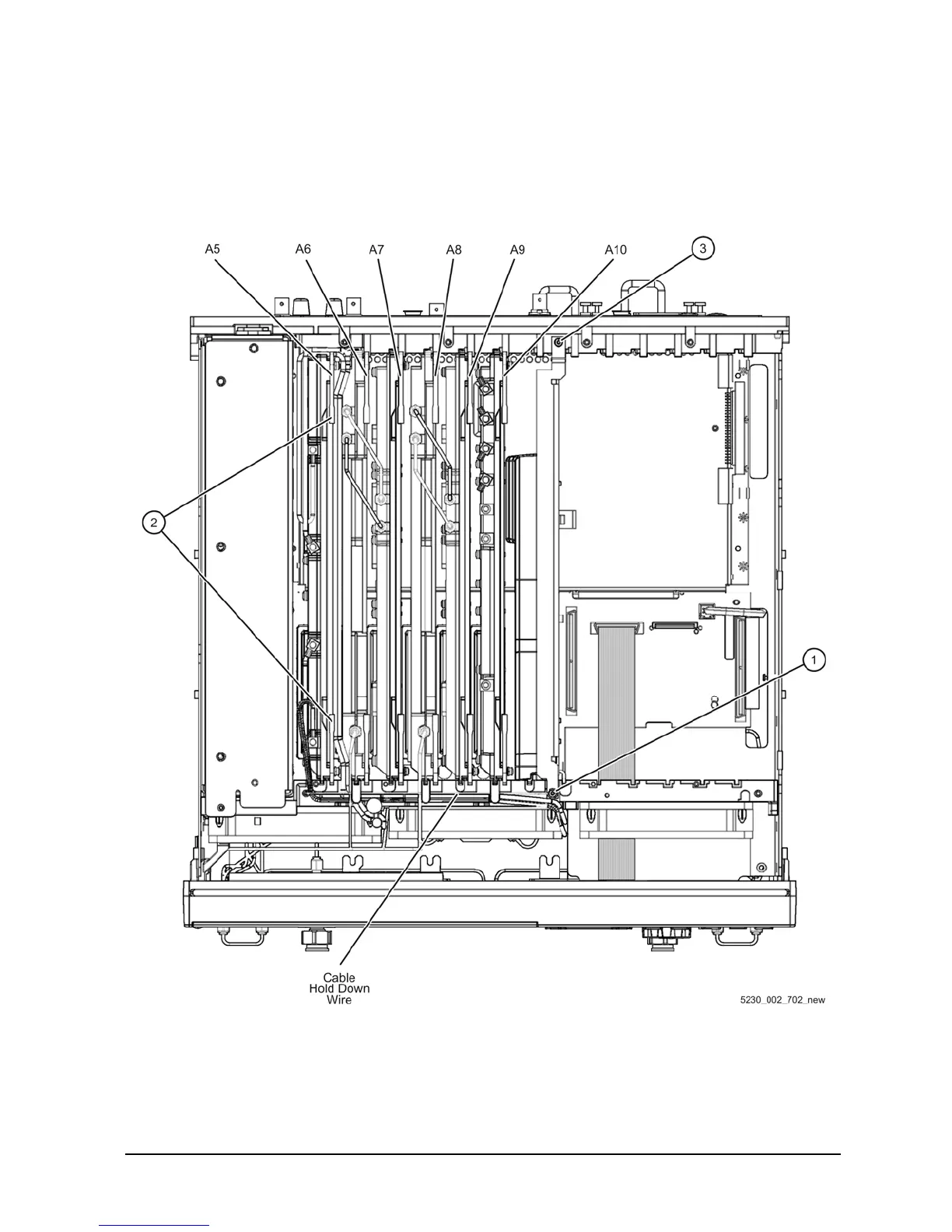

Figure 7-6 A5 through A10 Board Assemblies and Plenum Bracket Removal
