Service Guide N5230-90024 7-37
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
N5230C Removing and Replacing the A21 and A22 Test Port Couplers

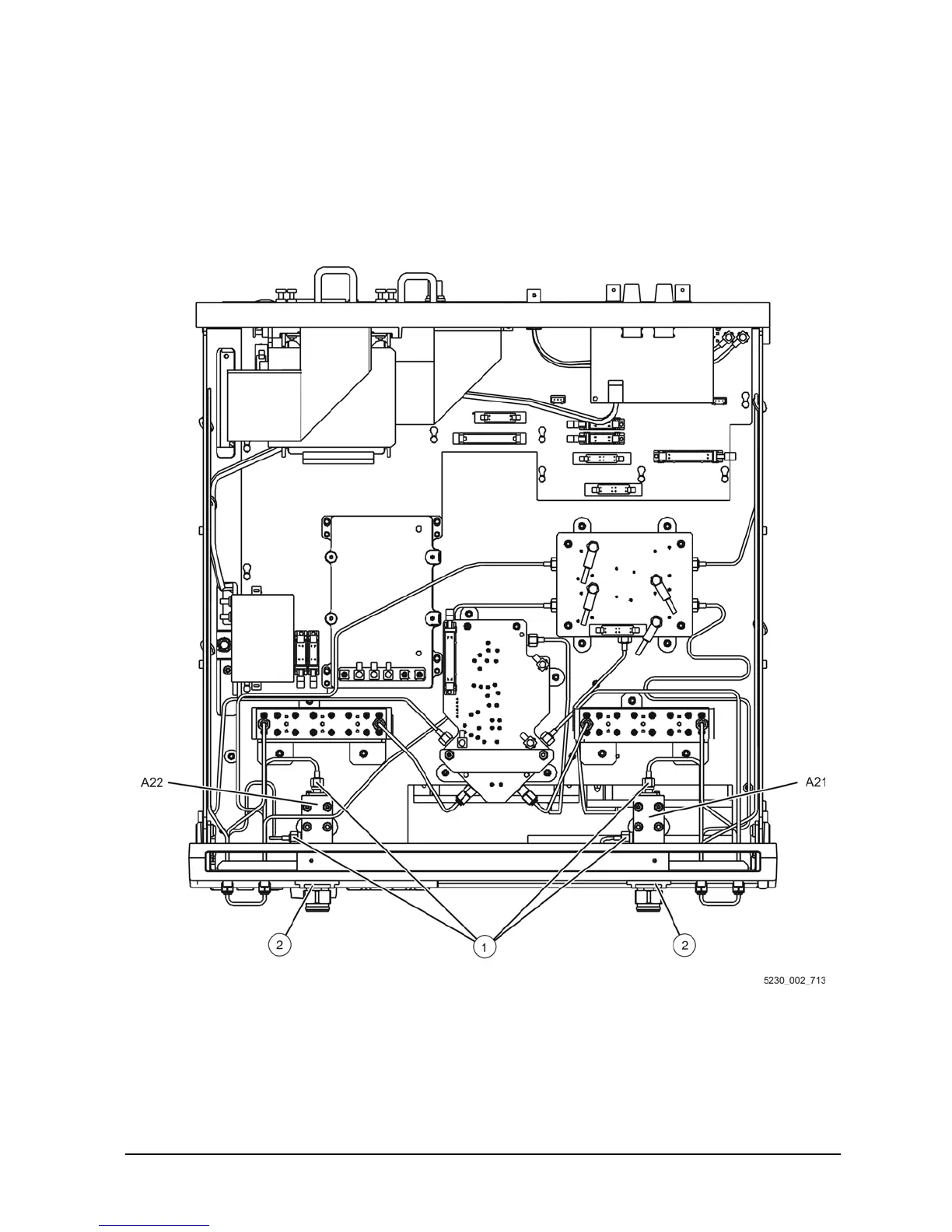

Figure 7-15 A21 and A22 Test Port Couplers Removal (Option 220 analyzers with serial numbers
prefixed MY4640 and above.)
