Agilent Technologies N5230C User Manual

Service Guide N5230-90024 7-49
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
N5230C Removing and Replacing the Midweb and the B1 Fan(s)
Removing the Midweb
Refer to Figure 7-20.
1. Disconnect the power cable (item
①
) for the three fans from the A14 system motherboard.
2. With a T-10 TORX driver, remove the seven midweb mounting screws (item
➁). Lift out the midweb.

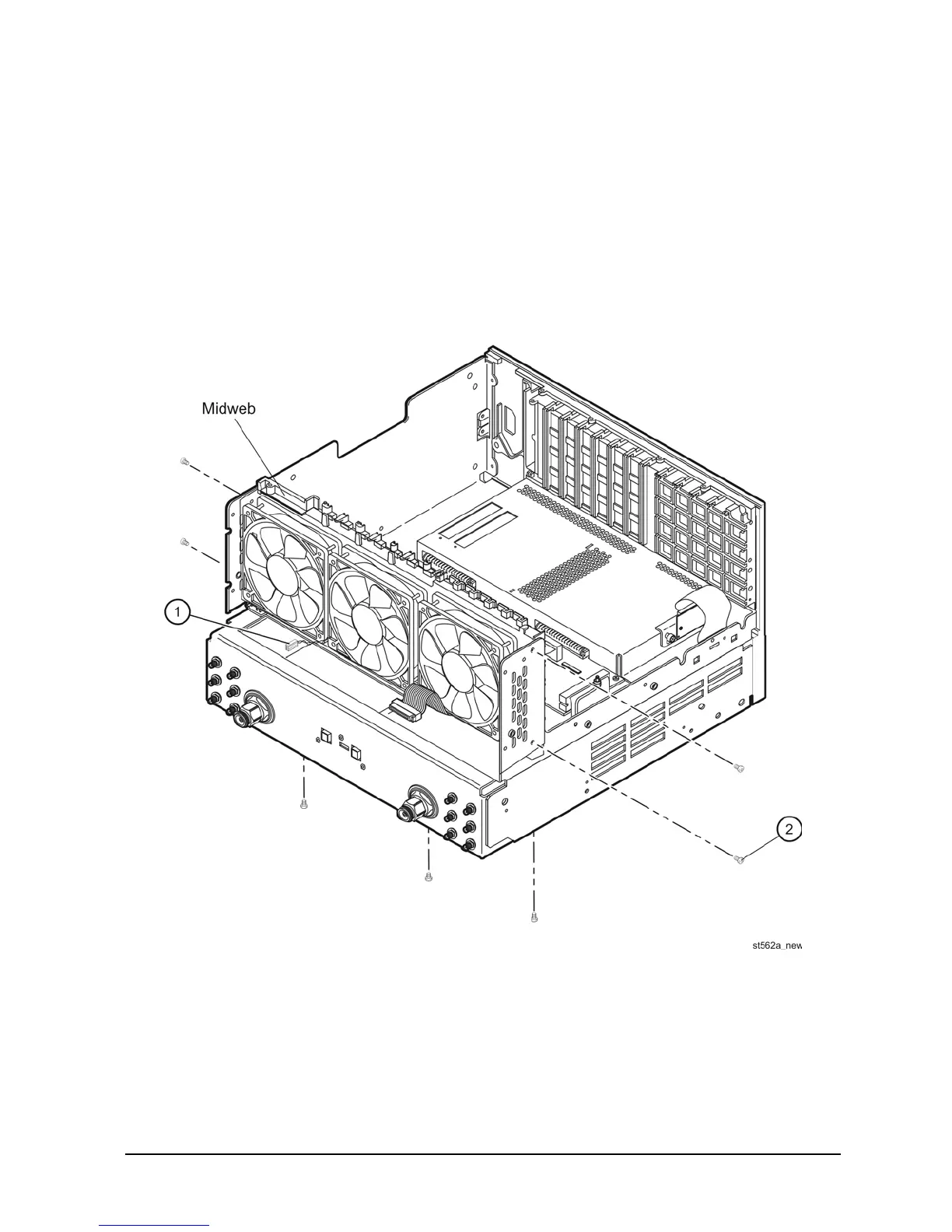

Figure 7-20 Midweb Removal
