3-40 Service Guide N5230-90024
Tests and Adjustments PNA Series Microwave Network Analyzers
Adjustments N5230C

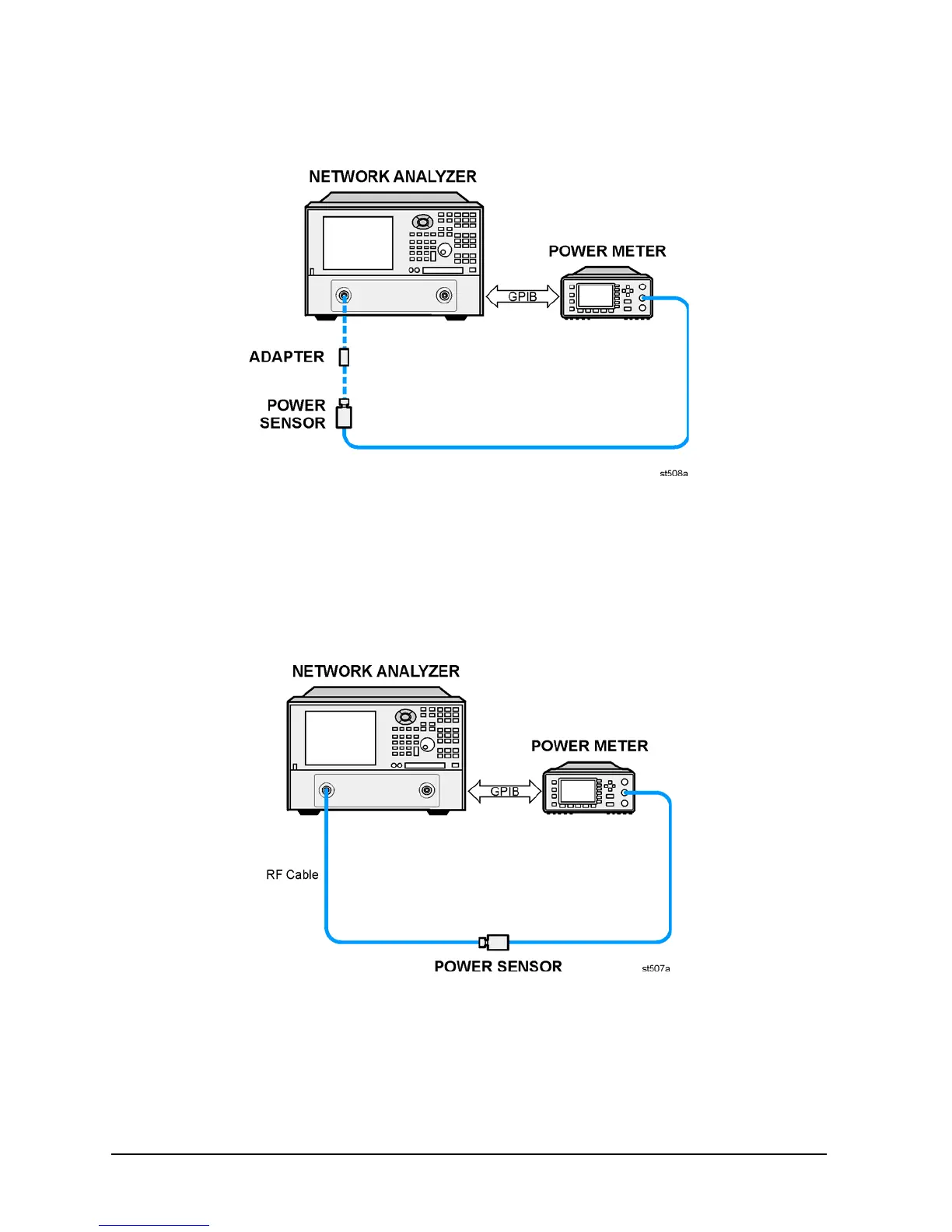

Figure 3-17 Setup 1 for the Receiver Calibration Adjustment
2. On the System menu, point to Service, Adjustments, and then click Receiver Calibration.
3. Ensure the GPIB settings are correct.
4. Click Calibrate, and then follow the instructions as they are displayed.
Figure 3-18 Setup 2 for the Receiver Calibration Adjustment
