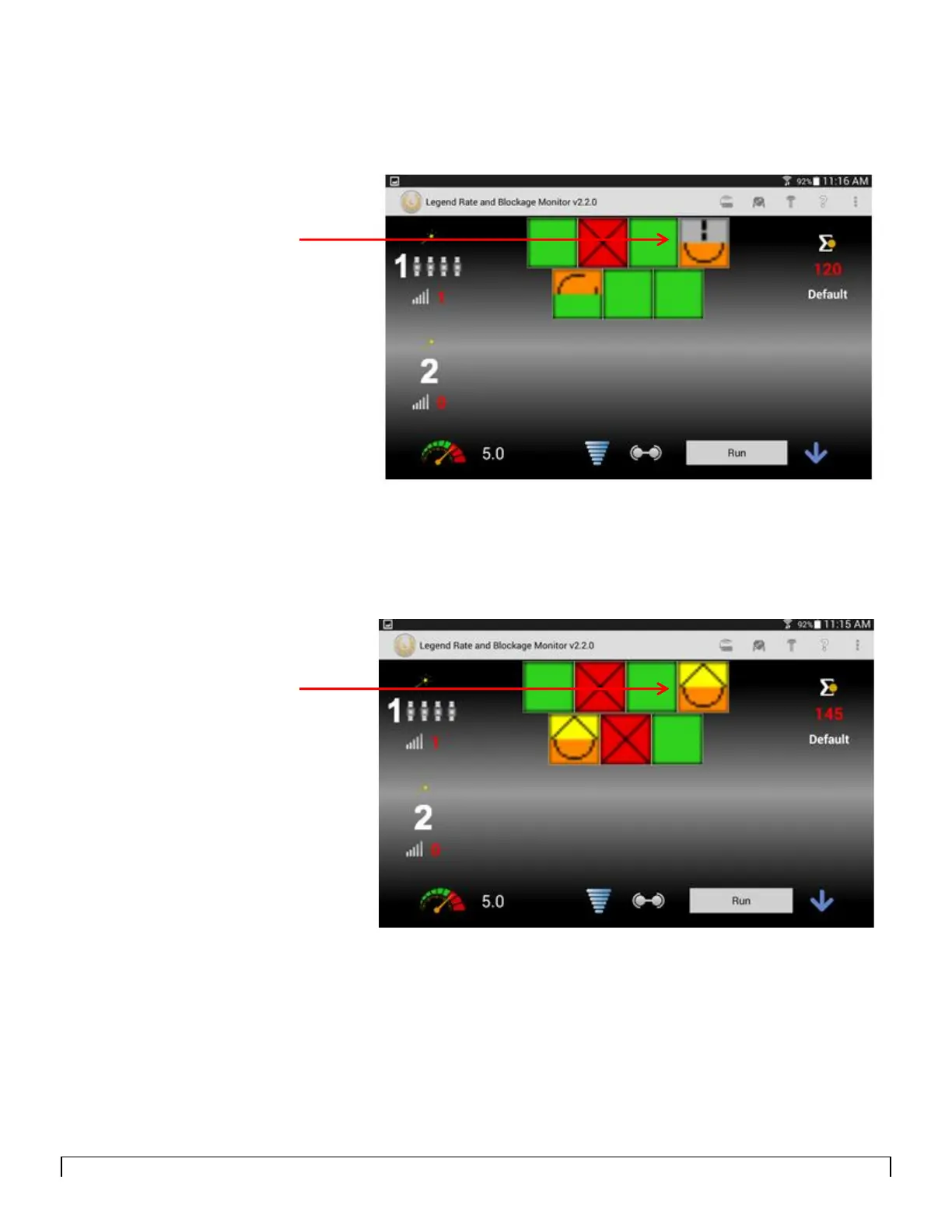

Figure 8-4 is showing a blocked sensor with one disconnect between
sensor four and sensor five. Sensor four needs to be cleaned and
sensor 5 is detecting seed.
Figure 8-4
Figure 8-5 is showing two blocked sensors with one disconnect
between sensor four and sensor five. Sensor four and sensor five are
both showing a High or Low alarm.
Break in Loop 1
Sensor needs
Cleaning
Break in Loop 1
Sensor has High
or Low Rate
