Multiple Disconnects in the System (Communication Error)
When there are multiple cables disconnected in the system you will
see sensors not communicating.
The sensors are not communicating because they are not receiving
power from the system.

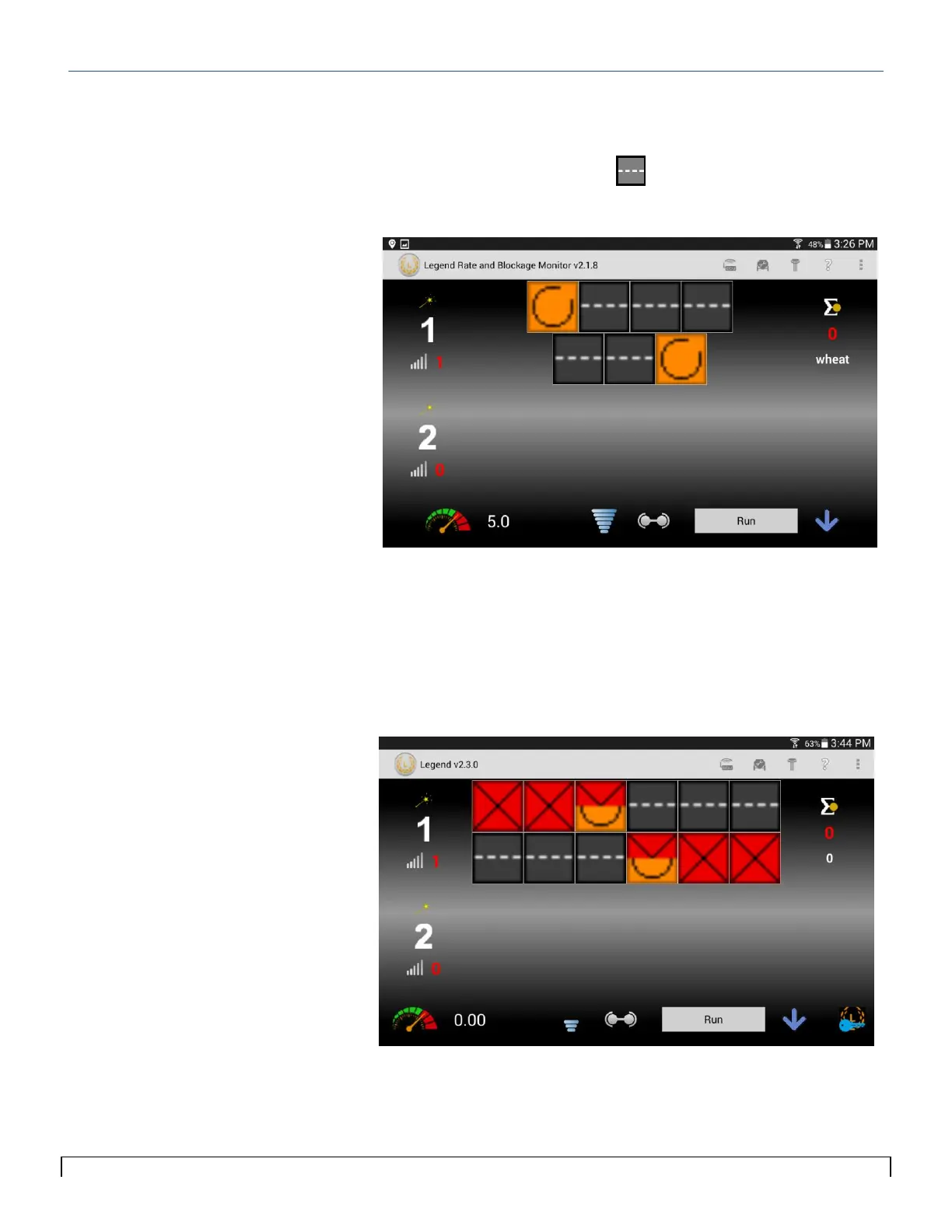

Figure 8-7 is showing that the loop is disconnected from the ECU.
To find out where the cables are disconnected in the loop, tap
anywhere on loop 1 or loop 2 screen area.
Figure 8-8 is showing two cables disconnected in loop 1. The sensors
showing not communicating are because of the communication
errors that are present.
Figure 8-8
Note
Sensors not communicating
does not necessarily mean that
those sensors are faulty. They
are usually not communicating
because of a problem
somewhere else. See
troubleshooting section for more
information.
