ahlmann AS5 User Manual

S06C3-143-13
M
K

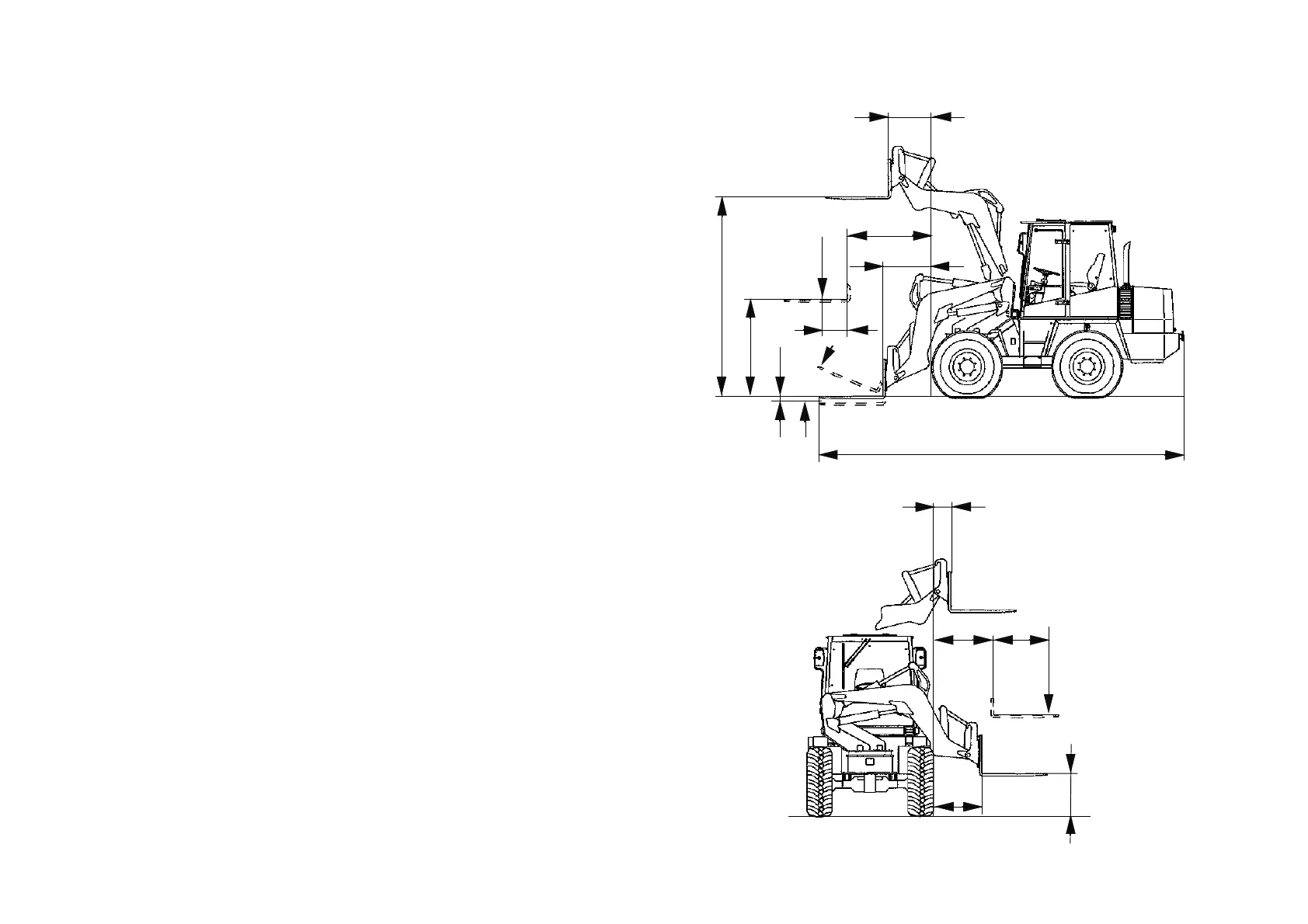

3.4.2 Staplervorsatz/Fork-lift attachment/Gaffel
I
L
N
J
A
H
D
B
C
G
F
E
L
N
3.4.1 Buckets
Bucket type Standard Light Multi-purpose
bucket bucket bucket
Bucket volume m³ 0,85 1,0 0,75
Bucket width mm 2000 2000 2000
Bulk density t/m
3
1,8 1,5 1,8
Dump load
- front kN 31,8 30,5 28,8
- swiveled kN 29,6 28,3 26,9
Tear-out force
according to ISO 8313 kN 48,0 44,8 46,0
Weight kg 295 330 460
A Total length mm 5360 5330 5390
B Max. dumping width
at dump angle 45°
front mm 1550 1600 1570
C Dump angle ° 45 45 45
Max. dump angle ° 45 45 45
D Dumping width
at max. lifting height
and dump angle 45°
front mm 900 950 920
E Depth of feed-in mm 70 65 70
F Dumping height
at max. dumping
width and dump
angle 45° in front mm 1010 950 970
G Dumping height
at max. lifting height
and dump angle 45°
in front mm 2620 2560 2590
H Free lift height mm 2940 2940 2940
I Max. dumping
distance at max.
lifting height and
dump angle 45°
swiveled mm 470 520 490
- Max. dumping
distance at dump
angle 45° swiveled mm 1120 1170 1140
Multi-purpose bucket opened:
Dump width
- front mm 900
- swiveled mm 465
Dumping height mm 3455
