2-2 S06C
2.2 Symbole
HINWEIS

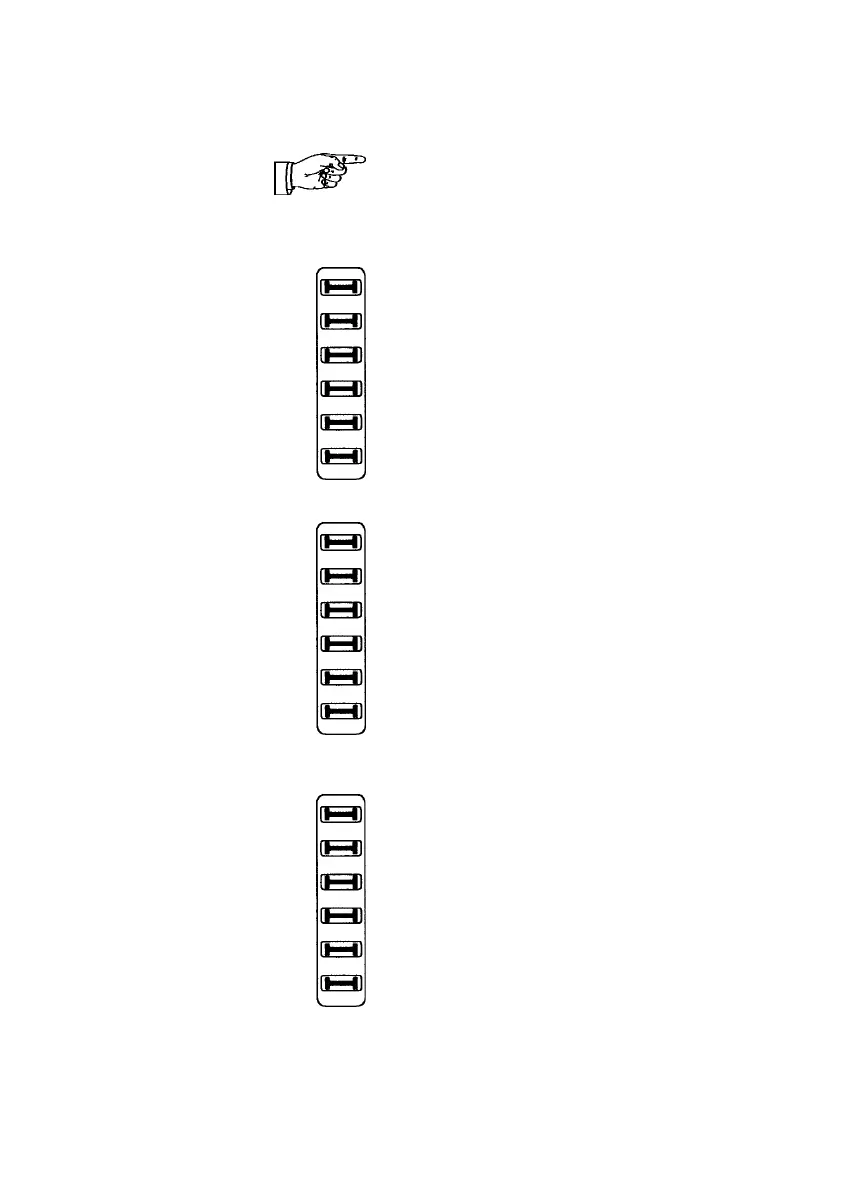

Die Sicherungskästen im Gerät sind
nicht beschildert.
links vorn:
1 Abblendlicht 15 A
2 Fernlichtkontrolle,
Fernlicht 15 A
3 nicht belegt
4 Blinker 7,5 A
5 Bremslicht,
Kontrolleuchten 7,5 A
6 Ölkühler 3 A
links hinten:
1 Instrumentenbeleuchtung,
Standlicht links 7,5 A
2 Schalterbeleuchtung,
Standlicht rechts 7,5 A
3 Standheizung (SA) 25 A
4 Warnblinker 15 A
5 Rundumkennleuchte (SA),
Innenbeleuchtung 10 A
6 Signalhorn, Steckdose 20 A
rechts:
1 Fahrtrieb 7,5 A
2 Arbeitshydraulik,
Zusatzhydraulik,
Schwimmstellung,
Hubwerksfederung (SA),
Kehrbesen (SA) 20 A
3 Arbeitsscheinwerfer 20 A
4 Heizung, Gebläse,
Heckscheibenheizung 30 A
5 Wischer/Wascher
vorn und hinten 20 A
6 Motorabsteller 5 A
SA = Sonderausstattung
