ahlmann AS5 - Page 95

S06C3-93-8
3.3.1 Buckets
Bucket type Standard Light Multi-purpose
bucket bucket bucket
Bucket volume m³ 0,65 0,85 0,55
Bucket width mm 1870 2000 1870
Bulk density t/m
3
1,8 1,35 1,8
Dump load
- front kN 23,9 22,9 22,5
- swiveled kN 24,2 23,0 22,8
Tear-out force
according to ISO 8313 kN 44,0 39,2 46,7
Weight kg 250 295 430
A Total length mm 5310 5290 5440
B Max. dumping width
at dump angle 45°
front mm 1550 1610 1520
C Dump angle ° 45 45 45
Max. dump angle ° 45 45 45
D Dumping width
at max. lifting height
and dump angle 45°
front mm 900 960 870
E Depth of feed-in mm 125 105 125
F Dumping height
at max. dumping
width and dump
angle 45° in front mm 1010 950 1030
G Dumping height
at max. lifting height
and dump angle 45°
in front mm 2620 2550 2650
H Free lift height mm 2890 2890 2890
I Max. dumping
distance at max.
lifting height and
dump angle 45°
swiveled mm 450 510 420
- Max. dumping
distance at dump
angle 45° swiveled mm 1100 1160 1070
Multi-purpose bucket opened:
Dump width
- front mm 965
- swiveled mm 515
Dumping height mm 3400

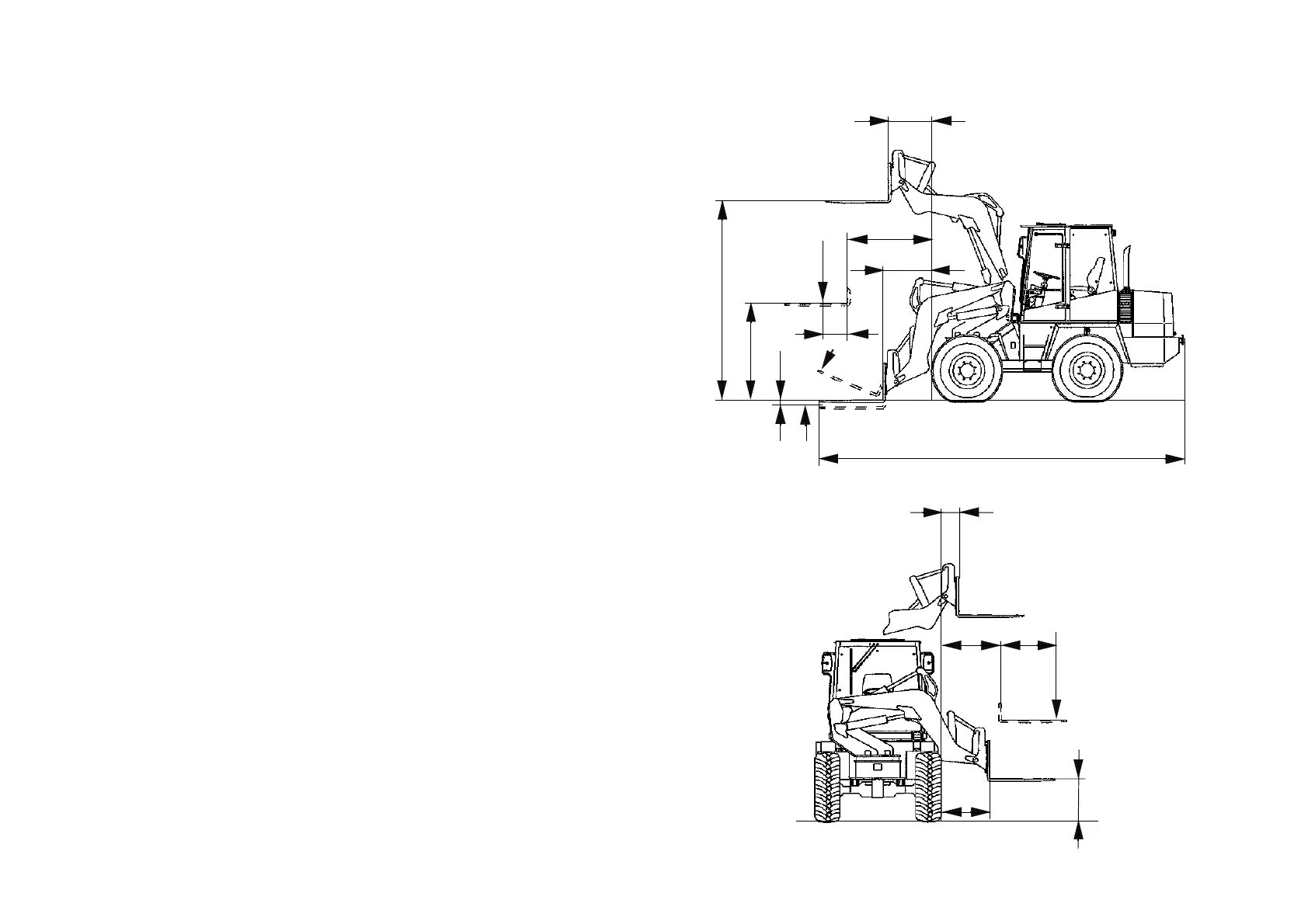

3.3.2 Staplervorsatz/Fork-lift attachment/Gaffel
M
K
I
L
N
J
A
H
D
B
C
G
F
E
L
N
