Airzone RADIANT365 - Airzone Air to Water HP Gateway (AZX6 GAW XXX); Airzone Temperature Metallic Probe in Sheath (AZX6 SONDPROTECT); General Requirements

12

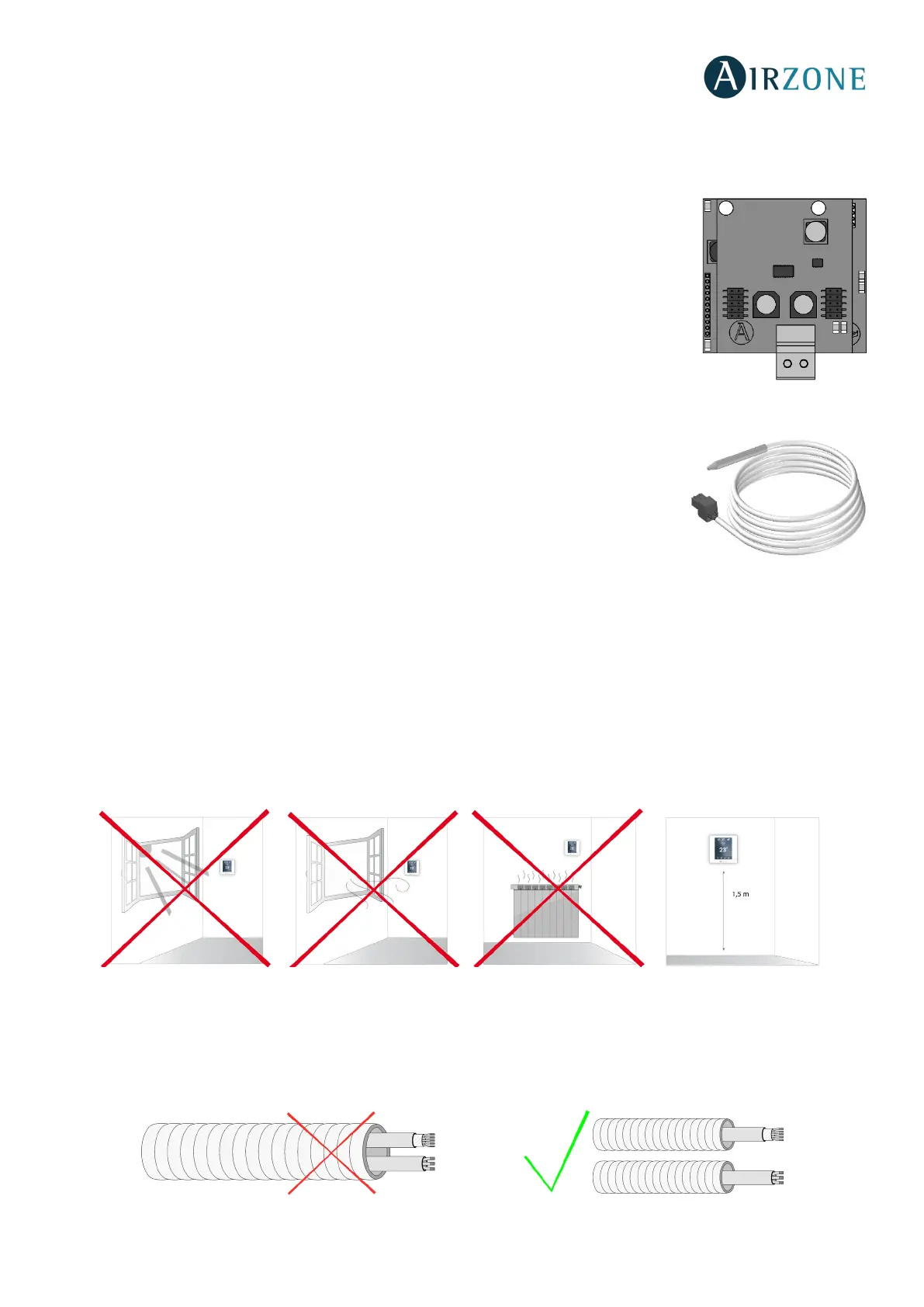

AIRZONE AIR TO WATER HP GATEWAY (AZX6GAW XXX)
Communication gateway between Airzone system and Air to water units. Powered through the AC unit bus of the production
control board (AZX6CCPGAWI).
Features:
• Two-way communication of the basic control parameters depending on the demand of the
Airzone control system.
• Reading of errors of the controlled unit.
• Imposes water production temperature based on the demand.
Important: Only available for installations with AZX6CCPGAWI.
AIRZONE TEMPERATURE METALLIC PROBE IN SHEATH (AZX6SONDPROTECT)
Temperature probe in metal sheath.
Functionalities:
• DEW Protection probe for the Airzone control module of radiant elements
GENERAL REQUIREMENTS
Strictly follow the directions outlined in this manual:
• The system must be installed by a qualified technician.
• Verify that the units to be controlled have been installed according to the manufacturer's requirements and operate
correctly before installing the Airzone System.
• Locate and connect all the devices of the installation in accordance with the electronic regulations in force.
• Verify that the air conditioning installation to be controlled is in accordance with the regulations in force.
• It is necessary to use a Blueface Thermostat to have all the features of the Airzone system.
• Follow these recommendations to locate the thermostats:
• Perform all the connections with total abscense of power suppliance.
• In order to connect the elements of the system, use Airzone cable: shielded twisted pair cable formed by 4 wires: 2x0,22
mm
2
+ 2x0,5mm
2
(AWG 20 – 4 wired).
• Do not place the system bus close to high power lines, fluorescent lights, LED lamps, motors, etc. It might cause
interference on the communications.
