AIRZONE 3 SPEEDS/STAGES DEHUMIDIFIER CONTROL MODULE (AZRA6CMOD3V)

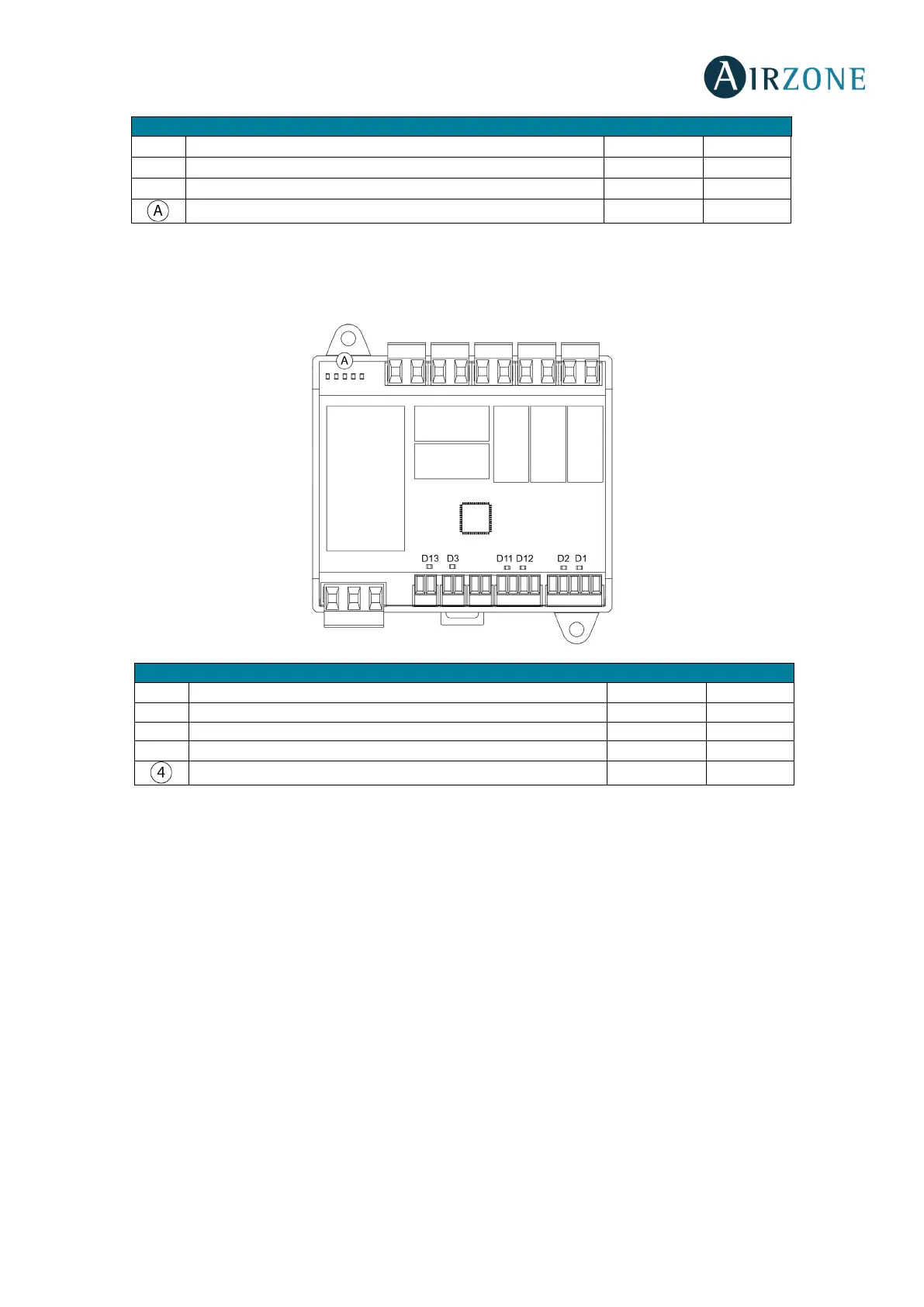

Airzone control modules incorporate LEDS that detect malfunctions.
Data reception from Airzone connection bus
Data transmission from Airzone connection bus
Leds of relay state Blinking Green
AIRZONE BLUEFACE AND THINK THERMOSTATS (AZRA6BLUEFACEC / AZRA6THINK [C/R])
Blueface and Think Thermostats Warnings
Thermostat displays all the system warnings on the screensaver. If there is any error, it will be displayed on the screensaver, on
the main screen and on “About errors”, in user settings.
• Anti-freezing: It will be only displayed when it is activated. (See Zone settings – Blueface thermostats).
• Active dew protection. It indicates there is a risk of condensation in the radiant stage and the air stage has been
activated to avoid its creation.
• Dew. This alert warns of a risk of water condensation and the zone has been shut off, turning on the dehumidifier if it
has been installed. Only available in systems with radiant stages in cooling mode.
• Lite dew protection. (only Blueface) It indicates there is a risk of condensation in the radiant stage and the air stage
has been activated to avoid its creation in the Lite zone.
• Dew Lite. (only Blueface) It indicates there is a risk of condensation and the zone where the Lite thermostat is located
has been turned off. Press the icon to know which zone is affected.
• Battery Lite (only Blueface). Low battery warning. Informs about the involved zone when the icon is pressed.
• Battery (only Think wireless). Low battery warning.
Data transmission and reception from Airzone connection bus
LEDs of relay state Switches Green
