SYSTEM ELEMENTS

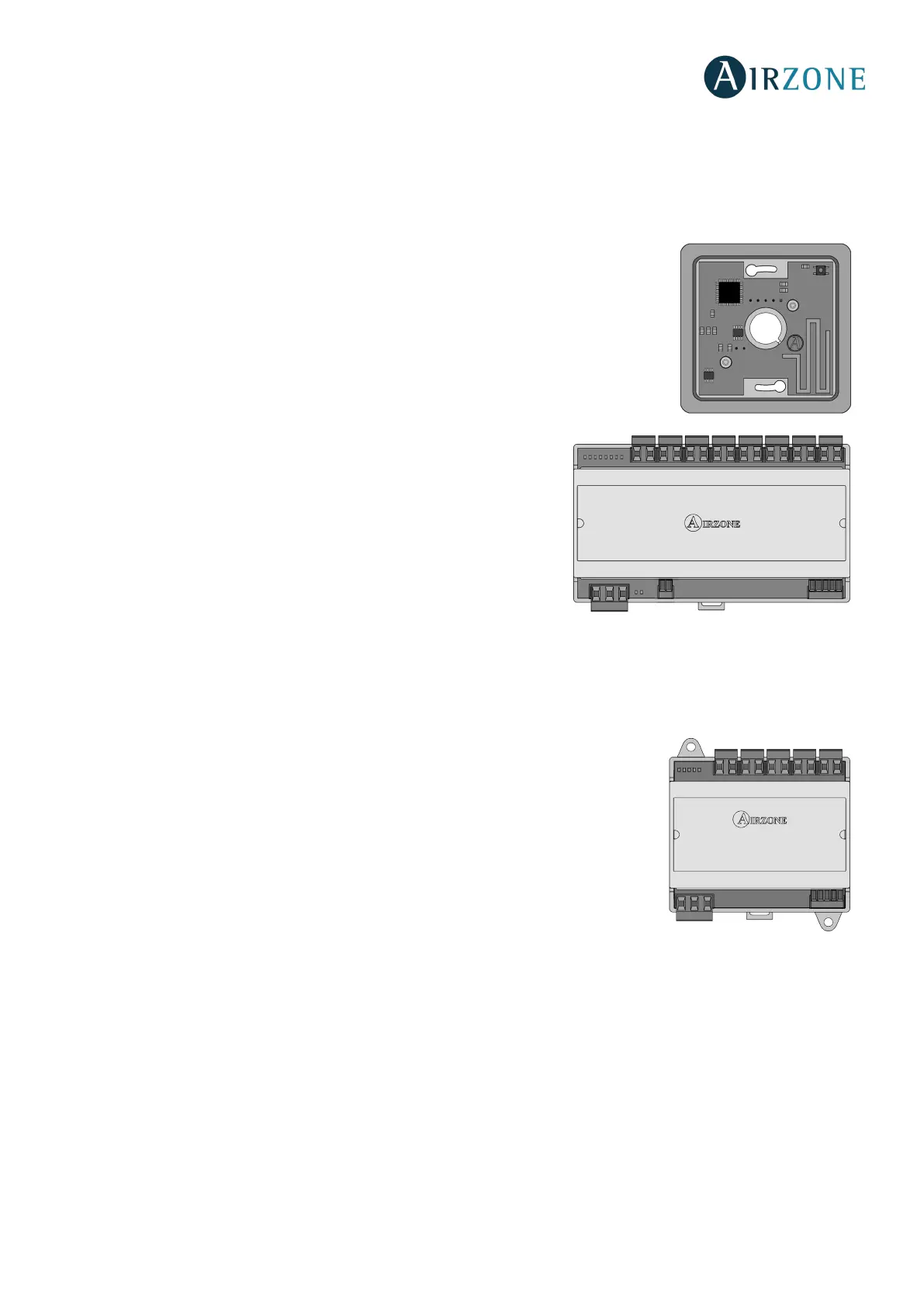

AIRZONE RADIANT365 MAIN CONTROL BOARD (AZRA6RADIANT)
Configurable electronic board which manages the system through wired and wireless devices. Power supplied through the
control module of radiant elements (AZRA6OUTPUT8Z). Device box (65 x 65 mm / Ø65 mm) mounting.
Functionalities:
• Control and management of the thermostats, up to 6 zones (8 zones through
AZX6CCP).
• Communication with units of integral control of the installation.
• Communications with other external control systems through integration bus.
AIRZONE CONTROL MODULE OF RADIANT ELEMENTS (AZRA6OUTPUT8Z)
Control Module of Radiant Elements for cooling/heating stages.
Communications through system Airzone connection bus. Externally
powered at 110/230 Vac. Din rail mounted.
Functionalities:
• 6 Relay outputs available for cooling/heating demand management
up to 6 zones.
• 2 Relay outputs available for cooling/heating demand management.
Configurable as zone relay (AZX6CCP needed).
• 1 analog input for temperatura probe.
AIRZONE 3 SPEEDS/STAGES DEHUMIDIFIER CONTROL MODULE (AZRA6CMOD3V)
Dehumidifier control module for underfloor radiant heating installations. Control up to
three fan-speeds/stages. Externally power supplied at 110/230 and wired communications.
Mounted on DIN rail or on wall.
Functionalities:
• Two control relays for On/Off.
• Three control relays for fan-speed/stages selection.
• Automatic speed selection according to the number of zones on dehumidification
demand.
