Domotic bus connector
The domotic bus allows you to interconnect multiple systems in order to control them through Airzone control peripherals or
to integrate them into a superior control network. These are the elements that can be connected:
- Webserver Cloud HUB (AZX6WSPHUB)
- Airzone Production Control Board (AZX6CCP/AZX6CCPGAWI).
- Airzone Supermaster controller (AZX6CSMASTER [S/E]).

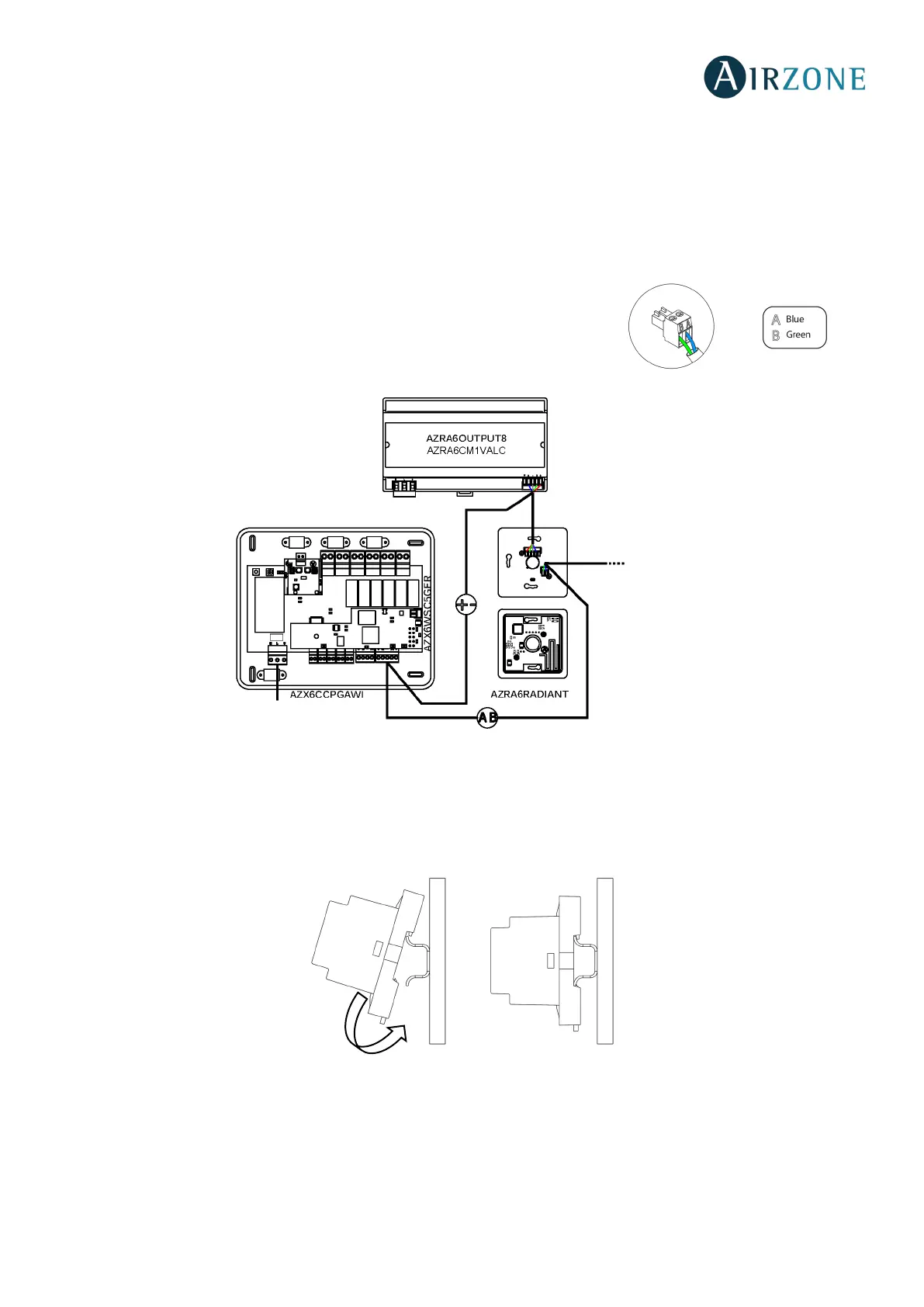

It has a 2-pin terminal for the domotic bus connection. This system can only be
connected by bus. Attach the wires with the terminal screws following the color code
(Fig. 5).
AIRZONE CONTROL MODULE OF RADIANT ELEMENTS (AZRA6OUTPUT8Z)
Assembly
The Airzone Control Module of Radiant Elements is mounted on DIN rail (Fig. 6). It is externally powered at 110/230 Vac. Location
and installation of the module must comply the current electronic rules.
Fig. 6
Note: To take the module away, pull the reed down to release it.
