Important: According to the current local and national regulations, it is mandatory to add a switch (or other element to
disconnect the system) to the external supply wiring so that a constant separation between poles is guaranteed. The system
will restart automatically if the supply is eventually turned off.
AIRZONE 3 SPEEDS/STAGES DEHUMIDIFIER CONTROL MODULE (AZRA6CMOD3V)
Assembly

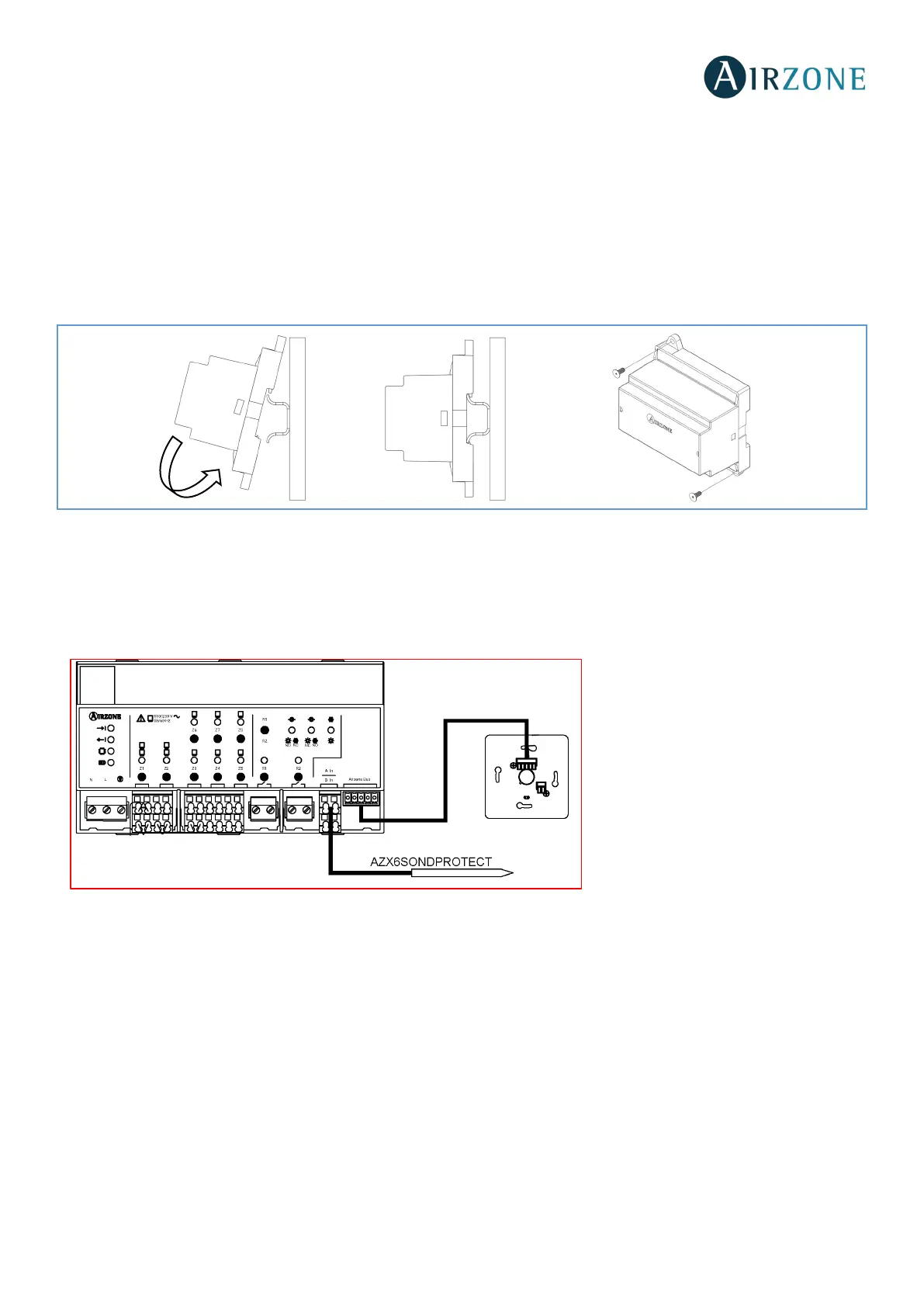

The Airzone Control Module of Radiant Elements is mounted on DIN rail (Fig. 10). It is externally powered at 110/230 Vac.
Location and installation of the module must comply the current electronic rules.
Fig. 10
Note: To take the module away, pull the reed down to release it.
Connection
The module is a device which connects to the Airzone connection bus of the main board (Fig. 11).
Control Z1-8 relay specs: I
max
= 5 A at 110/250 Vac, voltage-free.
Note that to control elements with a greater power, it is recommended to use contactors in accordance with the power
required. Remember to connect the neutral connector directly from the circuit to the element to be controlled.
Operation of the relays:
