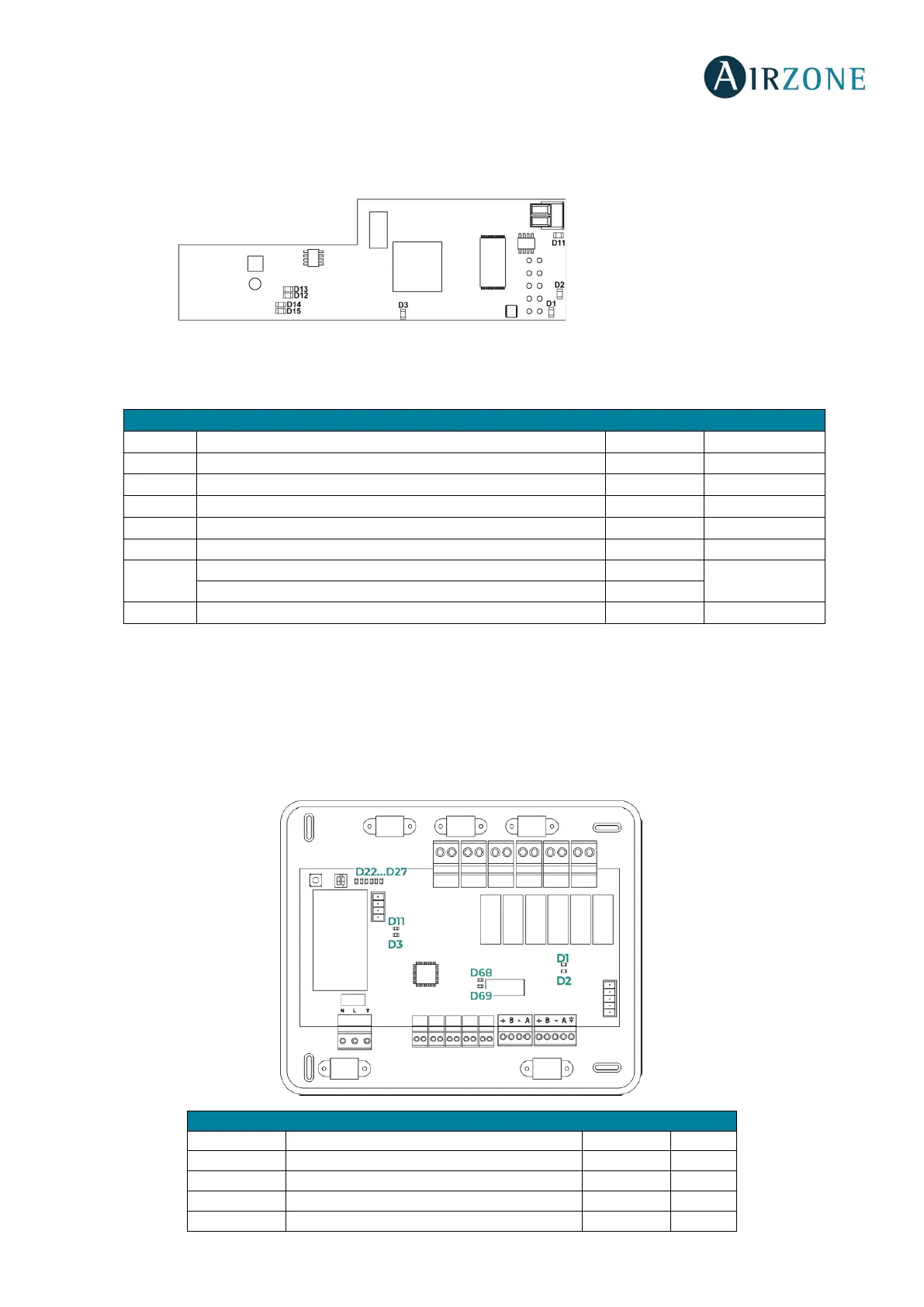

WEBSERVER AIRZONE CLOUD (AZX6WEBSCLOUDC/AZX6WSC5GER)
Airzone Cloud web servers incorporate LEDs that detect malfunctioning.
AIRZONE HYDRONIC PRODUCTION CONTROL BOARD (AZX6CCPGAWI)
Airzone cloud production control board incorporate LEDs that detect malfunctioning.
Meaning
D1
Receiving data from domotic bus
Blinking
Green
D2
Transmitting data from domotic bus
Blinking
Red
D3
Microproccesor performance
Blinking
Green
D11
Power supply
Solid
Red
D22…D27
Leds of relay state
Switches
Green
AZX6WSC5GER
Meaning
D1
Data transmission from domotic bus (input and output)
Blinking
Red
D2
Data reception from domotic bus (input and output)
Blinking
Green
D3
Microprocessor performance
Blinking
Green
D10
Connected to the Internet
Blinking
Green
D11
Network data transmission
Blinking
Red
D12
Network data reception
Blinking
Green
D13
Configured as IP address through DHCP
Switch on
Red
Configured as Fixed IP address
Switch off
D15
Power supply
Solid
Red
