SELF-DIAGNOSE

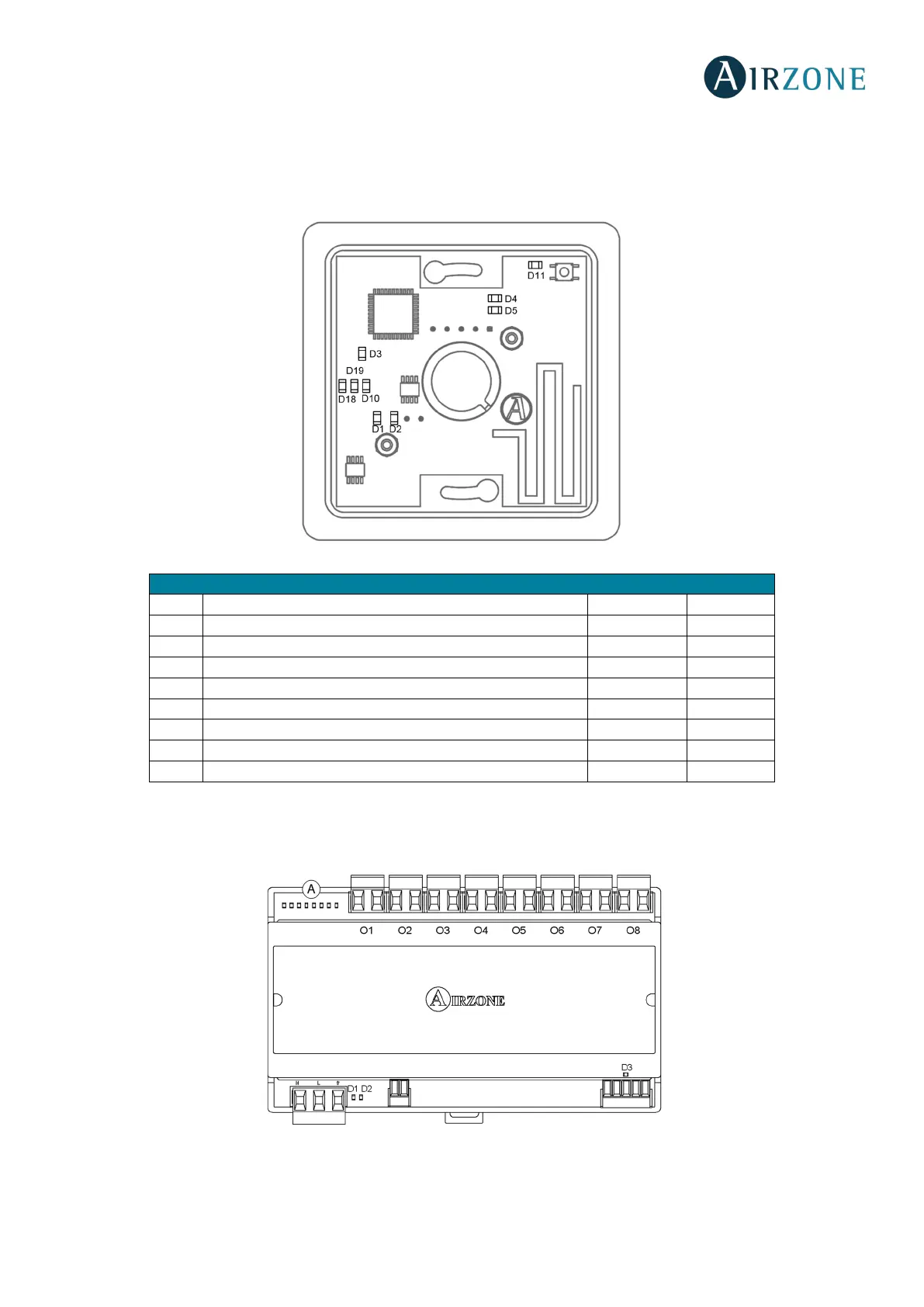

AIRZONE RADIANT365 MAIN CONTROL BOARD (AZRA6RADIANT)
Airzone RadianT365 Main Control Boards have integrated LEDs that detect unusual operations.
AIRZONE CONTROL MODULE OF RADIANT ELEMENTS (AZRA6OUTPUT8Z)
Airzone control modules incorporate LEDS that detect malfunctions.
Meaning
D1
Data reception from automation bus
Blinking
Green
D2
Data transmission from automation bus
Blinking
Red
D3
Main control board activity
Blinking
Green
D4
Data transmission from Airzone connection bus
Blinking
Red
D5
Data reception from Airzone connection bus
Blinking
Green
D10
Wireless data packets reception
Switches
Green
D11
Main control board power supply
Solid
Red
D18
Associated element
Solid
Green
D19
Association channel: active
Solid
Red
