1.3 Names of parts and their functions
This section describes parts by name and function.

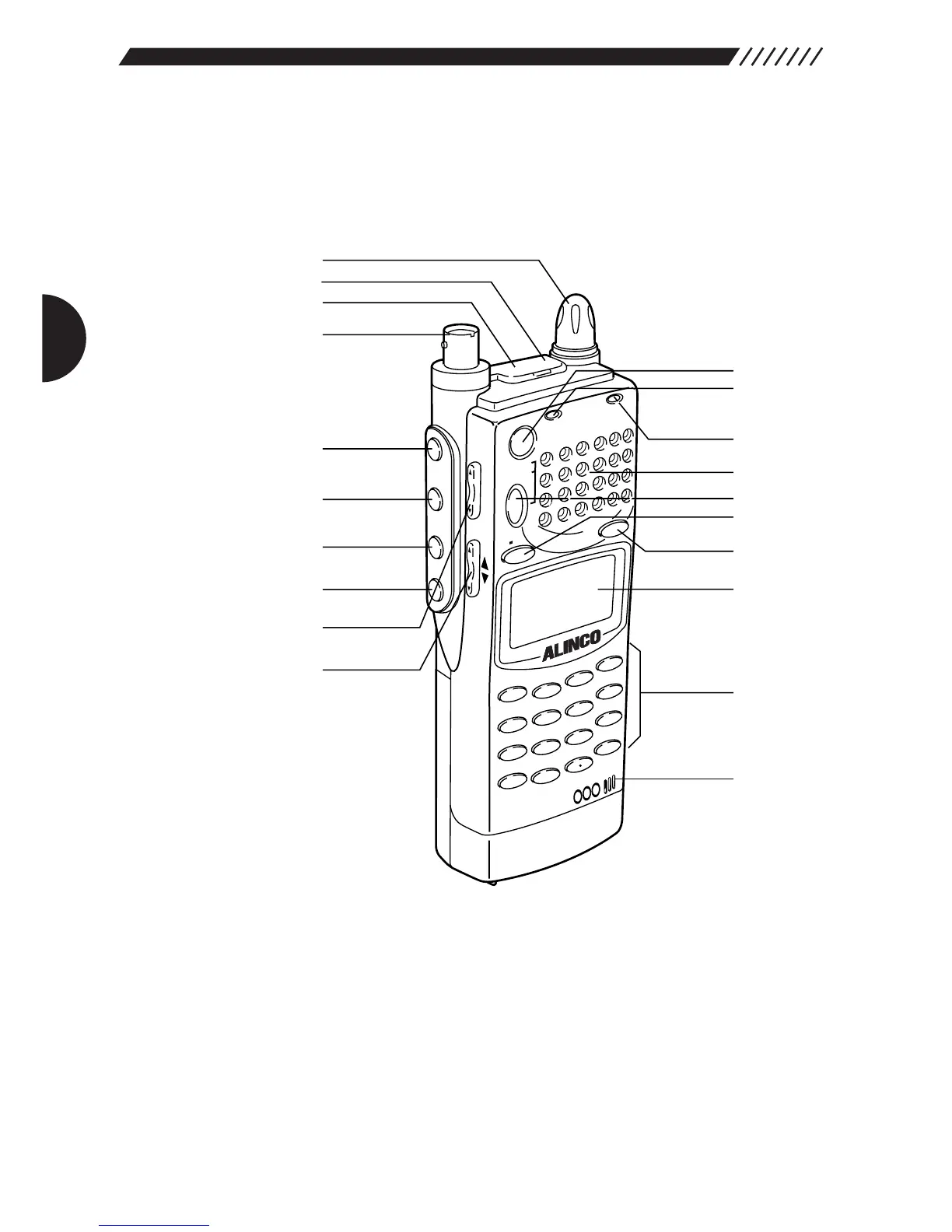

1.3.1 Top, front and left side panels
1. Dial Use to switch frequency and memory channel, to
adjust the audio volume and squelch level, and to
make other settings.
2. CLN terminal Use to clone settings between two DJ-X2000s, and
to connect with the PC editor.
3. SP terminal Connect an external speaker with amplifier or
earphone here. Stereo FM radio can be received in
stereo when stereo speakers or stereo earphones
are connected.
4. Antenna connector BNC connector. Attach the included antenna here.
