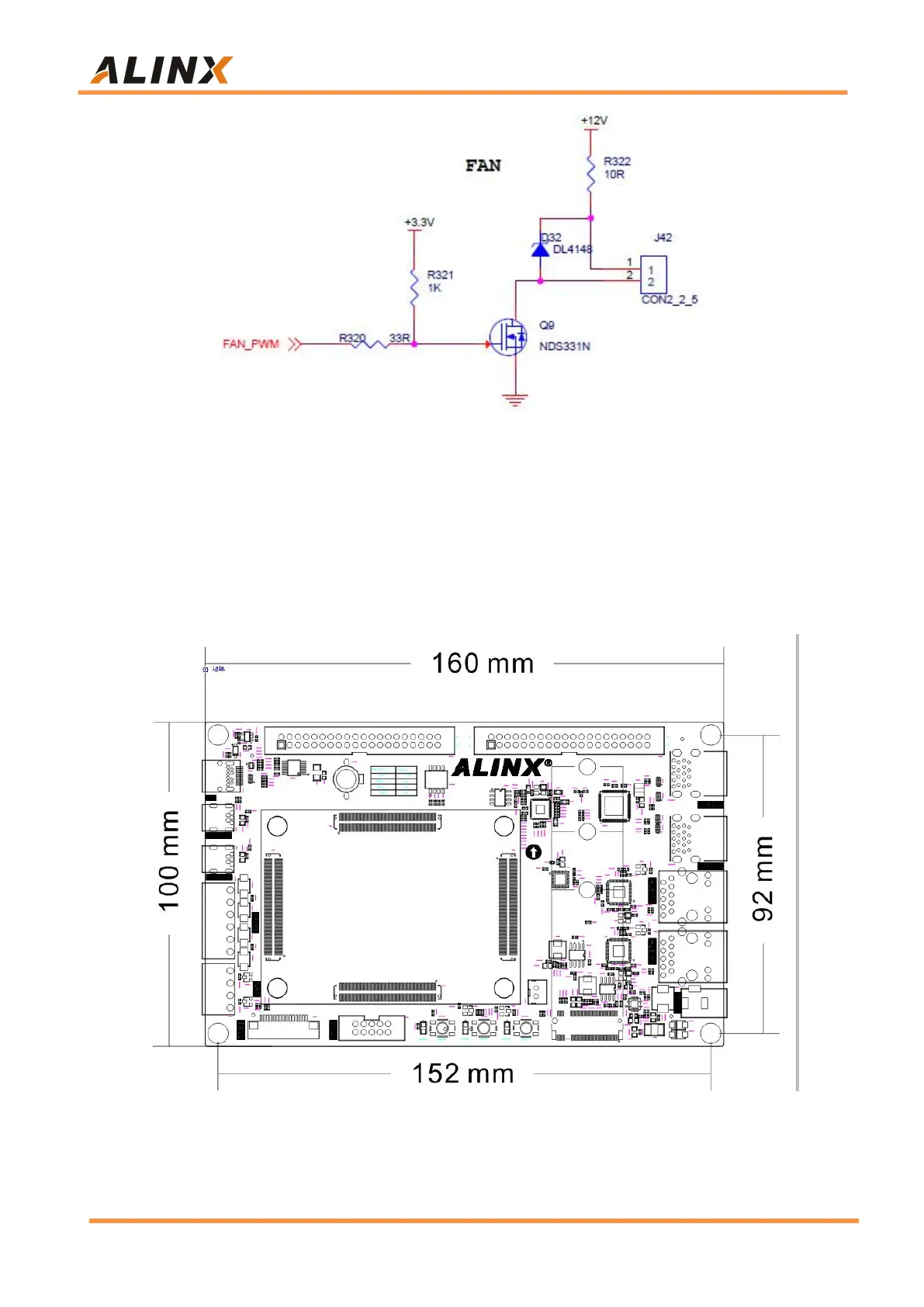

Figure 3-19-1Fan Design Schematic
The fan has been screwed to the AXU2CGB-E FPGA development board
before leaving the factory. The power of the fan is connected to the socket of
J24. The red is positive and the black is negative.
Part 3.20: Carrier Board Size Dimension
Figure 3-20-1: Top View
