In addition, the VCCIO power supply of BANK65 and BANK66 of
XCZU2CG chip is provided by the carrier board, which is convenient for users
to modify, but the maximum power supply cannot exceed 1.8V.
Part 2.9: ACU2CG Core Board Form Factor

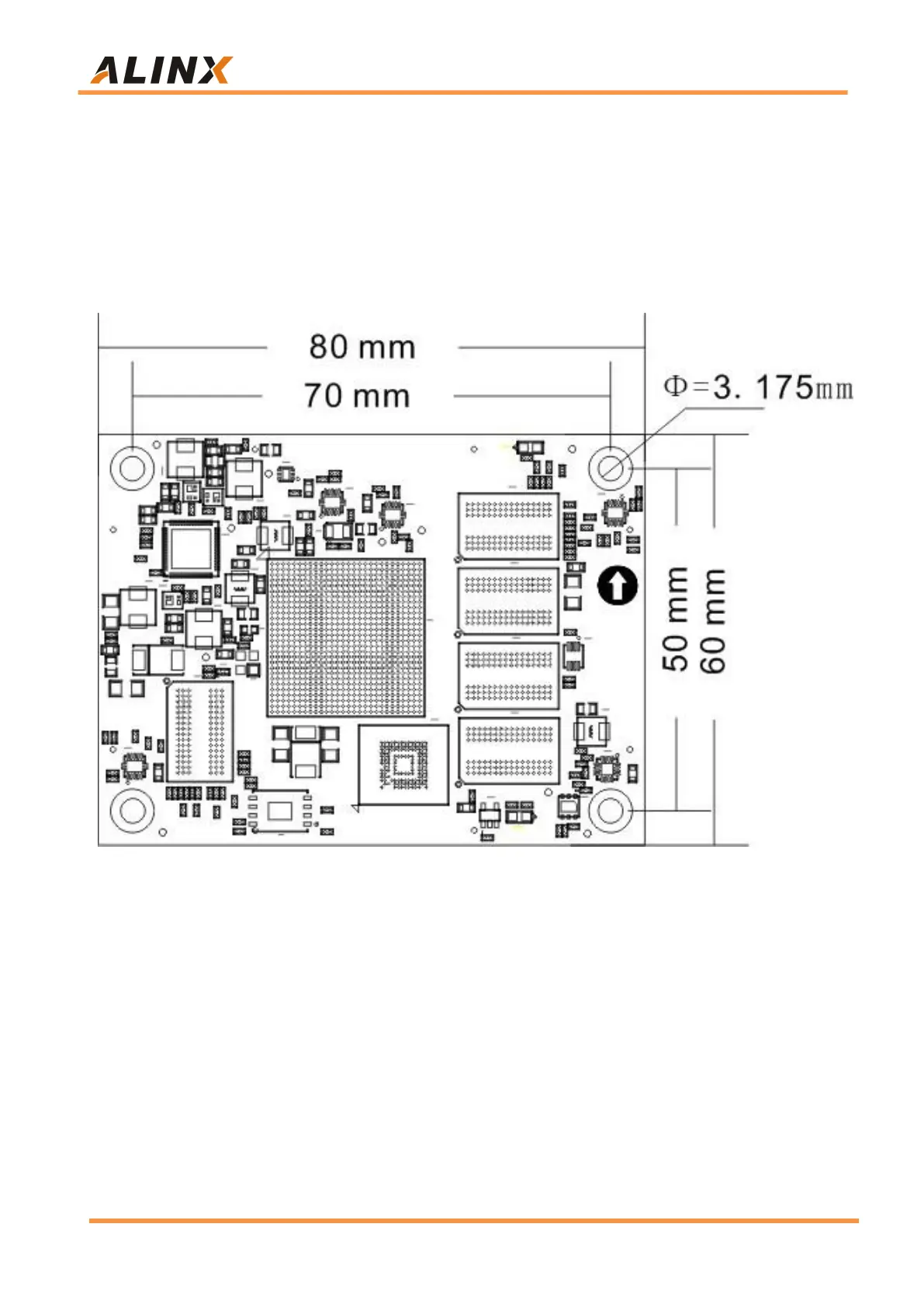

Figure 2-9-1: ACU2CG Core Board Form Factor
Part 2.10: Board to Board Connectors pin assignment
The core board has a total of four high-speed expansion ports. It uses four
120-pin inter-board connectors (J29/J30/J31/J32) to connect to the carrier
board.
The connectors used is Panasonic AXK5A2137YG, and the corresponding
connector model in the carrier board is Panasonic AXK6A2337YG. Among
